Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FMCA2714-50CMCOAX CBL BNC TO SMA |
2,166 |
|
- |
- | Bag | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-223 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | - | -40°C ~ 80°C | - | - |
|
|
FMCA2695-50CMCOAX CBL BNC TO N-TYPE |
2,481 |
|
- |
- | Bag | Active | BNC to N-Type | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-223 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | - | - | - | - |
|
|
FMCA2675-100CMCOAX CBL BNC TO SMA |
4,909 |
|
- |
- | Bag | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-223 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | - | - | - | - |
|
|
FMCA2692-12COAX CBL BNC TO SMA |
4,103 |
|
- |
- | Bag | Active | BNC to SMA | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | RG-223 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | - | - | - | - |
|
|
FMCA2693-48COAX CBL BNC TO N-TYPE |
4,788 |
|
- |
- | Bag | Active | BNC to N-Type | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-223 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | - | -40°C ~ 80°C | - | - |
|
095-850-218-036COAX CBL BNC TO HD-BNC |
2,629 |
|
Datasheet |
- | Bag | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 4694R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
|
095-902-581-010COAX CBL SMA TO SMP |
1,783 |
|
Datasheet |
- | Bag | Active | SMA to SMP | SMA Plug | Male | Free Hanging (In-Line) | - | SMP Plug, Right Angle | Male | Free Hanging (In-Line) | - | 10.000" (254.00mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | - | -65°C ~ 165°C | - | - |
|
095-850-233-018COAX CBL BNC TO BNC |
4,029 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
|
RF058-05SR3-05SR3-2000COAX CBL RP-TNC TO RP-TNC |
1,795 |
|
Datasheet |
RF058 | Bulk | Active | RP-TNC to RP-TNC | RP-TNC Plug | Female | Free Hanging (In-Line) | - | RP-TNC Plug | Female | Free Hanging (In-Line) | - | - | RG-58 | - | - | 50 Ohms | 1 GHz | Violet | - | -50°C ~ 90°C | - | - |
|
095-850-293-036COAX CBL BNC TO BNC |
3,887 |
|
Datasheet |
BNC | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-58 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
175101-21-48.00COAX CBL N-TYPE TO N-TYPE |
1,053 |
|
Datasheet |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 195 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|
|
LCCA30726/WH-FT3COAX CBL BNC TO HD-BNC |
4,605 |
|
- |
- | Bag | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 4694R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | White | - | -30°C ~ 75°C | - | - |
|
|
FMCA2602/BL-36COAX CBL BNC TO HD-BNC |
2,867 |
|
- |
- | Bag | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 4694R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Blue | - | -30°C ~ 75°C | - | - |
|

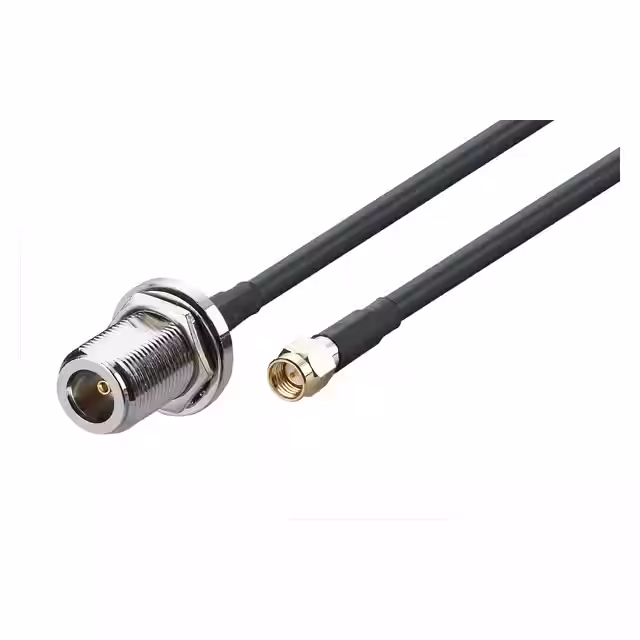

CAB.953COAX CBL SMA TO N-TYPE |
3,521 |
|
Datasheet |
- | Bag | Active | SMA to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | ULC-200 | - | - | 50 Ohms | 1.3 GHz | Black | Shielded | 105°C | - | - |
|
|
LCCA30725/BK-FT6COAX CBL BNC TO BNC |
4,003 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 4694R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Black | - | -30°C ~ 75°C | - | - |
|
|
LCCA30725/GR-FT6COAX CBL BNC TO BNC |
4,453 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 4694R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Green | - | -30°C ~ 75°C | - | - |
|
|
LCCA30857/BK-FT6COAX CBL HD-BNC TO HD-BNC |
1,254 |
|
- |
- | Bag | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1855A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Black | - | -30°C ~ 75°C | - | - |
|
|
LCCA30857/GR-FT6COAX CBL HD-BNC TO HD-BNC |
3,915 |
|
- |
- | Bag | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1855A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Green | - | -30°C ~ 75°C | - | - |
|
095-725-117-009COAX CBL SMP TO SMP |
2,813 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMP Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.000" (228.60mm) | 0.085" Semi-Rigid Cable | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|
|
PCYC-12-50COAX CBL BNC TO BNC |
1,321 |
|
- |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | - | - | BNC Plug | Male | - | - | 12.00" (304.80mm) | RG-58 | 50 Ohms | - | 50 Ohms | - | Green | - | - | - | - |
