Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FMC1316316-12COAX CBL SMA TO SMB |
2,244 |
|
- |
- | Bag | Active | SMA to SMB | SMA Jack | Female | Free Hanging (In-Line) | - | SMB Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | - | Tan | - | - | - | - |
|
|
FMC0303058-12COAX CBL TNC TO TNC |
2,513 |
|
- |
- | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
FMC0108315-12COAX CBL BNC TO N-TYPE |
4,836 |
|
- |
- | Bag | Active | BNC to N-Type | BNC Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | -55°C ~ 125°C | - | - |
|
|
FMC0303143-24COAX CBL TNC TO TNC |
3,641 |
|
- |
- | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | 8 GHz | Beige | - | -55°C ~ 200°C | - | - |
|

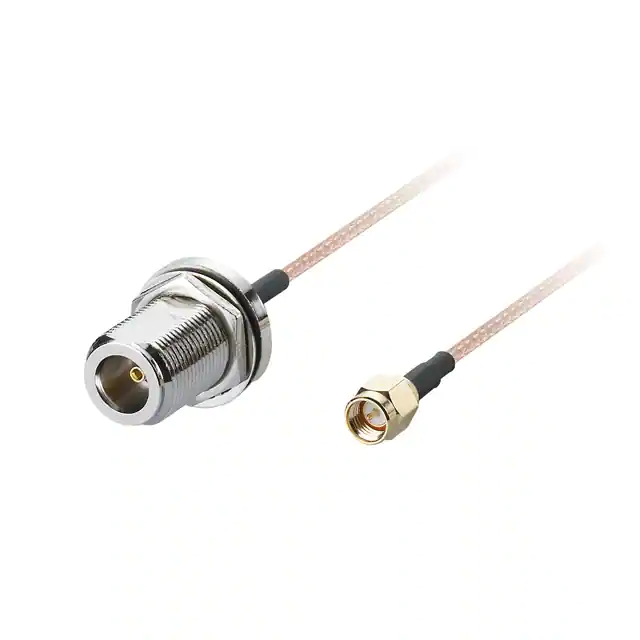

CAB.952COAX CBL SMA TO N-TYPE |
2,696 |
|
Datasheet |
- | Bag | Active | SMA to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-316 | 50 Ohms | - | 50 Ohms | 1.3 GHz | Brown | Shielded | 105°C | - | - |
|
415-0046-048COAX CBL SMA TO SMA |
1,557 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | White | Shielded | - | - | - |
|
|
RF058-06SP2-01SP1-0100COAX CBL SMA TO N-TYPE |
2,700 |
|
Datasheet |
RF058 | Bulk | Active | SMA to N Type | SMA Plug | Male | Free Hanging (In-Line) | - | N Type Plug | Male | Free Hanging (In-Line) | - | - | RG-58 | - | - | 50 Ohms | 1 GHz | Violet | - | -50°C ~ 90°C | - | - |
|
|
FMC1618315LF-24COAX CBL SMB TO SMC |
3,829 |
|
- |
- | Bag | Active | SMB to SMC | SMB Plug | Male | Free Hanging (In-Line) | - | SMC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | -65°C ~ 165°C | - | - |
|
|
FMC0303058-48COAX CBL TNC TO TNC |
2,045 |
|
- |
- | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C | - | - |
|
095-850-157M200COAX CBL 1.0/2.3 TO HD-BNC |
1,737 |
|
Datasheet |
- | Bulk | Active | 1.0/2.3 to HD-BNC | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | Belden 1694A | - | - | 75 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
9202436R0661COAX CBL BNC TO BNC |
1,551 |
|
Datasheet |
COAX-CBL-PMN | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | - | - | - | |
|
|
9202420R0645COAX CBL BNC TO BNC |
1,543 |
|
Datasheet |
COAX-CBL-PMN | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-223 DS | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | - | - | - | |
|
|
9202502R0727COAX CBL BNC TO BNC |
2,063 |
|
Datasheet |
COAX-CBL-PMN | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 144.0" (3.7m) 12.0' | RG-59B | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | Shielded | - | - | - | |
|
|
9202493R0718COAX CBL BNC TO BNC |
4,686 |
|
Datasheet |
COAX-CBL-PMN | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | - | - | - | |
|
095-850-235M075COAX CBL TNC TO CABLE |
4,243 |
|
Datasheet |
- | Bag | Active | TNC to Cable | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Cable (Round) | - | - | - | 29.53" (750.00mm) | Hand Formable .085 | - | - | 50 Ohms | 11 GHz | Silver | - | - | - | - |
|
|
IJ5C-02-0914-S-S-2COAX CBL IJ5C TO CABLE |
2,158 |
|
Datasheet |
ISORATE® IJ5C | Bulk | Active | IJ5C to Cable | IJ5C Jack | Female | Free Hanging (In-Line) | - | Cable (Round), Stripped & Tinned | - | - | - | - | RG-316 | 50 Ohms | - | 50 Ohms | 9.9 GHz | Amber | - | -40°C ~ 90°C | - | - |
|
|
FMTC501-72COAX CBL BNC TO BNC |
1,060 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | FM-SF200LL | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Silver | - | - | - | - |
|
|
LCCA30175-FT2COAX CBL SMA TO SMA |
1,825 |
|
- |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
CA-RSJRTPA002COAX CBL RP-SMA TO RP-TNC |
4,949 |
|
- |
- | Bag | Active | RP-SMA to RP-TNC | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | RP-TNC Plug | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 195 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
LCCA30729/WH-FT1COAX CBL 1.0/2.3 TO HD-BNC |
2,269 |
|
- |
- | Bag | Active | 1.0/2.3 to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Belden 4694R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | White | - | -30°C ~ 75°C | - | - |
