Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FMC1626315-60COAX CBL SMB TO SMB |
4,888 |
|
- |
- | Bag | Active | SMB to SMB | SMB Plug | Male | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | - | Tan | - | - | - | - |
|
|
FMC0717316-24COAX CBL MCX TO MCX |
3,241 |
|
- |
- | Bag | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | - | Tan | - | - | - | - |
|
|
FMC0717174-12COAX CBL MCX TO MCX |
4,539 |
|
- |
- | Bag | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
FMC2626315-12COAX CBL SMB TO SMB |
3,974 |
|
- |
- | Bag | Active | SMB to SMB | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | - | Tan | - | - | - | - |
|
|
FMCA2731-24COAX CBL SMA TO TNC |
1,252 |
|
- |
- | Bag | Active | SMA to TNC | SMA Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-223 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
IJ5C-02-0450-S-D-NUS-1COAX CBL IJ5C TO IJ5C |
1,339 |
|
Datasheet |
ISORATE® IJ5C | Bulk | Active | IJ5C to IJ5C | IJ5C Jack | Female | Free Hanging (In-Line) | - | IJ5C Jack | Female | Free Hanging (In-Line) | - | - | RG-316 | 50 Ohms | - | 50 Ohms | 9.9 GHz | Amber | - | -40°C ~ 90°C | - | - |
|
|
IJ5C-02-0450-S-D-NDS-1COAX CBL IJ5C TO IJ5C |
1,941 |
|
Datasheet |
ISORATE® IJ5C | Bulk | Active | IJ5C to IJ5C | IJ5C Jack | Female | Free Hanging (In-Line) | - | IJ5C Jack | Female | Free Hanging (In-Line) | - | - | RG-316 | 50 Ohms | - | 50 Ohms | 9.9 GHz | Amber | - | -40°C ~ 90°C | - | - |
|
|
CBL-54-40FT-S1-S4COAX CBL SMA TO SMA |
4,687 |
|
Datasheet |
CBL | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 480.0" (12.2m) 40.0' | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
095-850-158M025COAX CBL HD-BNC TO HD-BNC |
4,613 |
|
Datasheet |
- | Bulk | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | Belden 1855A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
|
CCS58AB-10COAX CBL BNC TO SMA |
4,005 |
|
- |
- | Bag | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | RG-58C | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
095-850-217-012COAX CBL BNC TO HD-BNC |
1,185 |
|
Datasheet |
- | Bag | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Belden 4505R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|

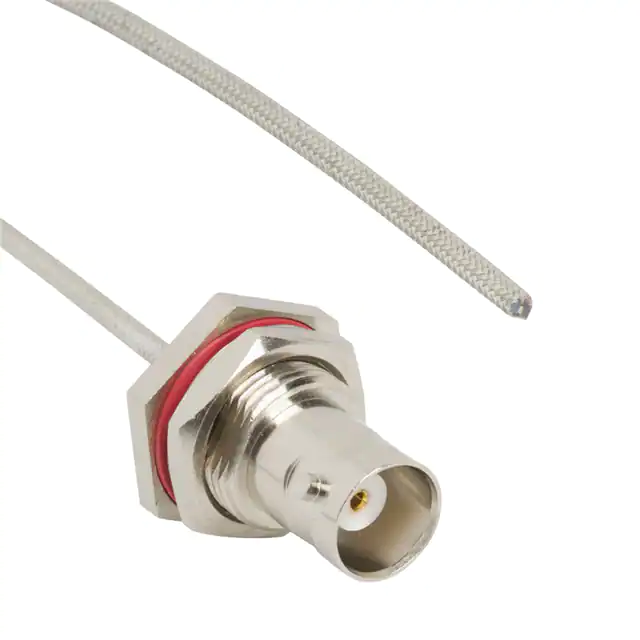

095-850-234-024COAX CBL BNC TO CABLE |
4,912 |
|
Datasheet |
- | Bag | Active | BNC to Cable | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Cable (Round) | - | - | - | 24.00" (609.60mm) | Hand Formable .085 | - | - | 50 Ohms | 4 GHz | Silver | - | - | - | - |
|
|
LCCA30694-FT6COAX CBL N-TYPE TO TNC |
4,004 |
|
- |
- | Bag | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 72.0" (1.8m) 6.0' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -20°C ~ 80°C | - | - |
|
|
LCCA30272-FT1.5COAX CBL SMA TO N-TYPE |
4,287 |
|
- |
- | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | LMR 240 DB | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LCCA30686-FT6COAX CBL SMA TO N-TYPE |
4,422 |
|
- |
- | Bag | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 72.0" (1.8m) 6.0' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -20°C ~ 80°C | - | - |
|
|
LCCA30685-FT6COAX CBL SMA TO N-TYPE |
4,250 |
|
- |
- | Bag | Active | SMA to N-Type | SMA Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 72.0" (1.8m) 6.0' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -20°C ~ 80°C | - | - |
|
|
CC174-5HRCOAX CBL BNC TO BNC |
2,983 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
095-850-251-018COAX CBL BNC TO BNC |
1,169 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-142 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C | - | - |
|
|
RF058-05SR3-01SP1-0700COAX CBL SMA TO RP-TNC |
3,893 |
|
Datasheet |
RF058 | Bulk | Active | SMA to RP-TNC | SMA Plug | Male | Free Hanging (In-Line) | - | RP-TNC Plug | Female | Free Hanging (In-Line) | - | - | RG-58 | - | - | 50 Ohms | 1 GHz | Violet | - | -50°C ~ 90°C | - | - |
|
095-850-214-006COAX CBL HD-BNC TO HD-BNC |
2,958 |
|
Datasheet |
- | Bag | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Belden 4794R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
