Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FMCA2120-18COAX CBL SMA TO SMA |
1,437 |
|
- |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 18.00" (457.20mm) | Hand Formable .047 | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Black | - | - | - | - |
|
|
FMC00318-12COAX CBL BNC TO MMCX |
1,345 |
|
- |
- | Bag | Active | BNC to MMCX | BNC Jack | Female | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 100 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
FMC0816315LF-06COAX CBL BNC TO SMB |
1,414 |
|
- |
- | Bag | Active | BNC to SMB | BNC Plug | Male | Free Hanging (In-Line) | - | SMB Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 2 GHz | Tan | - | -65°C ~ 165°C | - | - |
|
|
FMCA1356Z-12COAX CBL FAKRA TO FAKRA |
2,037 |
|
- |
- | Bag | Active | Fakra to Fakra | Fakra Plug | Male | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | -40°C ~ 80°C | - | - |
|
|
FMC1838315-12COAX CBL BNC TO SMC |
4,944 |
|
- |
- | Bag | Active | BNC to SMC | SMC Plug | Male | Free Hanging (In-Line) | - | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | - | Tan | - | - | - | - |
|
|
FMC0724174-24COAX CBL MCX TO MCX |
1,611 |
|
- |
- | Bag | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
FMC1819316LF-12COAX CBL SMC TO MMCX |
4,220 |
|
- |
- | Bag | Active | SMC to MMCX | SMC Plug | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | - | -65°C ~ 165°C | - | - |
|
095-902-477M075COAX CBL SMA TO SMA |
3,270 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | LMR 195 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
095-850-218-012COAX CBL BNC TO HD-BNC |
2,688 |
|
Datasheet |
- | Bag | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Belden 4694R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
|
135110-R2-12.00COAX CBL SMA TO SMA |
2,633 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Hand Formable .141 | - | - | 50 Ohms | - | - | - | - | - | - |
|
095-850-292-072COAX CBL BNC TO BNC |
4,100 |
|
Datasheet |
BNC | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-58 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|

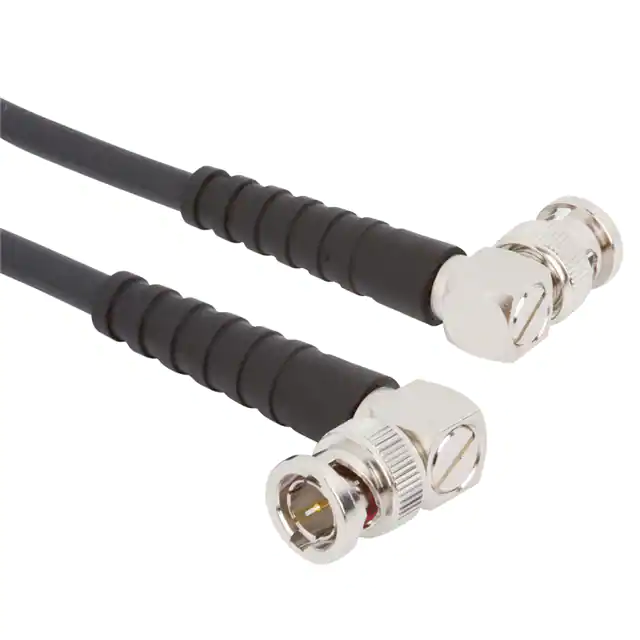

115104-15-48.00COAX CBL BNC TO BNC |
3,603 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-59 | 75 Ohms | - | 75 Ohms | - | Black | Shielded | - | - | - |
|
095-850-294M075COAX CBL TNC TO TNC |
4,715 |
|
Datasheet |
TNC | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-58 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
095-725-118M030COAX CBL SMP TO SMP |
3,766 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Plug | Male | Free Hanging (In-Line) | - | SMP Plug, Right Angle | Male | Free Hanging (In-Line) | - | 11.811" (300.00mm) | Hand Formable .086 | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|
|
LCCA30183-FT4COAX CBL SMA TO SMA |
3,684 |
|
- |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 240 DB | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
CC58C-MF-6COAX CBL BNC TO BNC |
2,124 |
|
- |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-58C | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
LCCA30207-FT1COAX CBL TNC TO TNC |
2,570 |
|
- |
- | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 400 DB | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
CBL-240-33FT-N9-N9COAX CBL N-TYPE TO N-TYPE |
1,478 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 396.0" (10.1m) 33.0' | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-240-33FT-N1-N9COAX CBL N-TYPE TO N-TYPE |
2,681 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 396.0" (10.1m) 33.0' | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-240-33FT-M1-N1COAX CBL N-TYPE TO UHF MINI |
3,970 |
|
Datasheet |
CBL | Bulk | Active | N-Type to UHF, Mini | N-Type Plug | Male | Free Hanging (In-Line) | - | UHF, Mini Plug | Male | Free Hanging (In-Line) | - | 396.0" (10.1m) 33.0' | PFP 240 | - | - | - | - | Black | - | - | - | - |
