Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-850-157-036COAX CBL 1.0/2.3 TO HD-BNC |
1,634 |
|
Datasheet |
- | Bulk | Active | 1.0/2.3 to HD-BNC | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 1694A | - | - | 75 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
135108-04-36.00COAX CBL SMA TO SMA |
2,088 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|

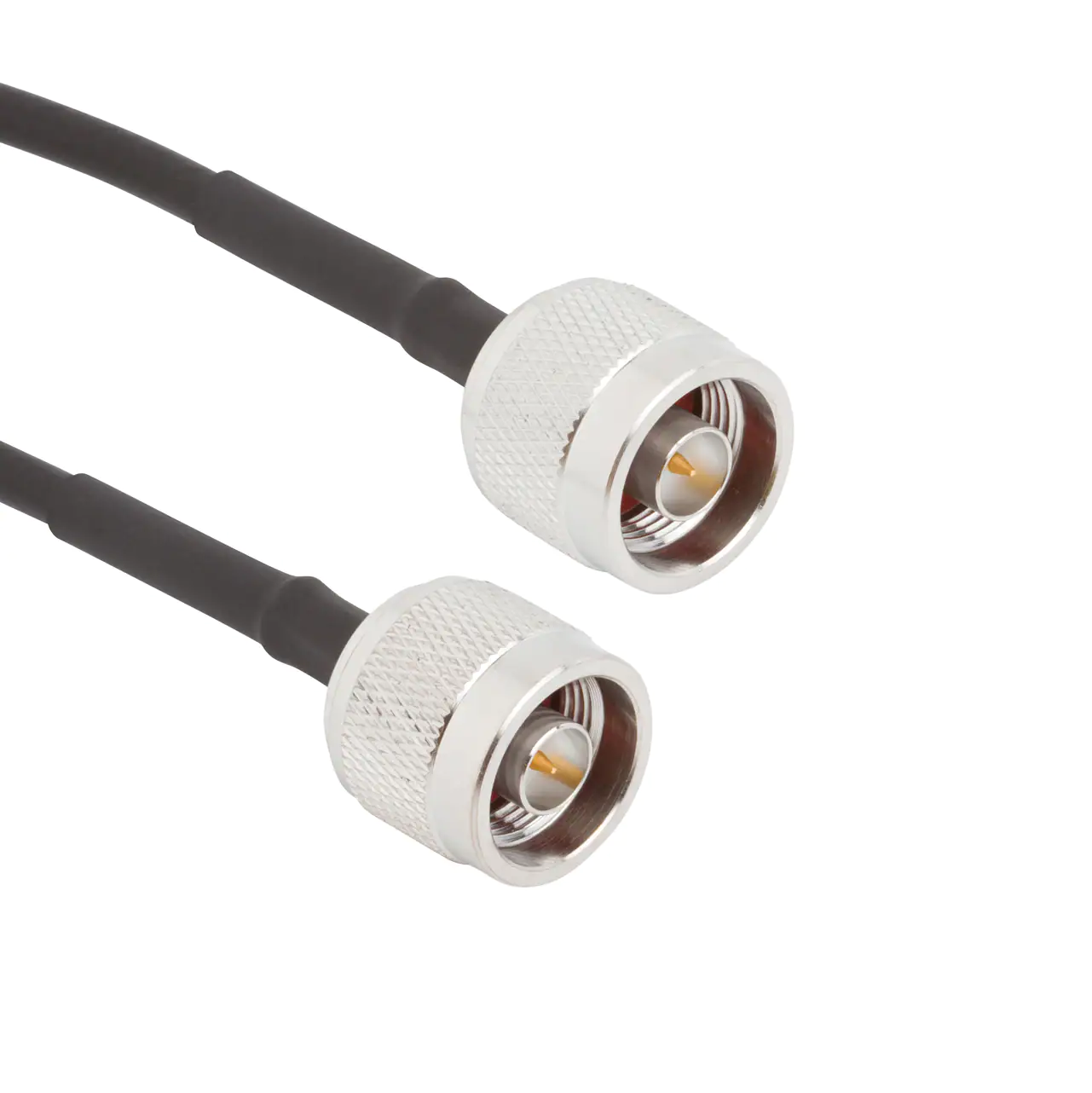

175101-17-48.00COAX CBL N-TYPE TO N-TYPE |
4,541 |
|
Datasheet |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 200 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|
415-0528-MM250COAX CBL SMPM TO SMPM |
3,438 |
|
Datasheet |
- | Bag | Active | SMPM to SMPM | SMPM Jack | Female | Free Hanging (In-Line) | - | SMPM Jack, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 0.086" Flexible Cable | - | - | - | 30 GHz | Blue | - | - | - | - |
|
095Z820-165M300COAX CBL SMA TO FAKRA III |
2,571 |
|
Datasheet |
- | Bag | Active | SMA to Fakra III | SMA Plug | Male | Free Hanging (In-Line) | - | Fakra III (Gen 3.0) Jack | Female | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - | - | - |
|
095-850-217-006COAX CBL BNC TO HD-BNC |
1,538 |
|
Datasheet |
- | Bag | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Belden 4505R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
095-725-118-009COAX CBL SMP TO SMP |
2,979 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Plug | Male | Free Hanging (In-Line) | - | SMP Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.000" (228.60mm) | Hand Formable .086 | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|
|
RF058-05SR3-01SP1-0250COAX CBL SMA TO RP-TNC |
1,283 |
|
Datasheet |
RF058 | Bulk | Active | SMA to RP-TNC | SMA Plug | Male | Free Hanging (In-Line) | - | RP-TNC Plug | Female | Free Hanging (In-Line) | - | - | RG-58 | - | - | 50 Ohms | 1 GHz | Violet | - | -50°C ~ 90°C | - | - |
|
175101-19-48.00COAX CBL N-TYPE TO N-TYPE |
4,478 |
|
Datasheet |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|
|
095-850-304M300COAX CBL BNC TO MCX |
1,543 |
|
Datasheet |
- | Bag | Active | BNC to MCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | - | - | - | - |
|

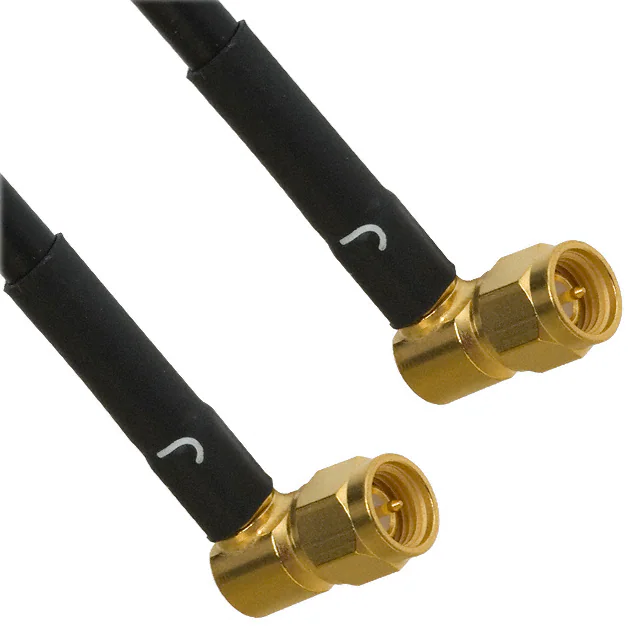

415-0041-048COAX CBL SMA TO SMA |
1,278 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Black | Shielded | - | - | - |
|
095-902-477M050COAX CBL SMA TO SMA |
4,764 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | LMR 195 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
|
415-0529-MM250COAX CBL SMPM TO SMPM |
2,987 |
|
Datasheet |
- | Bag | Active | SMPM to SMPM | SMPM Jack, Right Angle | Female | Free Hanging (In-Line) | - | SMPM Jack, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 0.086" Flexible Cable | - | - | - | 30 GHz | Blue | - | - | - | - |
|
JR2N1-CL1-4FCOAX CBL RP-SMA TO N-TYPE |
3,644 |
|
- |
- | Bulk | Obsolete | RP-SMA to N-Type | RP-SMA Plug, Right Angle | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | - | - | - | - | Black | Shielded | - | - | - |
|
JR2R3-CL1-6FCOAX CBL RP-SMA TO RP-SMA |
4,256 |
|
Datasheet |
- | Bulk | Obsolete | RP-SMA to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | RP-SMA Plug, Right Angle | Female | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | - | - | - | - | - | Black | Shielded | - | - | - |
|
|
LCCA30706-FT10COAX CBL N-TYPE TO TNC |
1,352 |
|
- |
- | Bag | Active | N-Type to TNC | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 120.0" (3.0m) 10.0' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -20°C ~ 80°C | - | - |
|
|
LCCA30063-FT1COAX CBL MCX TO MCX |
4,992 |
|
Datasheet |
- | Bag | Active | MCX to MCX | MCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | -55°C ~ 200°C | - | - |
|
|
LCCA30252-FT1COAX CBL BNC TO TNC |
3,903 |
|
- |
- | Bag | Active | BNC to TNC | BNC Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line), Right Angle | - | 12.00" (304.80mm) | LMR 200 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LCCA30126-FT1COAX CBL TNC TO TNC |
3,542 |
|
- |
- | Bag | Active | TNC to TNC | TNC Jack | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LC085TB | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | - | - | -55°C ~ 125°C | - | - |
|
|
LCCA30542-FT2COAX CBL SMA TO N-TYPE |
1,001 |
|
- |
- | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00" (609.60mm) | LC085TB | - | - | - | 10 GHz | Silver | - | - | - | - |
