Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

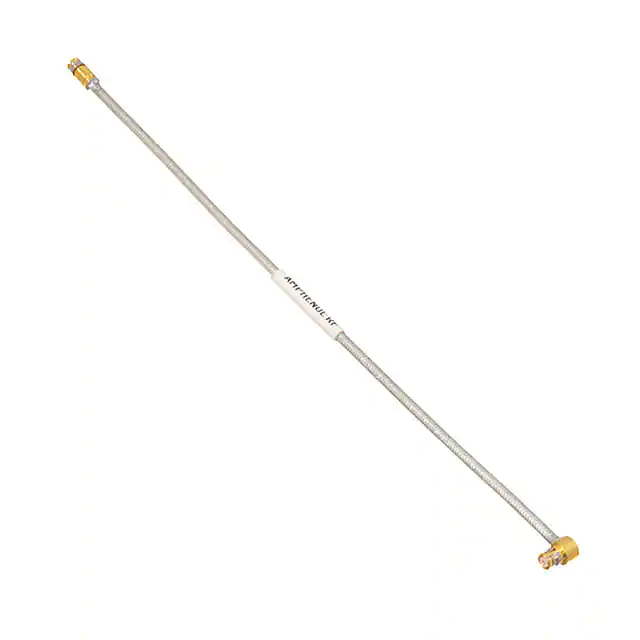

095-725-118-006COAX CBL SMP TO SMP |
1,571 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Plug | Male | Free Hanging (In-Line) | - | SMP Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Hand Formable .086 | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|
095-850-235-018COAX CBL TNC TO CABLE |
4,770 |
|
Datasheet |
- | Bag | Active | TNC to Cable | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Cable (Round) | - | - | - | 18.00" (457.20mm) | Hand Formable .085 | - | - | 50 Ohms | 11 GHz | Silver | - | - | - | - |
|
9202478R0703COAX CBL SMA TO SMA |
2,137 |
|
Datasheet |
COAX-CBL-PMN | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -55°C ~ 155°C | - | - | |
|
|
9202407R0632COAX CBL BNC TO BNC |
3,376 |
|
Datasheet |
COAX-CBL-PMN | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 4.95mm OD Coaxial Cable | - | - | 50 Ohms | 10 Hz|kHz | Black | Shielded | 50°C | - | - | |
|
|
9202435R0660COAX CBL BNC TO BNC |
1,469 |
|
Datasheet |
COAX-CBL-PMN | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 4.95mm OD Coaxial Cable | - | - | 50 Ohms | 10 Hz|kHz | Black | Shielded | 50°C | - | - | |
|
|
9202391R0616COAX CBL SMA TO SMA |
4,218 |
|
Datasheet |
COAX-CBL-PMN | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-178B | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -65°C ~ 165°C | - | - | |
|
|
9202389R0614COAX CBL BNC TO BNC |
3,683 |
|
Datasheet |
COAX-CBL-PMN | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 96.0" (2.4m) 8.0' | RG-58C | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | Shielded | - | - | - | |
|
415-0081-MM75COAX CBL SMA TO SMA |
4,764 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 2.953" (75.00mm) | Hand Formable .086 | - | 50 Ohms | 50 Ohms | 18 GHz | Gray | Shielded | - | - | - |
|
135108-04-24.00COAX CBL SMA TO SMA |
3,768 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|
|
RF058-06SP3-SING-1000COAX CBL N TYPE TO CABLE |
3,552 |
|
Datasheet |
RF058 | Bulk | Active | N Type to Cable | N Type Plug | Male | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | - | RG-58 | - | - | 50 Ohms | 1 GHz | Violet | - | -50°C ~ 90°C | - | - |
|
|
R284C0351008COAX CBL BNC TO BNC |
1,454 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | RG-58 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | -35°C ~ 70°C | - | - |
|
|
0732307234CASMA P R/A TO SMA P STR.08624IN |
3,613 |
|
- |
73230 | Bulk | Active | SMA to SMP | SMP Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 0.086" Flexible Cable | - | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
095-902-477-012COAX CBL SMA TO SMA |
4,706 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 195 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
095-850-201M150COAX CBL 1.0/2.3 TO BNC |
3,692 |
|
Datasheet |
- | Bag | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | RG-179 | 75 Ohms | - | 75 Ohms | 4 GHz | Copper | - | - | - | - |
|
|
LCCA30676-FT4COAX CBL BNC TO N-TYPE |
3,341 |
|
- |
- | Bag | Active | BNC to N-Type | BNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -20°C ~ 80°C | - | - |
|
|
FMCA1025-3COAX CBL SMA TO UMCX |
4,631 |
|
- |
- | Bag | Active | SMA to UMCX | SMA Plug | Male | Free Hanging (In-Line) | - | UMCX Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | 1.37mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 125°C | - | - |
|
|
IJ5C-02-0101-S-D-NDS-1COAX CBL IJ5C TO IJ5C |
4,131 |
|
Datasheet |
ISORATE® IJ5C | Bulk | Active | IJ5C to IJ5C | IJ5C Plug | Male | Free Hanging (In-Line) | - | IJ5C Plug | Male | Free Hanging (In-Line) | - | 3.976" (101.00mm) | - | 50 Ohms | - | 50 Ohms | 9.5 GHz | Blue | - | -40°C ~ 90°C | - | - |
|
095-850-292-006COAX CBL BNC TO BNC |
1,763 |
|
Datasheet |
BNC | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-58 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
CBL-30-6FT-N1-N4COAX CBL N-TYPE TO N-TYPE |
3,423 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | LMR 400 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
LCCA30299-FT2COAX CBL BNC TO N-TYPE |
2,827 |
|
- |
- | Bag | Active | BNC to N-Type | BNC Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
