Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-725-119M030COAX CBL SMP TO SMP |
1,176 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Plug | Male | Free Hanging (In-Line) | - | SMP Plug | Male | Free Hanging (In-Line) | - | 11.811" (300.00mm) | Hand Formable .047 | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|
787903-0R056RF CABLE, MMCX (M) TO MMCX (M), |
4,691 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
095-850-246M400COAX CBL BNC TO SMA |
2,929 |
|
Datasheet |
- | Bag | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 157.5" (4.0m) 13.1' | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - | - | - |
|
|
IJ5C-02-0300-S-D-NUS-1COAX CBL IJ5C TO IJ5C |
3,574 |
|
Datasheet |
ISORATE® IJ5C | Bulk | Active | IJ5C to IJ5C | IJ5C Jack | Female | Free Hanging (In-Line) | - | IJ5C Jack | Female | Free Hanging (In-Line) | - | - | RG-316 | 50 Ohms | - | 50 Ohms | 9.9 GHz | Amber | - | -40°C ~ 90°C | - | - |
|
|
IJ5C-02-0300-S-D-NDS-1COAX CBL IJ5C TO IJ5C |
4,081 |
|
Datasheet |
ISORATE® IJ5C | Bulk | Active | IJ5C to IJ5C | IJ5C Jack | Female | Free Hanging (In-Line) | - | IJ5C Jack | Female | Free Hanging (In-Line) | - | - | RG-316 | 50 Ohms | - | 50 Ohms | 9.9 GHz | Amber | - | -40°C ~ 90°C | - | - |
|

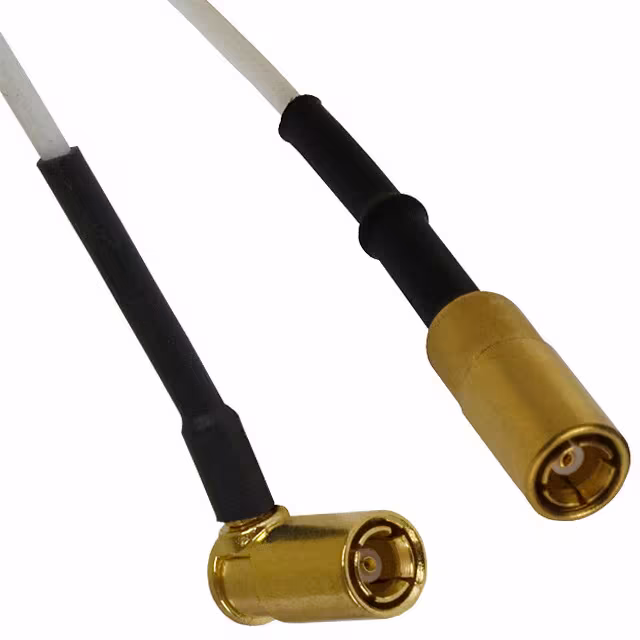

415-0007-036COAX CBL SMB TO SMB |
4,683 |
|
Datasheet |
- | Bulk | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | White | Shielded | - | - | - |
|
095-850-279-024COAX CBL BNC TO BNC |
2,175 |
|
Datasheet |
BNC | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 400 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | -40°C ~ 85°C | - | - |
|
095-850-185-006COAX CBL HD-BNC TO HD-BNC |
3,824 |
|
Datasheet |
- | Bag | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | - | - | - | - |
|
175101-22-M0.25COAX CBL N-TYPE TO N-TYPE |
3,596 |
|
Datasheet |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | LMR 240 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|
|
LCCA30800/YW-FT1COAX CBL HD-BNC TO HD-BNC |
1,510 |
|
- |
- | Bag | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Yellow | - | -20°C ~ 75°C | - | - |
|
|
LCCA30797/BR-FT6COAX CBL BNC TO BNC |
3,760 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Brown | - | -20°C ~ 75°C | - | - |
|
|
LCCA30698-FT5COAX CBL SMA TO N-TYPE |
1,271 |
|
- |
- | Bag | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 60.0" (1.5m) 5.0' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -20°C ~ 80°C | - | - |
|
|
LCCA30701-FT4COAX CBL BNC TO N-TYPE |
2,078 |
|
- |
- | Bag | Active | BNC to N-Type | BNC Jack | Female | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 48.0" (1.2m) 4.0' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -20°C ~ 80°C | - | - |
|
|
LCCA30797/GR-FT6COAX CBL BNC TO BNC |
1,574 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Green | - | -20°C ~ 75°C | - | - |
|
|
LCCA30800/GY-FT1COAX CBL HD-BNC TO HD-BNC |
4,639 |
|
- |
- | Bag | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Gray | - | -20°C ~ 75°C | - | - |
|
|
LCCA30797/OR-FT6COAX CBL BNC TO BNC |
1,475 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Orange | - | -20°C ~ 75°C | - | - |
|
|
LCCA30800/GR-FT1COAX CBL HD-BNC TO HD-BNC |
4,456 |
|
- |
- | Bag | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Green | - | -20°C ~ 75°C | - | - |
|
|
LCCA30158-FT2COAX CBL N-TYPE TO N-TYPE |
4,855 |
|
- |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 195 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LCCA30797/WH-FT6COAX CBL BNC TO BNC |
1,908 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | White | - | -20°C ~ 75°C | - | - |
|
|
LCCA30800/BR-FT1COAX CBL HD-BNC TO HD-BNC |
1,976 |
|
- |
- | Bag | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Brown | - | -20°C ~ 75°C | - | - |
