Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
135108-R2-06.00COAX CBL SMA TO SMA |
1,608 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Hand Formable .141 | - | - | 50 Ohms | - | - | - | - | - | - |
|
|
CBL-60-30FT-F1-F1COAX CBL FME TO FME |
2,379 |
|
Datasheet |
CBL | Bulk | Active | FME to FME | FME Plug | Male | Free Hanging (In-Line) | - | FME Plug | Male | Free Hanging (In-Line) | - | 360.0" (9.1m) 30.0' | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
415-0075-012COAX CBL SMA TO SMA |
2,070 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | White | Shielded | - | - | - |
|
095-850-275M075COAX CBL TNC TO TNC |
2,216 |
|
Datasheet |
TNC | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-142 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
|
095-850-303-036COAX CBL BNC TO MCX |
3,868 |
|
Datasheet |
- | Bag | Active | BNC to MCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | - | - | - | - |
|
095-850-234M020COAX CBL BNC TO CABLE |
3,695 |
|
Datasheet |
- | Bag | Active | BNC to Cable | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Cable (Round) | - | - | - | 7.874" (200.00mm) | Hand Formable .085 | - | - | 50 Ohms | 4 GHz | Silver | - | - | - | - |
|
|
LCCA30678-FT3COAX CBL BNC TO N-TYPE |
1,871 |
|
- |
- | Bag | Active | BNC to N-Type | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -20°C ~ 80°C | - | - |
|
|
FMCA1025-12COAX CBL SMA TO UMCX |
1,269 |
|
- |
- | Bag | Active | SMA to UMCX | SMA Plug | Male | Free Hanging (In-Line) | - | UMCX Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 1.37mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 125°C | - | - |
|
|
CBL-23-4FT-N3-N4COMMSCOPE 240 CABLE, FLAME RETAR |
3,733 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CBL-142-2FT-N1-S1COAX CBL RP-TNC TO N-TYPE |
1,860 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

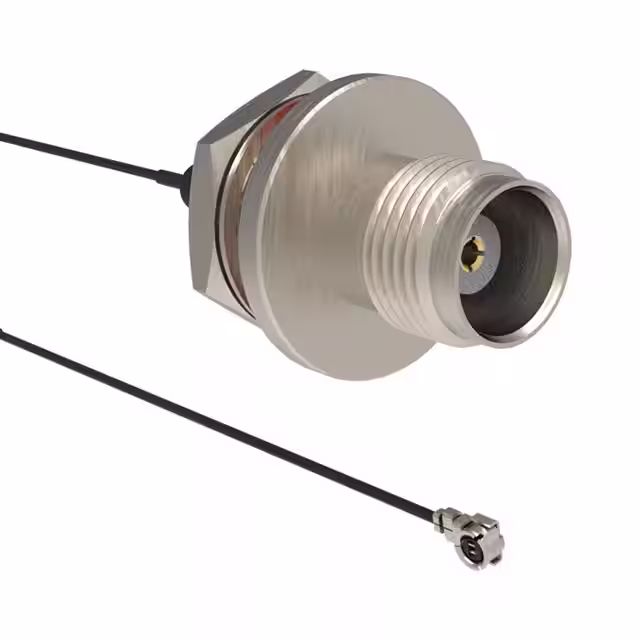

095-850-264-250COAX CBL U.FL AMC TO TNC |
1,100 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to TNC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 9.843" (250.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
2479974-1CABLE ASSEMBLY BNC PLUG STRAIGHT |
2,922 |
|
- |
- | Bulk | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | - | - | - | 75 Ohms | 4 GHz | Black | - | -30°C ~ 75°C | - | - |
|
|
135108-R1-05.00COAX CBL SMA TO SMA |
2,309 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 5.000" (127.00mm) | Hand Formable .085 | - | - | 50 Ohms | - | - | - | - | - | - |
|
|
135108-R2-05.00COAX CBL SMA TO SMA |
1,780 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 5.000" (127.00mm) | Hand Formable .141 | - | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA30677-FT2COAX CBL BNC TO N-TYPE |
4,976 |
|
- |
- | Bag | Active | BNC to N-Type | BNC Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -20°C ~ 80°C | - | - |
|
|
LCCA30667-FT5COAX CBL SMA TO N-TYPE |
2,537 |
|
- |
- | Bag | Active | SMA to N-Type | SMA Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -20°C ~ 80°C | - | - |
|
|
095-850-304M100COAX CBL BNC TO MCX |
4,757 |
|
Datasheet |
- | Bag | Active | BNC to MCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | - | - | - | - |
|
|
IJ5C-02-0115-S-D-NUS-1COAX CBL IJ5C TO IJ5C |
3,177 |
|
Datasheet |
ISORATE® IJ5C | Bulk | Active | IJ5C to IJ5C | IJ5C Jack | Female | Free Hanging (In-Line) | - | IJ5C Jack | Female | Free Hanging (In-Line) | - | - | RG-316 | 50 Ohms | - | 50 Ohms | 9.9 GHz | Amber | - | -40°C ~ 90°C | - | - |
|
|
0732307116CASMA J STR BH TO SMA P RARG316D |
4,614 |
|
- |
73230 | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 DS | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
|
CBL-240-16FT-N9-N9COAX CBL N-TYPE TO N-TYPE |
4,537 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 192.0" (4.9m) 16.0' | PFP 240 | - | - | - | - | Black | - | - | - | - |
