Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FMCA1007-12COAX CBL SMA TO HMCX |
2,591 |
|
- |
- | Bag | Active | SMA to HMCX | HMCX Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | 0.81mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | - | -55°C ~ 125°C | - | - |
|
|
FMCA1028-3COAX CBL SMA TO UMCX |
3,057 |
|
- |
- | Bag | Active | SMA to UMCX | SMA Plug | Male | Free Hanging (In-Line) | - | UMCX Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | 0.81mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 125°C | - | - |
|
|
FMCA1018-12COAX CBL RP-SMA TO UMCX |
2,515 |
|
- |
- | Bag | Active | RP-SMA to UMCX | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | UMCX Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 1.37mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 125°C | - | - |
|
|
CO-059FTYPEMM-025COAX CBL F-TYPE TO F-TYPE |
2,403 |
|
- |
- | Bulk | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | RG-59 | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | - | - | - | - |
|
095-850-264-050COAX CBL U.FL AMC TO TNC |
3,473 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to TNC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 1.969" (50.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
415-0040-060COAX CBL SMA TO SMA |
1,154 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Gray | Shielded | - | - | - |
|
|
CO-316SMAX200-005COAX CBL SMA TO SMA |
2,352 |
|
- |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-316 | 50 Ohms | - | 50 Ohms | - | Brown | - | 200°C | - | - |
|

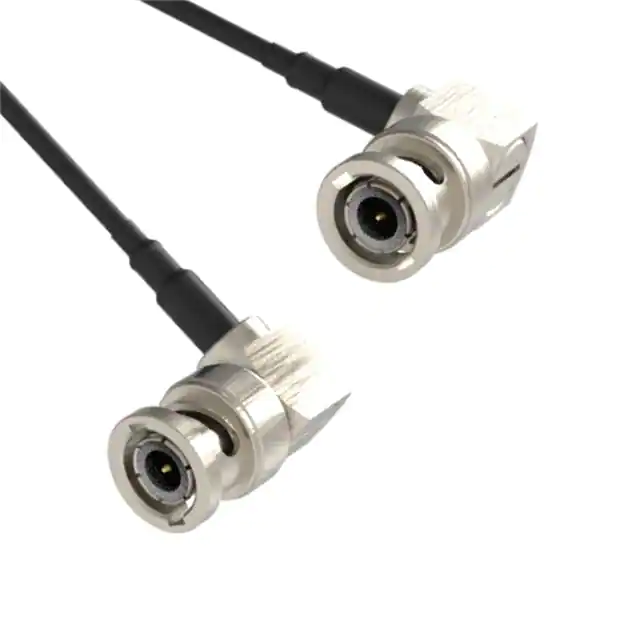

095-850-257M100COAX CBL BNC TO BNC |
3,300 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
095-850-301M075COAX CBL BNC TO MMCX |
4,443 |
|
Datasheet |
- | Bag | Active | BNC to MMCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | - | - | - | - |
|
|
CC6PB-5COAX CBL BNC TO BNC |
3,314 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-6 | 75 Ohms | 75 Ohms | 75 Ohms | - | White | - | - | - | - |
|
|
CBL-400-7FT-N1-N1COAX CBL N-TYPE TO N-TYPE |
2,243 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 84.0" (2.1m) 7.0' | PFP 400 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-400-7FT-N1-T1COAX CBL N-TYPE TO TNC |
4,274 |
|
Datasheet |
CBL | Bulk | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 84.0" (2.1m) 7.0' | PFP 400 | - | - | - | - | Black | - | - | - | - |
|
095-900-551M025COAX CBL MCX TO MCX |
1,642 |
|
Datasheet |
MCX | Bag | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
CBL-195-30FT-N1-N1COAX CBL N-TYPE TO N-TYPE |
2,387 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 360.0" (9.1m) 30.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-195-30FT-N1-N4COAX CBL N-TYPE TO N-TYPE |
2,012 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 360.0" (9.1m) 30.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-195-30FT-M1-M4COAX CBL UHF MINI-UHF MINI |
1,899 |
|
Datasheet |
CBL | Bulk | Active | UHF Mini to UHF Mini | UHF, Mini Plug | Male | Free Hanging (In-Line) | - | UHF, Mini Jack | Female | Free Hanging (In-Line) | - | 360.0" (9.1m) 30.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-195-30FT-N1-T1COAX CBL N-TYPE TO TNC |
2,457 |
|
Datasheet |
CBL | Bulk | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 360.0" (9.1m) 30.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-195-30FT-T1-T4COAX CBL TNC TO TNC |
1,591 |
|
Datasheet |
CBL | Bulk | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 360.0" (9.1m) 30.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-21-1FT-S1-S11 FT 0 IN LMR240UF, SMA MALE & S |
3,586 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
336503-13-0250COAX CBL U.FL AMC TO MCX |
4,155 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to MCX | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | MCX Socket | Female | Panel Mount | Bulkhead - Front Side Nut | 9.843" (250.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | - | - | - | - | - | - |
