Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCCA30668-FT6COAX CBL SMA TO N-TYPE |
2,280 |
|
- |
- | Bag | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -20°C ~ 80°C | - | - |
|
|
LCCA30266-FT1.5COAX CBL BNC TO TNC |
1,377 |
|
- |
- | Bag | Active | BNC to TNC | BNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
FMCA1027-12COAX CBL SMA TO UMCX |
3,045 |
|
- |
- | Bag | Active | SMA to UMCX | SMA Plug | Male | Free Hanging (In-Line) | - | UMCX Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Tan | - | -55°C ~ 125°C | - | - |
|
|
FMCA1018-6COAX CBL RP-SMA TO UMCX |
2,097 |
|
- |
- | Bag | Active | RP-SMA to UMCX | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | UMCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 1.37mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 125°C | - | - |
|
|
FMCA1027-9COAX CBL SMA TO UMCX |
4,348 |
|
- |
- | Bag | Active | SMA to UMCX | SMA Plug | Male | Free Hanging (In-Line) | - | UMCX Plug | Male | Free Hanging (In-Line) | - | 9.000" (228.60mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Tan | - | -55°C ~ 125°C | - | - |
|
|
FMC0716315-24COAX CBL MCX TO SMB |
2,449 |
|
- |
- | Bag | Active | MCX to SMB | MCX Plug | Male | Free Hanging (In-Line) | - | SMB Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | - | -65°C ~ 165°C | - | - |
|
|
PT825BBCOAX CBL BNC TO BNC |
2,202 |
|
- |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | - | - | BNC Plug | Male | - | - | 300.0" (7.6m) 25.0' | - | - | - | - | - | - | - | - | - | - |
|
095-850-201-018COAX CBL 1.0/2.3 TO BNC |
2,664 |
|
Datasheet |
- | Bag | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-179 | 75 Ohms | - | 75 Ohms | 4 GHz | Copper | - | - | - | - |
|
135111-02-48.00COAX CBL SMA TO SMA |
1,715 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|
|
CO-316SMAX200-004COAX CBL SMA TO SMA |
3,584 |
|
- |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 | 50 Ohms | - | 50 Ohms | - | Brown | - | 200°C | - | - |
|
|
336312-12-0100COAX CBL U.FL AMC TO RP-SMA |
3,776 |
|
Datasheet |
- | Bulk | Not For New Designs | U.FL (UMCC), AMC to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|

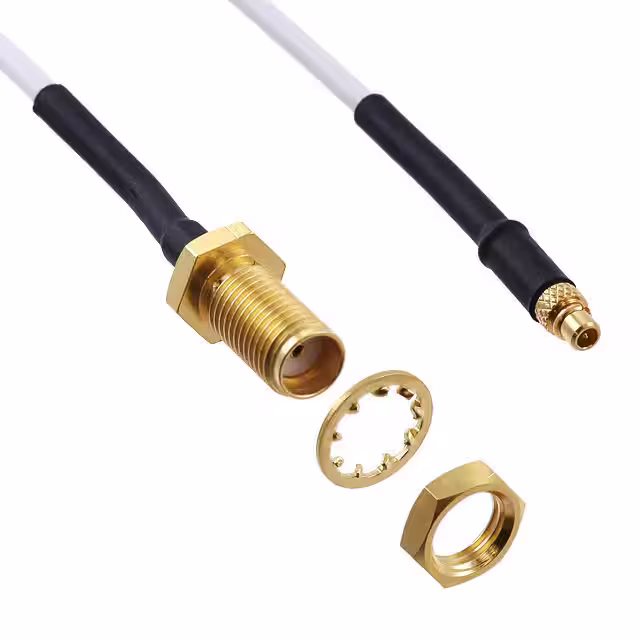

415-0070-MM500COAX CBL SMA TO MMCX |
3,126 |
|
Datasheet |
- | Bulk | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | White | Shielded | - | - | - |
|
|
CANM18CRAMP-001CABLE ASSY 316 MMCXP MMCX RA |
3,304 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CBL-241-18IN-N1-T1COAX CBL N-TYPE TO TNC |
2,141 |
|
Datasheet |
CBL | Bulk | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-241-18IN-N1-N1COAX CBL N-TYPE TO N-TYPE |
3,796 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-241-18IN-N1-S1COAX CBL SMA TO N-TYPE |
3,555 |
|
Datasheet |
CBL | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | PFP 240 | - | - | - | - | Black | - | - | - | - |
|
|
CC174-1.5HR2COAX CBL BNC TO BNC |
1,387 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
415-0026-018COAX CBL SMA TO SMA |
3,270 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Gray | Shielded | - | - | - |
|
|
R285020202WCOAX CBL UMP TO CABLE |
3,190 |
|
- |
CORD-STD | Bulk | Active | UMP to Cable | UMP Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 7.874" (200.00mm) | - | - | - | 50 Ohms | 3 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
095-902-526M200COAX CBL SMA TO N-TYPE |
1,141 |
|
Datasheet |
- | Bag | Active | SMA to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Panel Mount | Bulkhead - Front Side Nut | 78.7" (2.0m) 6.6' | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | - | - | - | - | - |
