Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-725-119M005COAX CBL SMP TO SMP |
4,090 |
|
Datasheet |
- | Bag | Active | SMP to SMP | SMP Plug | Male | Free Hanging (In-Line) | - | SMP Plug | Male | Free Hanging (In-Line) | - | 1.969" (50.00mm) | Hand Formable .047 | - | - | 50 Ohms | 20 GHz | Gray | - | - | - | - |
|
095-820-228M200AUTOMATE TYPE A MINI-FAKRA DUAL |
4,736 |
|
- |
AUTOMATE™ | Bag | Active | Mini Fakra to Fakra | Fakra Mini Jack | Female | Free Hanging (In-Line) | - | - | Female | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
CA-RSPNMCN19COAX CBL RP-SMA TO N-TYPE |
4,783 |
|
Datasheet |
- | Bag | Active | RP-SMA to N-Type | RP-SMA Plug | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 19.000" (482.60mm) | - | - | - | 50 Ohms | - | Black | - | - | - | - |
|
095-850-264-150COAX CBL U.FL AMC TO TNC |
3,733 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to TNC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 5.906" (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|

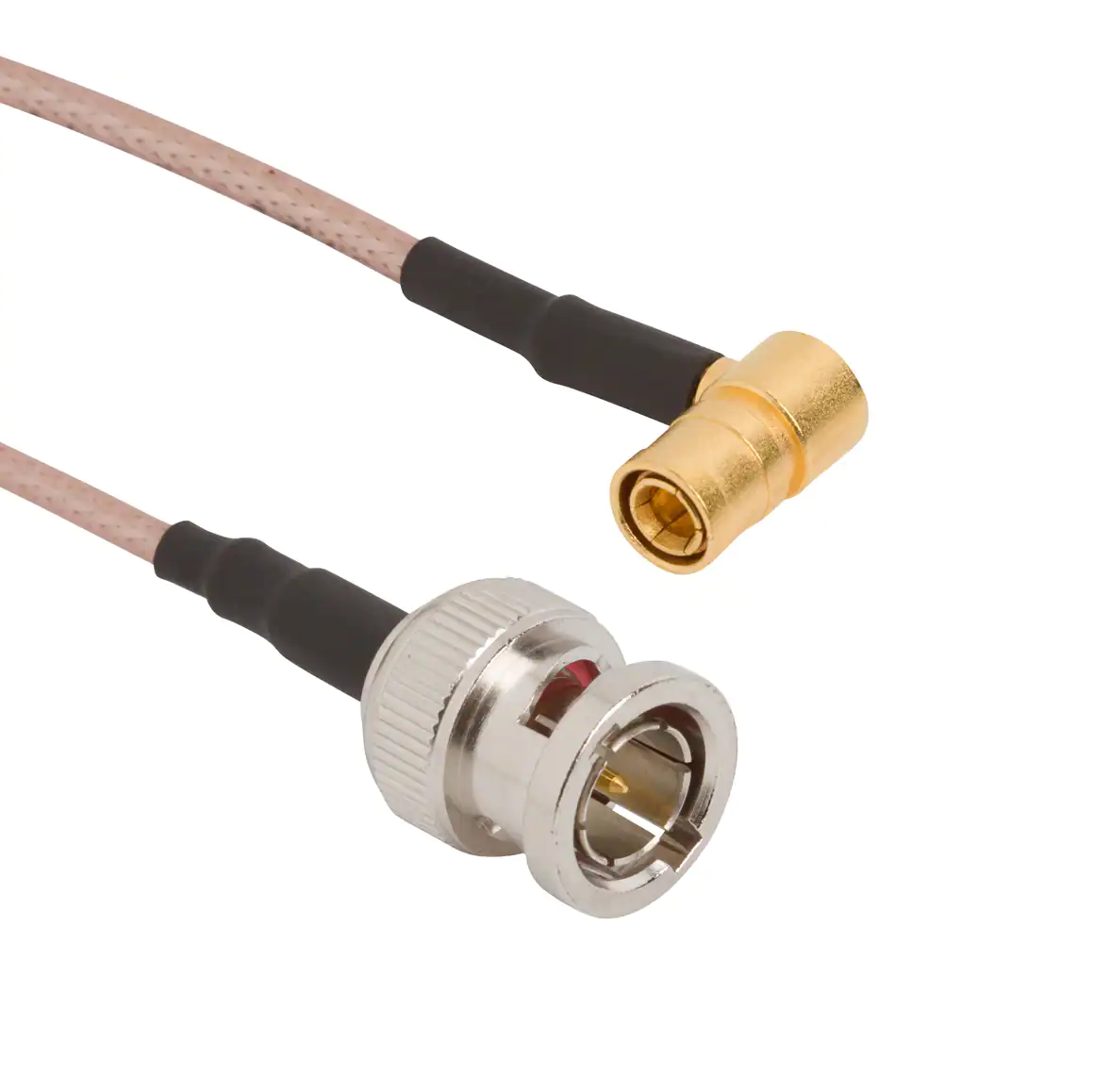

245103-05-36.00COAX CBL BNC TO SMB |
3,456 |
|
Datasheet |
- | Bag | Active | BNC to SMB | BNC Plug | Male | Free Hanging (In-Line) | - | SMB Mini Plug, Right Angle | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-179 | 75 Ohms | - | 75 Ohms | - | Copper | Shielded | - | - | - |
|
|
FMC0222085-06COAX CBL SMA TO SMP |
2,174 |
|
Datasheet |
- | Bulk | Active | SMA to SMP | SMA Plug | Male | Free Hanging (In-Line) | - | SMP Jack | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Hand Formable .047 | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Blue | - | -65°C ~ 165°C | - | - |
|
|
415-0527-MM500COAX CBL SMPM TO SMPM |
2,877 |
|
Datasheet |
- | Bag | Active | SMPM to SMPM | SMPM Jack | Female | Free Hanging (In-Line) | - | SMPM Jack | Female | Free Hanging (In-Line) | - | 19.69" (500.00mm) | 0.086" Flexible Cable | - | - | - | 40 GHz | Blue | - | - | - | - |
|
|
141-12SMNB+COAX CBL SMA TO N-TYPE |
1,316 |
|
Datasheet |
141 SMNB+ | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 105°C | - | - |
|
|
141-18SMNB+COAX CBL SMA TO N-TYPE |
1,080 |
|
Datasheet |
141 SMNB+ | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 18.00" (457.20mm) | Hand Formable .141 | - | - | 50 Ohms | 12.5 GHz | Blue | - | -55°C ~ 105°C | - | - |
|
|
FMC1732315-06COAX CBL SMA TO MCX |
2,649 |
|
- |
- | Bag | Active | SMA to MCX | SMA Plug | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | - | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | - | - | -40°C ~ 60°C | - | - |
|
|
141-36SBSMR+COAX CBL SMA TO SMA |
2,940 |
|
Datasheet |
141 SBSMR+ | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 105°C | - | - |
|
|
CA-RSPNMA020COAX CBL RP-SMA TO N-TYPE |
1,897 |
|
Datasheet |
- | Bag | Active | RP-SMA to N-Type | RP-SMA Plug | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 240.0" (6.1m) 20.0' | - | - | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CC58T-25COAX CBL TNC TO TNC |
4,948 |
|
Datasheet |
- | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | RG-58C | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
FMC0808058-24COAX CBL BNC TO BNC |
4,536 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | - | -65°C ~ 165°C | - | - |
|
|
1340143COAX CBL SMA TO N-TYPE |
3,990 |
|
Datasheet |
- | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | - | - | - | 50 Ohms | 7.25 GHz | Black | - | - | - | - |
|
|
CA-SMNMA010COAX CBL SMA TO N-TYPE |
1,341 |
|
Datasheet |
- | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | - | - | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
CCS58AB-5COAX CBL BNC TO SMA |
1,160 |
|
Datasheet |
- | Bag | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-58C | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
CA-UFLSBQC20COAX CBL U.FL TO SMA |
4,292 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CC174S-1COAX CBL SMA TO SMA |
4,560 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CA-SMNFA002COAX CBL SMA TO N-TYPE |
2,032 |
|
Datasheet |
- | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | - | - | 50 Ohms | - | Black | - | - | - | - |
