Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3M0235-24COAX CBL SMA TO N-TYPE |
1,879 |
|
Datasheet |
- | Retail Package | Active | SMA to N-Type | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|

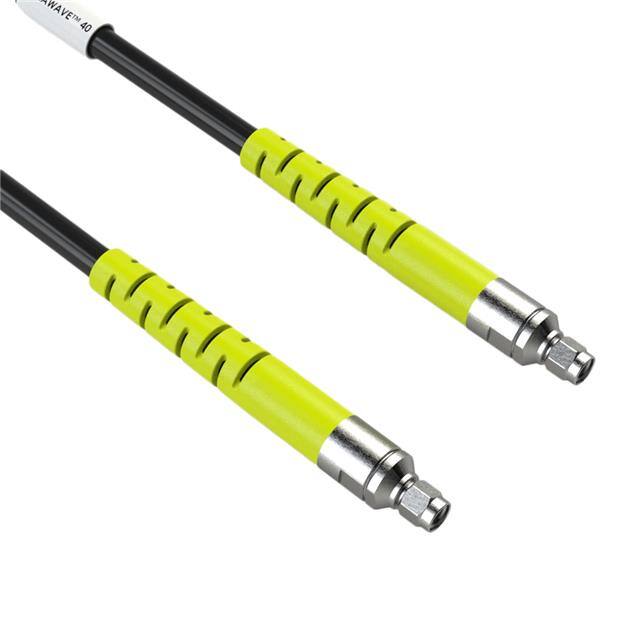

400-0542-00COAX CBL 2.92MM TO 2.92MM |
1,326 |
|
Datasheet |
Durawave | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 23.62" (600.00mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 40 GHz | Black | Armored Cable, Ruggedized, Shielded Stainless Steel, Test Cable | -45°C ~ 85°C | - | - |
|
|
PE3M0230-36COAX CBL SMA TO N-TYPE |
3,893 |
|
Datasheet |
- | Retail Package | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE3960-96LC Male to LC Male Cable 96 Inch |
3,861 |
|
Datasheet |
- | Retail Package | Active | LC to LC | LC Plug | Male | Free Hanging (In-Line) | - | LC Plug | Male | Free Hanging (In-Line) | - | 96.0" (2.4m) 8.0' | RG-218 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE3M0133-200CMCOAX CBL SMA TO N-TYPE |
2,197 |
|
Datasheet |
- | Retail Package | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 78.7" (2.0m) 6.6' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE3M0143-12COAX CBL SMA TO N-TYPE |
1,641 |
|
Datasheet |
- | Retail Package | Active | SMA to N-Type | SMA Jack | Female | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
WT300-VM1VM1-12INCHCOAX CBL 1.85MM TO 1.85MM |
4,027 |
|
Datasheet |
WT | Bag | Active | 1.85mm to 1.85mm | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | - | - | 50 Ohms | 67 GHz | Black | - | -55°C ~ 125°C | - | - |
|
|
PE3VNA2603-48COAX CBL 3.5MM TO 3.5MM |
2,602 |
|
Datasheet |
- | Retail Package | Active | 3.5mm to 3.5mm | 3.5mm Plug | Male | Free Hanging (In-Line) | - | 3.5mm Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | VNA | 50 Ohms | 50 Ohms | 50 Ohms | 26.5 GHz | - | - | 125°C | - | - |
|
|
PE3M0230-100CMCOAX CBL SMA TO N-TYPE |
1,097 |
|
Datasheet |
- | Retail Package | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 39.4" (1.0m) 3.3' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE3M0241-36Temperature Conditioned TNC Male |
4,808 |
|
- |
- | Retail Package | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | - | - | - |
|
|
PE37774-24LC Male Right Angle to LC Male R |
2,315 |
|
Datasheet |
- | Retail Package | Active | LC to LC | LC Plug, Right Angle | Male | Free Hanging (In-Line) | - | LC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-393 | 50 Ohms | 50 Ohms | 50 Ohms | - | Tan | - | - | - | - |
|
|
PE3M0195-8COAX CBL SMA TO N-TYPE |
3,066 |
|
Datasheet |
- | Retail Package | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 8.000" (203.20mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | - | - | -55°C ~ 125°C | - | - |
|
|
PE3C5287-200CMCOAX CBL N-TYPE TO N-TYPE |
4,047 |
|
Datasheet |
- | Retail Package | Active | N-Type to N-Type | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | - | - | - |
|
|
PE3M0228-12Temperature Conditioned SMA Male |
4,106 |
|
Datasheet |
- | Retail Package | Active | SMA to TNC | SMA Plug | Male | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE3M0127-200CMCOAX CBL SMA TO SMA |
2,007 |
|
Datasheet |
- | Retail Package | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE3C5998-50CMCOAX CBL 1.85MM TO 1.85MM |
1,163 |
|
Datasheet |
- | Retail Package | Active | 1.85mm to 1.85mm | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 67 GHz | - | - | -40°C ~ 125°C | - | - |
|
|
PE3M0248-36COAX CBL N-TYPE TO N-TYPE |
3,749 |
|
Datasheet |
- | Retail Package | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE38313-36COAX CBL 7/16 DIN TO LC |
1,013 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to LC | 7/16 Plug | Male | Free Hanging (In-Line) | - | LC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-218 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -40°C ~ 80°C | - | - |
|
|
PE38313-48COAX CBL 7/16 DIN TO LC |
3,519 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to LC | 7/16 Plug | Male | Free Hanging (In-Line) | - | LC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-218 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -40°C ~ 80°C | - | - |
|
|
PE3M0194-8COAX CBL SMA TO N-TYPE |
3,991 |
|
Datasheet |
- | Retail Package | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 8.000" (203.20mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
