Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3C6633-60COAX CBL 1.85MM TO SMA |
3,666 |
|
Datasheet |
- | Retail Package | Active | 1.85mm to SMA | 1.85mm Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 26.5 GHz | Gray | - | - | - | - |
|
|
PE3C5266-150CMCOAX CBL SMA TO TNC |
4,691 |
|
Datasheet |
- | Retail Package | Active | SMA to TNC | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 59.1" (1.5m) 4.9' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | - | - | - |
|
|
PE3C5276-48COAX CBL SMA TO N-TYPE |
3,726 |
|
Datasheet |
- | Retail Package | Active | SMA to N-Type | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | - | - | - |
|
|
PE3C5271-36COAX CBL N-TYPE TO TNC |
2,977 |
|
Datasheet |
- | Retail Package | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | - | - | - |
|
|
PE3C5286-36COAX CBL N-TYPE TO N-TYPE |
2,707 |
|
Datasheet |
- | Retail Package | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | - | - | - |
|
|
PE3C5266-60COAX CBL SMA TO TNC |
3,455 |
|
Datasheet |
- | Retail Package | Active | SMA to TNC | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 60.0" (1.5m) 5.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | - | - | - |
|
|
PE3C5263-48COAX CBL SMA TO TNC |
2,205 |
|
Datasheet |
- | Retail Package | Active | SMA to TNC | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | - | - | - |
|
|
PE3C5283-36COAX CBL N-TYPE TO TNC |
3,661 |
|
Datasheet |
- | Retail Package | Active | N-Type to TNC | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | - | - | - |
|
|
PE3C10371-120Fire Rated 4.3-10 Male to 7/16 D |
3,341 |
|
- |
- | Retail Package | Active | 4.3/10 to 7/16 DIN | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | LMR 600 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|

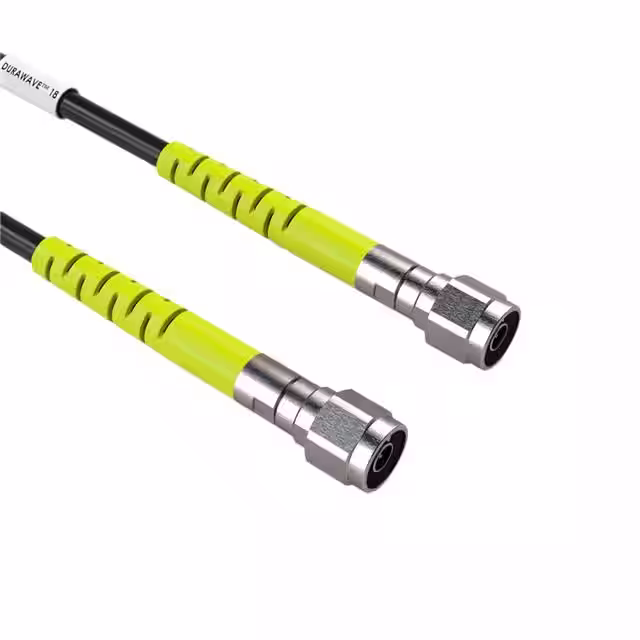

400-0234-01COAX CBL N-TYPE TO N-TYPE |
4,255 |
|
Datasheet |
Durawave | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 39.37" (1000.00mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Black | Armored Cable, Ruggedized, Shielded Stainless Steel, Test Cable | -45°C ~ 85°C | - | - |
|
|
400-0725-00COAX CBL 2.92MM TO 2.92MM |
3,596 |
|
Datasheet |
FastEdge | Bag | Active | 2.92mm to 2.92mm | 2.92mm Jack | Female | Free Hanging (In-Line) | - | 2.92mm Jack | Female | Free Hanging (In-Line) | - | 19.69" (500.00mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 40 GHz | Blue | Flexible, Double-Shielded, Test Cable | -45°C ~ 125°C | - | - |
|
|
PE3M0226-18Temperature Conditioned SMA Male |
3,606 |
|
Datasheet |
- | Retail Package | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE3M0238-12Temperature Conditioned TNC Male |
3,025 |
|
- |
- | Retail Package | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE3M0133-72COAX CBL SMA TO N-TYPE |
4,800 |
|
Datasheet |
- | Retail Package | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 72.0" (1.8m) 6.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE3C5254-100CMCOAX CBL TNC TO TNC |
2,692 |
|
Datasheet |
- | Retail Package | Active | TNC to TNC | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | - | - | - |
|
|
CA10004-24COAX CBL 2.4MM TO 2.4MM |
1,808 |
|
- |
- | Case | Active | 2.4mm to 2.4mm | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | - | - | - | 50 GHz | - | - | - | - | - |
|
400-0134-01COAX CBL SMA TO SMA |
4,214 |
|
Datasheet |
Durawave | Bag | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 39.37" (1000.00mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 26.5 GHz | Black | Armored Cable, Ruggedized, Shielded Stainless Steel, Test Cable | -45°C ~ 85°C | - | - |
|
|
VT50-01000LMFLMF-NCOAX CBL 2.4MM TO 2.4MM |
3,772 |
|
- |
VT50 | Bulk | Active | 2.4mm to 2.4mm | 2.4mm Jack | Female | Free Hanging (In-Line) | - | 2.4mm Jack | Female | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | 3.60mm OD Coaxial Cable | - | - | 50 Ohms | 50 GHz | Blue | - | -55°C ~ 125°C | - | - |
|
|
VT50-01000LMMLMM-NCOAX CBL 2.4MM TO 2.4MM |
4,177 |
|
- |
VT50 | Bulk | Active | 2.4mm to 2.4mm | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | 3.60mm OD Coaxial Cable | - | - | 50 Ohms | 50 GHz | Blue | - | -55°C ~ 125°C | - | - |
|
|
PE3C10372-120Fire Rated 4.3-10 Male to N Male |
3,601 |
|
Datasheet |
- | Retail Package | Active | 4.3/10 to N-Type | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | LMR 600 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
