Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3W07540-48SMA Female Bulkhead to SSMC Plug |
2,495 |
|
Datasheet |
- | Retail Package | Active | SMA to SSMC | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SSMC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 100 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|

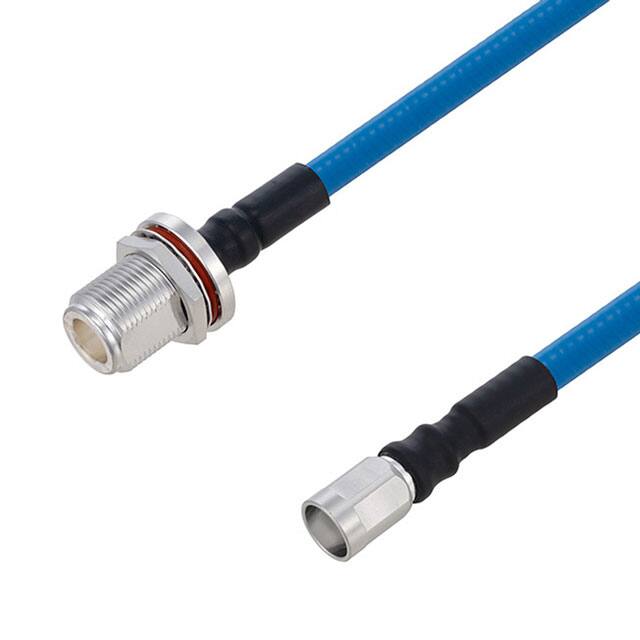

PE3C6255-36COAX CBL N-TYPE TO NEX |
3,253 |
|
Datasheet |
- | Bag | Active | N-Type to NEX | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | NEX10 Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
PE3C6184-60COAX CBL 4.3/10 TO 7/16 DIN |
2,480 |
|
Datasheet |
- | Bag | Active | 4.3/10 to 7/16 DIN | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
|
PE3C8747/BK-300COAX CBL HD-BNC TO HD-BNC |
2,947 |
|
Datasheet |
- | Tape & Box (TB) | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | Belden 4855R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Black | - | -30°C ~ 75°C | - | - |
|
|
PE38830-36TNC Male to TNC Male Cable 36 In |
2,680 |
|
Datasheet |
- | Retail Package | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | PE-B100 | 50 Ohms | 50 Ohms | - | - | Black | - | - | - | - |
|
|
PE3C6350-50CMCOAX CBL 4.3/10 TO 7/16 DIN |
4,784 |
|
Datasheet |
- | Retail Package | Active | 4.3/10 to 7/16 DIN | 4.3/10 Jack | Female | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | SPF-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|
|
PE3C6351-100CMFire Rated 4.3-10 Female to N Ma |
1,799 |
|
Datasheet |
- | Retail Package | Active | 4.3/10 to N-Type | 4.3/10 Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | SPF-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -55°C ~ 200°C | - | - |
|
|
PE3W03530-12COAX CBL 7/16 DIN TO 7/16 DIN |
2,475 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to 7/16 DIN | 7/16 Plug | Male | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | - | - | - | - |
|
|
PE34491LF-48SMB Plug to SMB Jack Bulkhead Ca |
1,354 |
|
Datasheet |
- | Retail Package | Active | SMB to SMB | SMB Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE34509-48SMC Plug to SMC Jack Bulkhead Ca |
4,567 |
|
Datasheet |
- | Retail Package | Active | SMC to SMC | SMC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE34491-48SMB Plug to SMB Jack Bulkhead Ca |
1,771 |
|
Datasheet |
- | Retail Package | Active | SMB to SMB | SMB Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE3C3197-12COAX CBL SMA TO SMA |
1,102 |
|
Datasheet |
- | Retail Package | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
PE34071-6COAX CBL SMA TO SMA |
2,835 |
|
Datasheet |
- | Retail Package | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 6.000" (152.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE3W04623-48COAX CBL RP-SMA TO SMA |
3,367 |
|
Datasheet |
- | Retail Package | Active | RP-SMA to SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | 0.086" Semi-Rigid Cable | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Black | - | - | - | - |
|
|
PE3C8746/VL-300COAX CBL 1.0/2.3 TO 1.0/2.3 |
4,764 |
|
Datasheet |
- | Tape & Box (TB) | Active | 1.0/2.3 to 1.0/2.3 | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | Belden 4694R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Violet | - | -30°C ~ 75°C | - | - |
|
|
PE3C8746/RD-300COAX CBL 1.0/2.3 TO 1.0/2.3 |
1,858 |
|
Datasheet |
- | Tape & Box (TB) | Active | 1.0/2.3 to 1.0/2.3 | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | Belden 4694R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Red | - | -30°C ~ 75°C | - | - |
|
|
PE3C8746/BK-300COAX CBL 1.0/2.3 TO 1.0/2.3 |
2,001 |
|
Datasheet |
- | Tape & Box (TB) | Active | 1.0/2.3 to 1.0/2.3 | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | Belden 4694R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Black | - | -30°C ~ 75°C | - | - |
|
|
PE3C8746/OR-300COAX CBL 1.0/2.3 TO 1.0/2.3 |
3,432 |
|
Datasheet |
- | Tape & Box (TB) | Active | 1.0/2.3 to 1.0/2.3 | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | Belden 4694R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Orange | - | -30°C ~ 75°C | - | - |
|
|
PE3C8746/YW-300COAX CBL 1.0/2.3 TO 1.0/2.3 |
2,156 |
|
Datasheet |
- | Tape & Box (TB) | Active | 1.0/2.3 to 1.0/2.3 | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | Belden 4694R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Yellow | - | -30°C ~ 75°C | - | - |
|
|
PE3C8746/WH-300COAX CBL 1.0/2.3 TO 1.0/2.3 |
3,484 |
|
Datasheet |
- | Tape & Box (TB) | Active | 1.0/2.3 to 1.0/2.3 | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | Belden 4694R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | White | - | -30°C ~ 75°C | - | - |
