Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CB1.17LL-2IPX-229MMCOAX CBL U.FL MHF1 TO U.FL MHF1 |
102 |
|
Datasheet |
MHF® I | Bulk | Active | U.FL (UMCC), I-PEX MHF1 to U.FL (UMCC), I-PEX MHF1 | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.016" (229.00mm) | 1.17mm OD LL Coaxial Cable | 50 Ohms | - | 50 Ohms | 9 GHz | Gray | Low Loss Shielded | -40°C ~ 90°C | - | - |
|
|
FE-RG6-1515ft RG6 Quad Shield Coax Cable |
3,551 |
|
Datasheet |
FE | Bulk | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 180.0" (4.6m) 15.0' | RG-6 | 75 Ohms | 75 Ohms | - | 3 GHz | Black | - | - | - | - |
|
|
FE-RG6-2020ft RG6 Quad Shield Coax Cable |
1,751 |
|
Datasheet |
FE | Bulk | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 240.0" (6.1m) 20.0' | RG-6 | 75 Ohms | 75 Ohms | - | 3 GHz | Black | - | - | - | - |
|
|
FE-RG6-3535ft RG6 Quad Shield Coax Cable |
3,957 |
|
Datasheet |
FE | Bulk | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 420.0" (10.7m) 35.0' | RG-6 | 75 Ohms | 75 Ohms | - | 3 GHz | Black | - | - | - | - |
|
|
FE-BNC-5050ft BNC RG59/Coax Cable M/M |
3,174 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CB1.17LL-IPX-MCLFGT-12INCOAX CBL MHF1 TO MMCX |
4,118 |
|
Datasheet |
MHF® I | Bulk | Active | I-PEX MHF1 to MMCX | MMCX Jack, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 1.17mm OD LL Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Gray | Low Loss Shielded | -40°C ~ 90°C | - | - |
|
RG621012WFCOAX CBL F-TYPE TO F-TYPE |
3,208 |
|
- |
- | Bulk | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 144.0" (3.7m) 12.0' | RG-6 | - | - | - | 3 GHz | White | - | - | - | - |
|

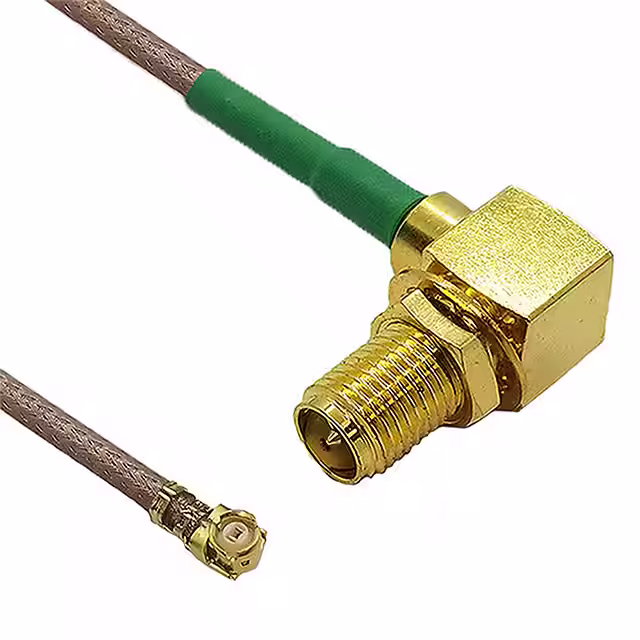

CBG-IPX-SALRF3GT-4INCOAX CBL MHF1 TO RP-SMA |
1,934 |
|
Datasheet |
MHF® I | Bulk | Active | I-PEX MHF1 to RP-SMA | RP-SMA Jack, Right Angle | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 4.000" (101.60mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -40°C ~ 90°C | - | - |
|
|
PE3CA1021-3COAX CBL RP-SMA TO WMCX |
4,611 |
|
Datasheet |
- | Retail Package | Active | RP-SMA to WMCX | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | WMCX Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | 0.81mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | - | - | -55°C ~ 125°C | - | - |
|
|
PE3CA1016-3COAX CBL RP-SMA TO UMCX |
2,792 |
|
Datasheet |
- | Retail Package | Active | RP-SMA to UMCX | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | UMCX Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | 0.81mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | - | - | -55°C ~ 125°C | - | - |
|
|
CBG-IPX-SALRF3GT-6INCOAX CBL MHF1 TO RP-SMA |
3,044 |
|
Datasheet |
MHF® I | Bulk | Active | I-PEX MHF1 to RP-SMA | RP-SMA Jack, Right Angle | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -40°C ~ 90°C | - | - |
|
|
PE3CA1019-6COAX CBL RP-SMA TO UMCX |
1,963 |
|
Datasheet |
- | Retail Package | Active | RP-SMA to UMCX | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | UMCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | - | - | -55°C ~ 125°C | - | - |
|
|
CBG-IPX-SALRF3GT-8INCOAX CBL MHF1 TO RP-SMA |
4,420 |
|
Datasheet |
MHF® I | Bulk | Active | I-PEX MHF1 to RP-SMA | RP-SMA Jack, Right Angle | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 8.000" (203.20mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -40°C ~ 90°C | - | - |
|
|
CBG-IPX-SALRF3GT-10INCOAX CBL MHF1 TO RP-SMA |
3,970 |
|
Datasheet |
MHF® I | Bulk | Active | I-PEX MHF1 to RP-SMA | RP-SMA Jack, Right Angle | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 10.000" (254.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -40°C ~ 90°C | - | - |
|
|
FE-BNC-7575ft BNC RG59/Coax Cable M/M |
3,154 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PE3CA1053-12COAX CBL UMCX TO UMCX |
4,806 |
|
Datasheet |
- | Retail Package | Active | UMCX to UMCX | UMCX Plug | Male | Free Hanging (In-Line) | - | UMCX Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 1.37mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | - | - | -55°C ~ 125°C | - | - |
|
|
CBG-IPX-SALRF3GT-12INCOAX CBL MHF1 TO RP-SMA |
1,588 |
|
Datasheet |
MHF® I | Bulk | Active | I-PEX MHF1 to RP-SMA | RP-SMA Jack, Right Angle | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 10.000" (254.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -40°C ~ 90°C | - | - |
|
|
FE-SDI6-1515ft 6G SDI BNC RG6 Coax Cable |
3,452 |
|
Datasheet |
FE | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 180.0" (4.6m) 15.0' | RG-6 | - | 75 Ohms | - | - | Black | - | - | - | - |
|
|
PE3CA1033-3COAX CBL RP-SMA TO UMCX |
3,486 |
|
Datasheet |
- | Retail Package | Active | RP-SMA to UMCX | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | UMCX Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | 0.81mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | - | - | -55°C ~ 125°C | - | - |
|
|
PE3CA1022-3COAX CBL RP-SMA TO HMCX |
4,450 |
|
Datasheet |
- | Retail Package | Active | RP-SMA to HMCX | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | HMCX Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | 0.81mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | - | - | -55°C ~ 125°C | - | - |
