Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

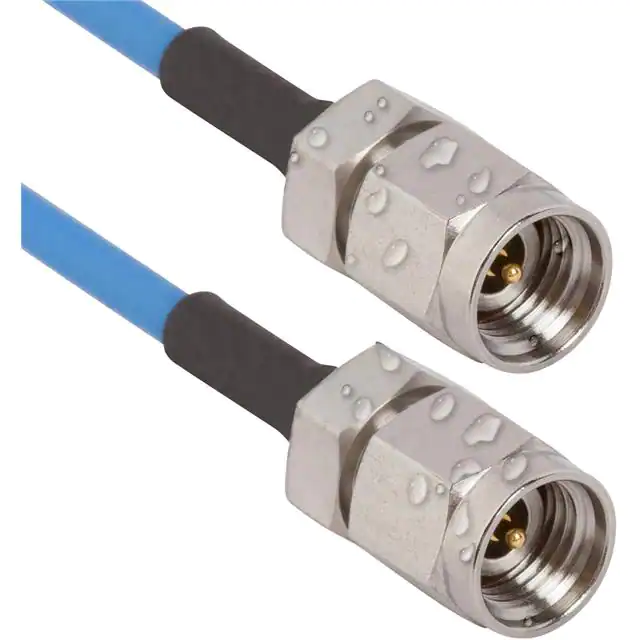

7015-1051COAX CBL 2.92MM TO 2.92MM |
2,467 |
|
Datasheet |
- | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFlex-405 | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
MCA3.J0610JCOAX CBL 2.92MM TO 2.92MM |
1,776 |
|
Datasheet |
- | Bulk | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | GORE™ 3506 | - | - | - | 40 GHz | Black | Shielded | - | - | - |
|
NANOBEND 2MR-6SMPM(F) TO SMPM(F) |
4,688 |
|
- |
NANOBEND | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TM7SSSH28R8MS031CCOAX CBL 1.85MM TO HC2 |
4,394 |
|
Datasheet |
CoreHC | Bag | Active | 1.85mm to HC2 | 1.85mm Plug | Male | Free Hanging (In-Line) | - | HC2 (8) | - | Free Hanging (In-Line) | - | 12.20" (310.00mm) | 2.00mm OD Coaxial Cable | - | - | 50 Ohms | 65 GHz | Teal | - | -65°C ~ 150°C | - | - |
|
|
PMA SF550E/11PC24/11PC24/36INCOAX CBL 2.4MM TO 2.4MM |
1,469 |
|
Datasheet |
Sucoflex® 500 | Bag | Active | 2.4mm to 2.4mm | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | 3.70mm OD Coaxial Cable | 50 Ohms | - | - | 50 GHz | Blue | - | -55°C ~ 125°C | - | - |
|
|
PMA SF550E/11PC24/11PC24/24INCOAX CBL 2.4MM TO 2.4MM |
4,209 |
|
Datasheet |
Sucoflex® 500 | Bag | Active | 2.4mm to 2.4mm | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 3.70mm OD Coaxial Cable | 50 Ohms | - | - | 50 GHz | Blue | - | -55°C ~ 125°C | - | - |
|
|
HV-2P-IW-A-6INCOAX CBL 1.85MM TO 1.85MM |
4,587 |
|
Datasheet |
1.85mm | Bag | Active | 1.85mm to 1.85mm | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | - | - | - | 50 Ohms | 65 GHz | - | - | -55°C ~ 105°C | - | - |
|
|
HV-2P-IW-A-12INCOAX CBL 1.85MM TO 1.85MM |
3,525 |
|
Datasheet |
1.85mm | Bag | Active | 1.85mm to 1.85mm | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | - | - | 50 Ohms | 65 GHz | - | - | -55°C ~ 105°C | - | - |
|
|
SF550S/11PC24/11PC24/36INCOAX CBL 2.4MM TO 2.4MM |
4,464 |
|
Datasheet |
Sucoflex® 500 | Bulk | Active | 2.4mm to 2.4mm | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | - | - | 50 Ohms | 50 GHz | Blue | - | -55°C ~ 125°C | - | - |
|
|
PMASF526S/11PC35/11PC35/36INCOAX CBL 3.5MM TO 3.5MM |
3,638 |
|
Datasheet |
Sucoflex® 500 | Bag | Active | 3.5mm to 3.5mm | 3.5mm Plug | Male | Free Hanging (In-Line) | - | 3.5mm Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | 7.70mm OD Coaxial Cable | 50 Ohms | - | - | 26.5 GHz | Blue | - | -50°C ~ 125°C | - | - |
|
|
PMASF550S/11SK/11SK/24INCOAX CBL 2.92MM TO 2.92MM |
4,562 |
|
Datasheet |
Sucoflex® 500 | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 3.70mm OD Coaxial Cable | 50 Ohms | - | - | 40 GHz | Blue | - | -50°C ~ 125°C | - | - |
|
|
HV-2P-IW-A-24INCOAX CBL 1.85MM TO 1.85MM |
4,490 |
|
Datasheet |
1.85mm | Bag | Active | 1.85mm to 1.85mm | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | - | - | 50 Ohms | 65 GHz | - | - | -55°C ~ 105°C | - | - |
|
|
HV-2P-IW-A-36INCOAX CBL 1.85MM TO 1.85MM |
1,891 |
|
Datasheet |
1.85mm | Bag | Active | 1.85mm to 1.85mm | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | - | - | 50 Ohms | 65 GHz | - | - | -55°C ~ 105°C | - | - |
|
|
HV-2P-IW-A-48INCOAX CBL 1.85MM TO 1.85MM |
2,861 |
|
Datasheet |
1.85mm | Bag | Active | 1.85mm to 1.85mm | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | - | - | 50 Ohms | 65 GHz | - | - | -55°C ~ 105°C | - | - |
|
|
SF570S/11PC185/11PC185/48INCOAX CBL 1.85MM TO 1.85MM |
2,897 |
|
- |
Sucoflex® 500 | Bag | Active | 1.85mm to 1.85mm | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | 5.80mm OD Coaxial Cable | 50 Ohms | - | - | 70 GHz | Blue | - | -55°C ~ 125°C | - | - |
|
1-2016487-0COAX CBL 1.85MM TO 1.85MM |
2,196 |
|
Datasheet |
- | Box | Active | 1.85mm to 1.85mm | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | 4.90mm OD Coaxial Cable | - | - | 50 Ohms | 70 GHz | Black | Armored Cable, Shielded | -55°C ~ 125°C | - | - |
|

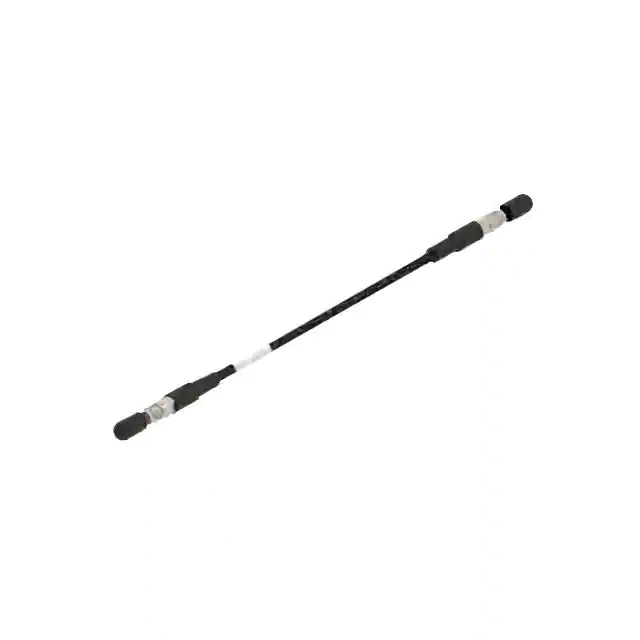

1-2016489-0COAX CBL 1.85MM TO 1.85MM |
4,653 |
|
Datasheet |
- | Box | Active | 1.85mm to 1.85mm | 1.85mm Jack | Female | Free Hanging (In-Line) | - | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | 4.90mm OD Coaxial Cable | - | - | 50 Ohms | 70 GHz | Black | Armored Cable, Shielded | -55°C ~ 125°C | - | - |
|
|
1-2016488-0COAX CBL 1.85MM TO 1.85MM |
3,678 |
|
Datasheet |
- | Box | Active | 1.85mm to 1.85mm | 1.85mm Jack | Female | Free Hanging (In-Line) | - | 1.85mm Jack | Female | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | 4.90mm OD Coaxial Cable | - | - | 50 Ohms | 70 GHz | Black | Armored Cable, Shielded | -55°C ~ 125°C | - | - |
|
|
2016742-6COAX CBL SMPM TO 2.92MM |
1,896 |
|
Datasheet |
Blind-Mate Coaxial | Bag | Active | SMPM to 2.92mm | SMPM Plug (8) | Male | Free Hanging (In-Line) | - | 2.92mm Plug (8) | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | - | - | 50 Ohms | 40 GHz | Blue | - | -40°C ~ 85°C | - | - |
|
|
CLS110-10M10M-15.00COAX CBL 1.0MM TO 1.0MM |
2,417 |
|
Datasheet |
Clarity™ | Bag | Active | 1.0mm to 1.0mm | 1.0mm Plug | Male | Free Hanging (In-Line) | - | 1.0mm Plug | Male | Free Hanging (In-Line) | - | - | - | - | - | 50 Ohms | 110 GHz | - | Armored Cable, Shielded | -55°C ~ 125°C | - | - |
