Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
636208080150COAX CBL U.FL TO SMA |
4,909 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.32mm OD Coaxial Cable | - | - | - | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
|
F6-6BCOAX CBL F-TYPE TO F-TYPE |
3,780 |
|
Datasheet |
F | Bulk | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-6 | 75 Ohms | - | 73 Ohms | - | Black | Shielded | - | - | - |
|
RF316-03RP1-03SP1-0305COAX CBL MMCX TO MMCX |
4,212 |
|
Datasheet |
RF316 | Bag | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.01" (305.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Amber | - | -50°C ~ 165°C | - | - |
|
415-0004-MM500COAX CBL SMB TO SMB |
4,426 |
|
Datasheet |
- | Bulk | Active | SMB to SMB | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

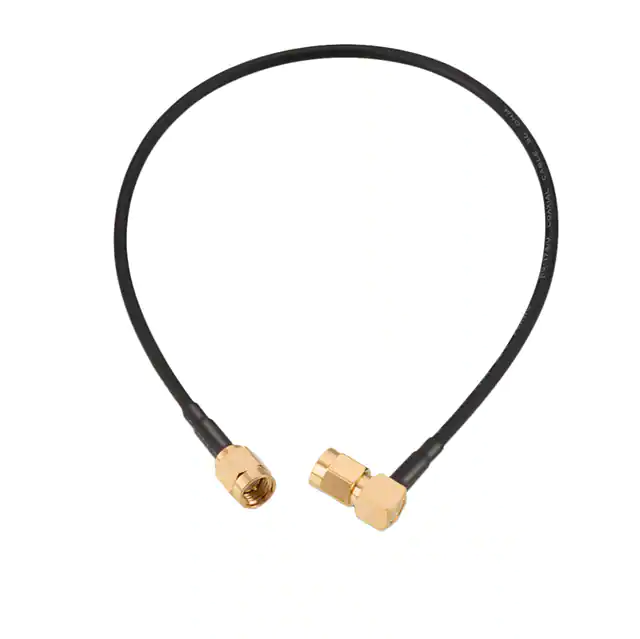

65503503615303COAX CBL SMA TO SMA |
3,516 |
|
Datasheet |
WR-CXASY | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | -20°C ~ 80°C | - | - |
|
|
636210040300COAX CBL U.FL TO RP-SMA |
3,401 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
636210050300COAX CBL U.FL TO RP-SMA |
2,621 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
|
|
RF174-03SP1-03SP1-0305COAX CBL MMCX TO MMCX |
2,670 |
|
Datasheet |
RF174 | Bag | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 12.01" (305.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -50°C ~ 90°C | - | - |
|
|
RF174-01BJ1-07RP1-0152COAX CBL SMA TO SMB |
3,210 |
|
Datasheet |
RF174 | Bag | Active | SMA to SMB | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.984" (152.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -50°C ~ 90°C | - | - |
|
415-0071-MM500COAX CBL SMA TO MMCX |
4,199 |
|
Datasheet |
- | Bulk | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | White | Shielded | - | - | - |
|
CA-BNC-P-P-01-915LCOAX CBL BNC TO BNC |
1,625 |
|
Datasheet |
CA | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
095-900-556-300COAX CBL AMC4 TO MMCX |
1,109 |
|
Datasheet |
- | Bag | Active | AMC4 to MMCX | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
ASMGAL010XC137S11COAX CBL SMA TO MHF4 |
1,091 |
|
Datasheet |
- | Bulk | Active | SMA to I-PEX MHF4 | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -20°C ~ 60°C | - | - |
|
|
636210100300COAX CBL U.FL TO RP-SMA |
3,498 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
636210110300COAX CBL U.FL TO RP-SMA |
3,144 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
|
|
636208050250COAX CBL U.FL TO SMA |
4,280 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 1.13mm OD Coaxial Cable | - | - | - | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
|
|
636210080300COAX CBL U.FL TO RP-SMA |
2,601 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
|
|
636210070300COAX CBL U.FL TO RP-SMA |
2,283 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
RF316-05BJ3-03SP1-0152COAX CBL MMCX TO TNC |
1,057 |
|
Datasheet |
RF316 | Bag | Active | MMCX to TNC | MMCX Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 5.984" (152.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Amber | - | -50°C ~ 165°C | - | - |
|
|
636208110250COAX CBL U.FL TO SMA |
4,462 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 1.37mm OD Coaxial Cable | - | - | - | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
