Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CCMX1-MM-RG316-6COAX CBL MMCX TO MMCX |
1,198 |
|
Datasheet |
CCMX1 | Bag | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C | - | - |
|
CCMX-MM-RG316-6COAX CBL MMCX TO MMCX |
3,125 |
|
Datasheet |
CCMX | Bag | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C | - | - |
|

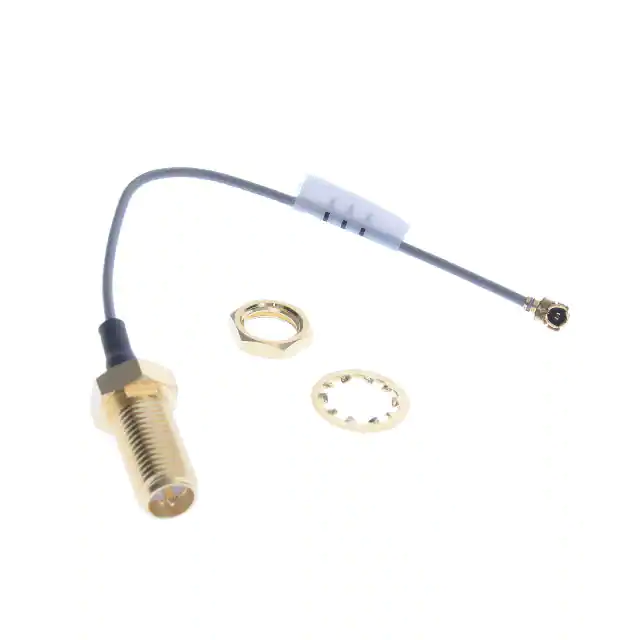

MH113-MH1RP-01BJ2-0100COAX CBL U.FL MHF1 TO RP-SMA |
2,231 |
|
Datasheet |
MH113 | Bag | Active | U.FL (UMCC), I-PEX MHF1 to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C | - | - |
|
ASMGA0075XB113S11COAX CBL SMA TO MHF4 |
1,811 |
|
Datasheet |
- | Bulk | Active | SMA to I-PEX MHF4 | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 2.953" (75.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -20°C ~ 60°C | - | - |
|
0732305344COAX CBL MCX TO MCX |
2,753 |
|
Datasheet |
73230 | Bulk | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | 50 Ohms | - | - | - | - | - | - | - | - |
|
RFC-RMNM-4FCOAX CBL RP-SMA TO N-TYPE |
2,911 |
|
Datasheet |
- | Bulk | Active | RP-SMA to N-Type | RP-SMA Plug | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
336314-14-0300COAX CBL U.FL AMC TO RP-SMA |
1,931 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
0732305411COAX CBL SMA TO SMA |
3,595 |
|
Datasheet |
73230 | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | - | - | - | - | - | - | - |
|
0732305291COAX CBL BNC TO SMA |
1,113 |
|
Datasheet |
73230 | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-58 | 50 Ohms | - | - | - | - | - | - | - | - |
|
CSE-SBRM-305-SBRMCOAX CBL SMB TO SMB |
4,366 |
|
Datasheet |
- | Bulk | Active | SMB to SMB | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | - | 105°C | - | - |
|
|
ASMGA003XB113S11COAX CBL SMA TO MHF4 |
1,418 |
|
Datasheet |
- | Bulk | Active | SMA to I-PEX MHF4 | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.181" (30.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -20°C ~ 60°C | - | - |
|
CAB463RF-0200-A-1COAX CBL MHF1 TO RP-SMA |
4,749 |
|
Datasheet |
Nautilus | Bag | Active | I-PEX MHF1 to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Rear Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.37mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Black | IP Rated Unmated | -40°C ~ 85°C | - | - |
|
|
ASMGA0075XD113S11COAX CBL SMA TO MHF4 |
3,563 |
|
Datasheet |
- | Bulk | Active | SMA to I-PEX MHF4 | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 2.953" (75.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -20°C ~ 60°C | - | - |
|
0732305257COAX CBL BNC TO BNC |
4,472 |
|
Datasheet |
73230 | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-179 | 75 Ohms | - | - | - | - | - | - | - | - |
|
0732305322COAX CBL MCX TO MCX |
2,740 |
|
Datasheet |
73230 | Bulk | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 122.0" (3.1m) 10.2' | RG-174 | 50 Ohms | - | - | - | - | - | - | - | - |
|
|
ASMGA005XD113S11COAX CBL SMA TO MHF4 |
2,697 |
|
Datasheet |
- | Bulk | Active | SMA to I-PEX MHF4 | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -20°C ~ 60°C | - | - |
|
0732305306COAX CBL SMA TO SMA |
2,813 |
|
Datasheet |
73230 | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-174 | 50 Ohms | - | - | - | - | - | - | - | - |
|
|
CCMX-MM-RG316-12COAX CBL MMCX TO MMCX |
4,333 |
|
Datasheet |
CCMX | Bag | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C | - | - |
|
CCSMX1-FBM-RG316-12COAX CBL SMA TO MMCX |
2,099 |
|
Datasheet |
CCSMX1 | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C | - | - |
|
415-0057-012COAX CBL BNC TO BNC |
3,180 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-59 | 75 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
