Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7016-0074COAX CBL SMPS TO 2.4MM |
3,562 |
|
Datasheet |
- | Bulk | Active | SMPS to 2.4mm | SMPS Jack | Female | Free Hanging (In-Line) | - | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 50 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|

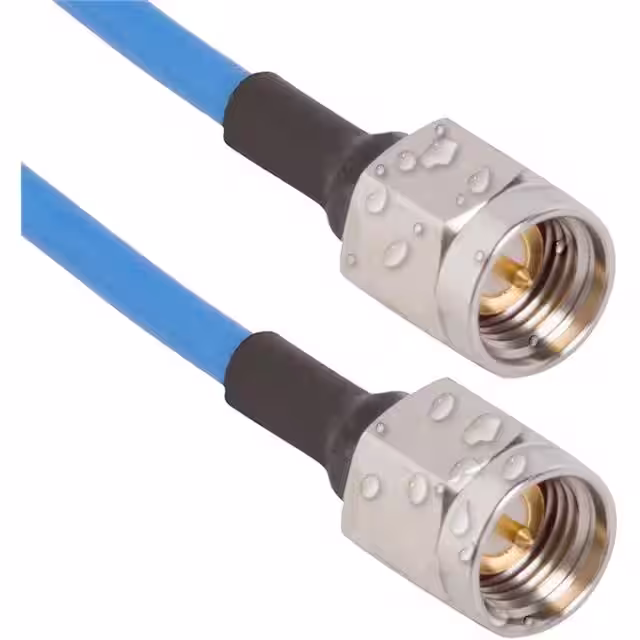

7029-3531COAX CBL SMA TO SMA |
1,862 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | - |
|
SF104/11N/11N/1500MMCOAX CBL N-TYPE TO N-TYPE |
4,506 |
|
Datasheet |
Sucoflex® 100 | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | - | - | - | 50 Ohms | 18 GHz | Blue | - | -40°C ~ 125°C | - | - |
|
095-909-164-072COAX CBL N-TYPE TO N-TYPE |
1,962 |
|
Datasheet |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | - | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
|
MGS200-KMKM-0.5MCOAX CBL 2.92MM TO 2.92MM |
3,782 |
|
Datasheet |
MaxGain® 200 | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | - | - | - | 50 Ohms | 30 GHz | Blue | - | -55°C ~ 150°C | - | - |
|
|
MGS160-KMKM-1.0MCOAX CBL 2.92MM TO 2.92MM |
2,801 |
|
Datasheet |
MaxGain® 160 | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | - | - | - | 50 Ohms | 40 GHz | Blue | - | -55°C ~ 150°C | - | - |
|
|
7033-0040COAX CBL 1.85MM TO 1.85MM |
4,205 |
|
Datasheet |
- | Bag | Active | 1.85mm to 1.85mm | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | 0.085" Flexible Cable | 50 Ohms | 50 Ohms | 50 Ohms | 65 GHz | Blue | - | -65°C ~ 165°C | - | - |
|
|
MGS300-SMSM-1.0MCOAX CBL SMA TO SMA |
4,210 |
|
Datasheet |
MaxGain® 300 | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | - | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 150°C | - | - |
|
|
MGS200-KMKM-2.0MCOAX CBL 2.92MM TO 2.92MM |
3,335 |
|
Datasheet |
MaxGain® 200 | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | - | - | - | 50 Ohms | 30 GHz | Blue | - | -55°C ~ 150°C | - | - |
|
X116BFSX10060COAX CBL 2.92MM TO 2.92MM |
3,627 |
|
Datasheet |
HPI | Bulk | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | HP 160S | - | - | 50 Ohms | 40 GHz | - | Shielded | -65°C ~ 200°C | - | - |
|
|
SF526S/11PC35/11PC35/48INCOAX CBL 3.5MM TO 3.5MM |
4,230 |
|
Datasheet |
Sucoflex® 500 | Bag | Active | 3.5mm to 3.5mm | 3.5mm Plug | Male | Free Hanging (In-Line) | - | 3.5mm Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | 7.70mm OD Coaxial Cable | 50 Ohms | - | - | 26.5 GHz | Blue | - | -55°C ~ 125°C | - | - |
|
|
SF550S/11SK/11SK/48INCOAX CBL 2.92MM TO 2.92MM |
3,945 |
|
Datasheet |
Sucoflex® 500 | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | 3.70mm OD Coaxial Cable | 50 Ohms | - | - | 40 GHz | Blue | - | -55°C ~ 125°C | - | - |
|
|
SF550S/11PC24/11PC24/48INCOAX CBL 2.4MM TO 2.4MM |
2,060 |
|
Datasheet |
Sucoflex® 500 | Bag | Active | 2.4mm to 2.4mm | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | 3.70mm OD Coaxial Cable | 50 Ohms | - | - | 50 GHz | Blue | - | -55°C ~ 125°C | - | - |
|
|
SF570S/11PC185/11PC185/36INCOAX CBL 1.85MM TO 1.85MM |
4,787 |
|
Datasheet |
Sucoflex® 500 | Bag | Active | 1.85mm to 1.85mm | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | 5.80mm OD Coaxial Cable | 50 Ohms | - | - | 70 GHz | Blue | - | -55°C ~ 125°C | - | - |
|
636201050150COAX CBL U.FL TO U.FL |
2,909 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
|
|
636201040200COAX CBL U.FL TO U.FL |
2,785 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
636201050300COAX CBL U.FL TO U.FL |
3,563 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
|
|
636201050350COAX CBL U.FL TO U.FL |
2,574 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 13.78" (350.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
|
|
636201050400COAX CBL U.FL TO U.FL |
4,663 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 15.75" (400.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
|
|
636201040450COAX CBL U.FL TO U.FL |
3,247 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 17.72" (450.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
