Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A-1PL-081-01KB2COAX CBL U.FL AMC-U.FL AMC |
1,960 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
636201081000COAX CBL U.FL TO U.FL |
4,416 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
|
A-1PA-132-300B2COAX CBL U.FL AMC-U.FL AMC |
100 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
0732305360COAX CBL MMCX TO MMCX |
3,502 |
|
Datasheet |
73230 | Bulk | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | - | - | - | - | - | - | - |
|
A-1PA-178-200N2COAX CBL U.FL AMC-U.FL AMC |
4,655 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Natural | Shielded | -40°C ~ 90°C | - | - |
|
336313-13-0200COAX CBL U.FL AMC TO SMA |
2,483 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
636209050150COAX CBL U.FL TO RP-SMA |
4,315 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.13mm OD Coaxial Cable | - | - | - | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
|
WRL-18154COAX CBL U.FL TO SMA |
3,652 |
|
- |
- | Bulk | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
A-1PA-137-680B2COAX CBL U.FL AMC-U.FL AMC |
4,033 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 26.77" (680.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
CSI-RSFB-300-UFFRCOAX CBL U.FL TO RP-SMA |
4,383 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | - | - | - |
|
|
636207070150COAX CBL U.FL TO SMA |
1,745 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.32mm OD Coaxial Cable | - | - | - | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
636207100200COAX CBL U.FL TO SMA |
1,829 |
|
Datasheet |
WR-UMRF | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.37mm OD Coaxial Cable | - | - | - | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
415-0102-150COAX CBL U.FL TO MMCX |
4,623 |
|
Datasheet |
UMC | Bulk | Active | U.FL (UMCC) to MMCX | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
A-1PA-137-850B2COAX CBL U.FL AMC-U.FL AMC |
4,296 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 33.46" (850.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
A-1PA-178-300N2COAX CBL U.FL AMC-U.FL AMC |
1,586 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Natural | Shielded | -40°C ~ 90°C | - | - |
|
|
0732305363COAX CBL MMCX TO MMCX |
1,965 |
|
Datasheet |
73230 | Bulk | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | - | - | - | - | - | - | - |
|
0732305290COAX CBL BNC TO SMA |
1,563 |
|
Datasheet |
73230 | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-58 | 50 Ohms | - | - | - | - | - | - | - | - |
|
ASMK010X174S11COAX CBL SMA TO MMCX |
1,692 |
|
Datasheet |
- | Bag | Active | SMA to MMCX | SMA Jack | Female | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 3.937" (100.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
0732305280COAX CBL BNC TO BNC |
4,209 |
|
Datasheet |
73230 | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-59 | 75 Ohms | - | - | - | - | - | - | - | - |
|

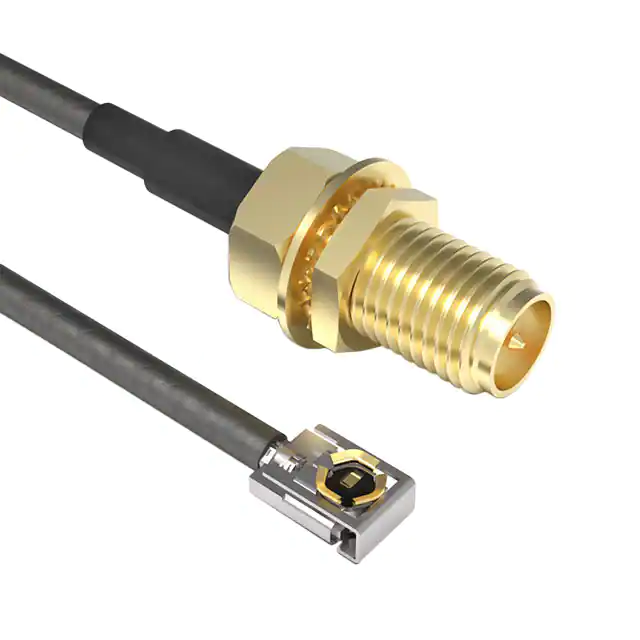

CABLE 333 RF-220-A-2COAX CBL MHF1 LK TO RP-SMA |
4,382 |
|
Datasheet |
- | Bag | Active | I-PEX MHF1 LK to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHFI LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 8.661" (220.00mm) | 1.37mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | -40°C ~ 85°C | - | - |
