Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMR-400-LSZH-TF-SFRP(QTY:200M)COAX CBL TNC TO RP-SMA |
1,000 |
|
Datasheet |
LMR® LSZH | Tape & Box (TB) | Active | TNC to RP-SMA | TNC Jack | Female | Free Hanging (In-Line) | - | RP-SMA Jack | Male | Free Hanging (In-Line) | - | 7874.0" (200.0m) 656.2' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-LSZH-SM-716FC(QTY:200M)COAX CBL SMA TO 7/16 DIN |
1,000 |
|
Datasheet |
LMR® LSZH | Tape & Box (TB) | Active | SMA to 7/16 DIN | SMA Plug | Male | Free Hanging (In-Line) | - | 7/16 Jack | Female | Free Hanging (In-Line) | - | 7874.0" (200.0m) 656.2' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-LSZH-SMRP-TM(QTY:200M)COAX CBL RP-SMA TO TNC |
1,000 |
|
Datasheet |
LMR® LSZH | Tape & Box (TB) | Active | RP-SMA to TNC | RP-SMA Plug | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 7874.0" (200.0m) 656.2' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-LSZH-NM-NF(QTY:200M)COAX CBL N-TYPE TO N-TYPE |
1,000 |
|
Datasheet |
LMR® LSZH | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 7874.0" (200.0m) 656.2' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-LSZH-TM-NF(QTY:200M)COAX CBL TNC TO N-TYPE |
1,000 |
|
Datasheet |
LMR® LSZH | Tape & Box (TB) | Active | TNC to N-Type | TNC Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 7874.0" (200.0m) 656.2' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-LSZH-UM-SMRP(QTY:200M)COAX CBL UHF TO RP-SMA |
1,000 |
|
Datasheet |
LMR® LSZH | Tape & Box (TB) | Active | UHF to RP-SMA | UHF Plug | Male | Free Hanging (In-Line) | - | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 7874.0" (200.0m) 656.2' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-240-SM-SM(QTY:400m)COAX CBL SMA TO SMA |
10,000 |
|
Datasheet |
LMR®-240 | Tape & Box (TB) | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 15748.0" (400.0m) 1312.3' | LMR 240 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-240-NM-NM(QTY:400m)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-240 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 15748.0" (400.0m) 1312.3' | LMR 240 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
SP-24-MM-24COAX CBL 2.4MM TO 2.4MM |
177 |
|
Datasheet |
StabilityPlus | Retail Package | Active | 2.4mm to 2.4mm | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 50 GHz | - | Armored Cable, Color Coded, Phase Stable, Ruggedized, Shielded | - | - | - |
|
|
Q-0A03Y000H003MCOAX CBL BNC TO SMB |
100 |
|
Datasheet |
- | Bag | Active | BNC to SMB | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Plug | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
|
LMR-900-FR-NM-NM(QTY:25M)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-900 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 984.3" (25.0m) 82.0' | LMR 900 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-900-FR-NM-NF(QTY:25M)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-900 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 984.3" (25.0m) 82.0' | LMR 900 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|

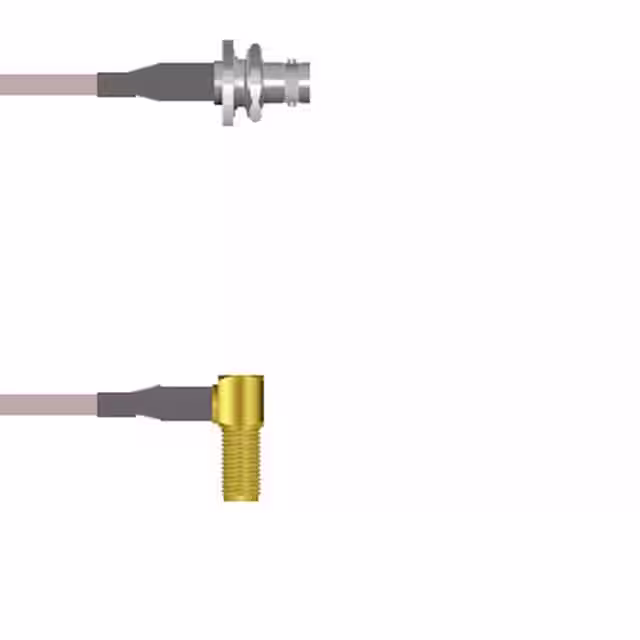

Q-0A02S000H003MCOAX CBL BNC TO SMA |
100 |
|
Datasheet |
- | Bag | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 118.1" (3.0m) 9.8' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
|
Q-0A038000H003MCOAX CBL BNC TO SMA |
100 |
|
Datasheet |
- | Bag | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

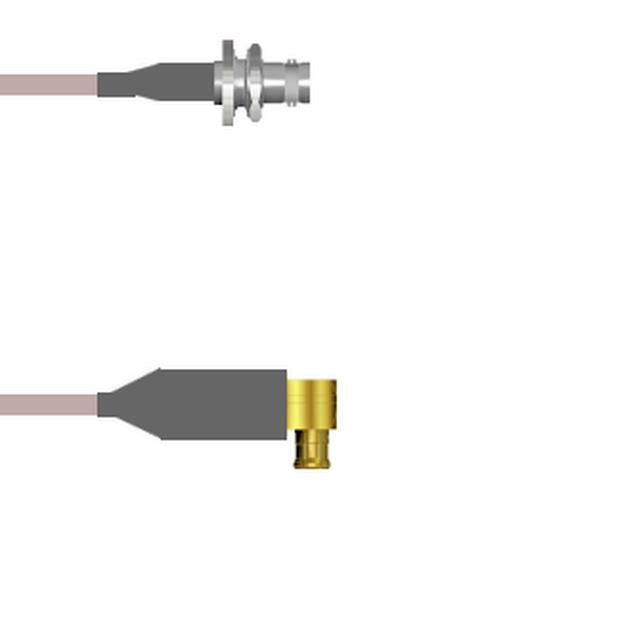

Q-0A019000H003MCOAX CBL BNC TO MCX |
100 |
|
Datasheet |
- | Bag | Active | BNC to MCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
|
LMR-900-DB-NM-NM(QTY:35M)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-900 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 1378.0" (35.0m) 114.8' | LMR 900 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-900-DB-NM-NF(QTY:35M)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-900 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 1378.0" (35.0m) 114.8' | LMR 900 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-400-UF-NM-NF(QTY:150M)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 5905.0" (150.0m) 492.1' | LMR 400 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
RG393-BM-SM(QTY:45m)COAX CBL BNC TO SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 1771.7" (45.0m) 147.6' | RG-393 | 50 Ohms | - | - | 3 GHz | - | - | -55°C ~ 200°C | - | - |
|
|
RG393-NF-NM(QTY:45m)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 1771.7" (45.0m) 147.6' | RG-393 | 50 Ohms | - | - | 3 GHz | - | - | -55°C ~ 200°C | - | - |
