Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMR-400-75-FR-NM-NM(QTY:350ft)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 4200.0" (106.7m) 350.0' | LMR 400 | 75 Ohms | - | 75 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-400-75-FR-FM-FM(QTY:350ft)COAX CBL F-TYPE TO F-TYPE |
10,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 4200.0" (106.7m) 350.0' | LMR 400 | 75 Ohms | - | 75 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|

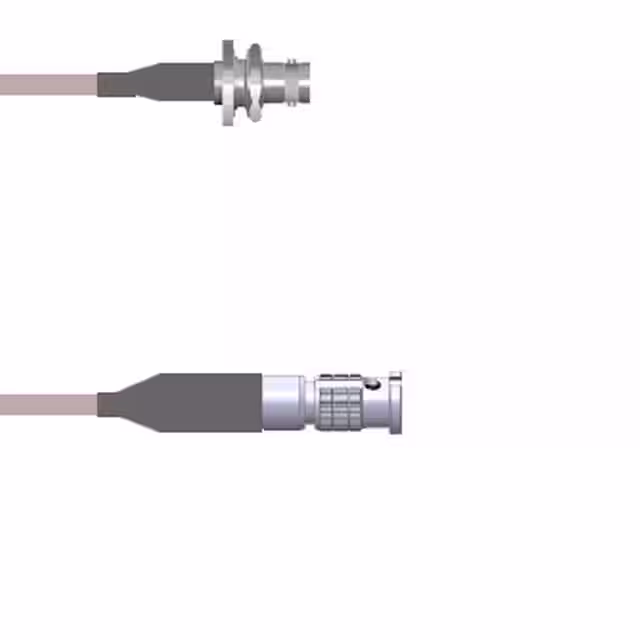

Q-0A00Y000H1.5MCOAX CBL BNC TO HD-BNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to HD-BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

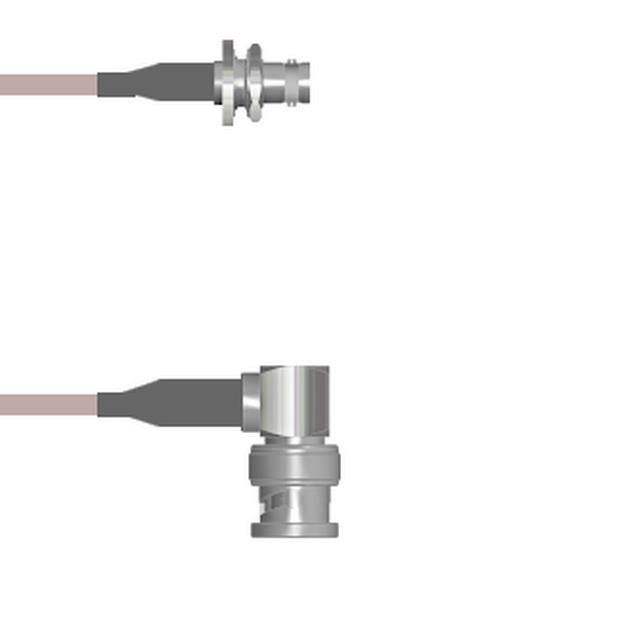

Q-0A00F000H1.5MCOAX CBL BNC TO BNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

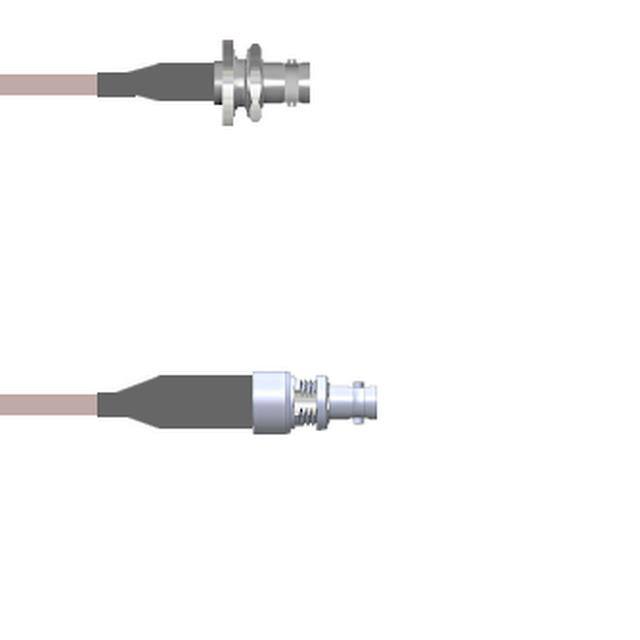

Q-0A00S000H1.5MCOAX CBL BNC TO HD-BNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to HD-BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | HD-BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 59.1" (1.5m) 4.9' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
|
LMR-400-DB-NM-NM(QTY:200M)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 7874.0" (200.0m) 656.2' | LMR 400 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-400-DB-NM-NF(QTY:200M)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 7874.0" (200.0m) 656.2' | LMR 400 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-400-DB-BM-4310(QTY:200M)COAX CBL BNC TO 4.3/10 |
1,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | BNC to 4.3/10 | BNC Plug | Male | Free Hanging (In-Line) | - | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 7874.0" (200.0m) 656.2' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-DB-SF-BF(QTY:200M)COAX CBL SMA TO BNC |
1,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | SMA to BNC | SMA Jack | Female | Free Hanging (In-Line) | - | BNC Jack | Female | Free Hanging (In-Line) | - | 7874.0" (200.0m) 656.2' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-DB-NMRA-716M(QTY:200M)COAX CBL N-TYPE TO 7/16 DIN |
1,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | N-Type to 7/16 DIN | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 7874.0" (200.0m) 656.2' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-DB-4195M-SMRA(QTY:200M)COAX CBL 4.1/9.5 TO SMA |
1,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | 4.1/9.5 to SMA | 4.1/9.5 Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 7874.0" (200.0m) 656.2' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-DB-BF-TM(QTY:200M)COAX CBL BNC TO TNC |
1,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 7874.0" (200.0m) 656.2' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-DB-4195M-4310(QTY:200M)COAX CBL 4.1/9.5 TO 4.3/10 |
1,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | 4.1/9.5 to 4.3/10 | 4.1/9.5 Plug | Male | Free Hanging (In-Line) | - | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 7874.0" (200.0m) 656.2' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-DB-716M-NF(QTY:200M)COAX CBL 7/16 DIN TO N-TYPE |
1,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | 7/16 DIN to N-Type | 7/16 Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 7874.0" (200.0m) 656.2' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-DB-NMRA-NFBH(QTY:200M)COAX CBL N-TYPE TO N-TYPE |
1,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 7874.0" (200.0m) 656.2' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-DB-4195M-BF(QTY:200M)COAX CBL 4.1/9.5 TO BNC |
1,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | 4.1/9.5 to BNC | 4.1/9.5 Plug | Male | Free Hanging (In-Line) | - | BNC Jack | Female | Free Hanging (In-Line) | - | 7874.0" (200.0m) 656.2' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-DB-716FC-TMRA(QTY:200M)COAX CBL 7/16 DIN TO TNC |
1,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | 7/16 DIN to TNC | 7/16 Jack | Female | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 7874.0" (200.0m) 656.2' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-DB-716FC-716M(QTY:200M)COAX CBL 7/16 DIN TO 7/16 DIN |
1,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | 7/16 DIN to 7/16 DIN | 7/16 Jack | Female | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 7874.0" (200.0m) 656.2' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-DB-NMRA-TMRA(QTY:200M)COAX CBL N-TYPE TO TNC |
1,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | N-Type to TNC | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 7874.0" (200.0m) 656.2' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-DB-BF-BM(QTY:200M)COAX CBL BNC TO BNC |
1,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 7874.0" (200.0m) 656.2' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
