Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMR-195-UM-SM(QTY:2Ft)COAX CBL SMA TO UHF |
1,000 |
|
Datasheet |
LMR®-195 | Spool | Active | SMA to UHF | SMA Plug | Male | Free Hanging (In-Line) | - | UHF Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 195 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-195-UM-FMEF(QTY:2Ft)COAX CBL FME TO UHF |
1,000 |
|
Datasheet |
LMR®-195 | Spool | Active | FME to UHF | FME Jack | Female | Free Hanging (In-Line) | - | UHF Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 195 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-195-UM-TMRP(QTY:2Ft)COAX CBL RP-TNC TO UHF |
1,000 |
|
Datasheet |
LMR®-195 | Spool | Active | RP-TNC to UHF | RP-TNC Plug | Female | Free Hanging (In-Line) | - | UHF Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 195 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
RG316-SMRP-SMRP(QTY:5M)COAX CBL RP-SMA TO RP-SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Free Hanging (In-Line) | - | RP-SMA Jack | Male | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | RG-316 | 50 Ohms | - | - | 3 GHz | - | - | -55°C ~ 200°C | - | - |
|
|
RG316-BM-SM(QTY:5M)COAX CBL BNC TO SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | RG-316 | 50 Ohms | - | - | 3 GHz | - | - | -55°C ~ 200°C | - | - |
|
|
RG316-NF-NF(QTY:5M)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | RG-316 | 50 Ohms | - | - | 3 GHz | - | - | -55°C ~ 200°C | - | - |
|
|
RG316-TNC-TNC(QTY:5M)COAX CBL TNC TO TNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | RG-316 | 50 Ohms | - | - | 3 GHz | - | - | -55°C ~ 200°C | - | - |
|
|
RG316-NM-SMRP(QTY:5M)COAX CBL RP-SMA TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to N-Type | RP-SMA Jack | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | RG-316 | 50 Ohms | - | - | 3 GHz | - | - | -55°C ~ 200°C | - | - |
|
|
RG316-NF-NM(QTY:5M)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | RG-316 | 50 Ohms | - | - | 3 GHz | - | - | -55°C ~ 200°C | - | - |
|
|
PE3W05952-12COAX CBL MCX TO FAKRA |
3,400 |
|
Datasheet |
- | Retail Package | Active | MCX to Fakra | Fakra Jack | Female | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | - | - | - | - |
|
|
PE3C2156-12COAX CBL BNC TO BNC |
2,726 |
|
Datasheet |
- | Retail Package | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | - | - | - | - |
|
|
PE35962LF-12FME Plug to BNC Male Cable 12 In |
2,024 |
|
Datasheet |
- | Retail Package | Active | BNC to FME | BNC Plug | Male | Free Hanging (In-Line) | - | FME Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-142B | 50 Ohms | 50 Ohms | 50 Ohms | - | Copper | - | - | - | - |
|
|
PE3W12745-24SMA Male to MMCX Plug Right Angl |
1,961 |
|
- |
- | Retail Package | Active | SMA to MMCX | SMA Plug | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 100 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|
|
PE3C3754-60COAX CBL N-TYPE TO UHF |
1,016 |
|
Datasheet |
- | Retail Package | Active | N-Type to UHF | N-Type Plug | Male | Free Hanging (In-Line) | - | UHF Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | LMR 195 | 50 Ohms | 50 Ohms | 50 Ohms | 300 MHz | Black | - | -40°C ~ 85°C | - | - |
|
|
PE3C4156-24SMB Plug to Trimmed Lead Cable 2 |
849 |
|
Datasheet |
- | Retail Package | Active | SMB to Cable | SMB Plug | Male | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 24.00" (609.60mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | - | Tan | - | - | - | - |
|
|
PE3C7764-24COAX CBL FAKRA TO FAKRA |
538 |
|
Datasheet |
- | Retail Package | Active | Fakra to Fakra | Fakra Jack | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | - | - | - |
|
|
PE37112/HS-48COAX CBL F-TYPE TO F-TYPE |
511 |
|
Datasheet |
- | Retail Package | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 48.0" (1.2m) 4.0' | RG-6 | 75 Ohms | 75 Ohms | 75 Ohms | 1 GHz | Black | - | -40°C ~ 80°C | - | - |
|
|
PE3C8008-100CMSMA Male to SMA Male Low PIM Cab |
247 |
|
Datasheet |
- | Retail Package | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | TFT-402LF | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | - | - | - |
|

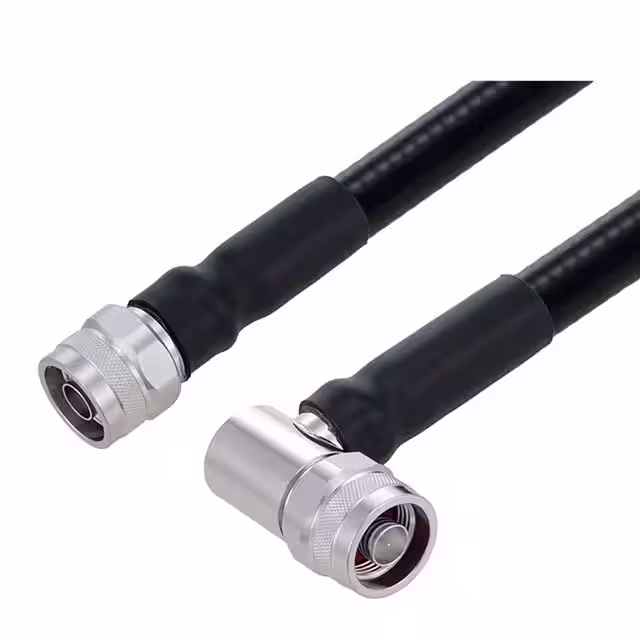

PE3C6372-36COAX CBL N-TYPE TO N-TYPE |
193 |
|
Datasheet |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 200°C | - | - |
|
|
PE3C4431-60BNC Male to SSMC Plug Right Angl |
139 |
|
Datasheet |
- | Retail Package | Active | BNC to SSMC | BNC Plug | Male | Free Hanging (In-Line) | - | SSMC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | LMR 100 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | - | - | - | - |
