Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RG303-UM-NF(QTY:70m)COAX CBL UHF TO N-TYPE |
10,000 |
|
Datasheet |
- | Spool | Active | UHF to N-Type | UHF Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 2755.9" (70.0m) 229.7' | RG-303 | 50 Ohms | - | - | - | - | - | - | - | - |
|
|
LMR-900-DB-NM-NM(QTY:7M)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-900 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 275.6" (7.0m) 23.0' | LMR 900 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-900-DB-NM-NF(QTY:7M)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-900 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 275.6" (7.0m) 23.0' | LMR 900 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-600-SM-SM(QTY:35M)COAX CBL SMA TO SMA |
10,000 |
|
Datasheet |
LMR®-600 | Tape & Box (TB) | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 1378.0" (35.0m) 114.8' | LMR 600 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|

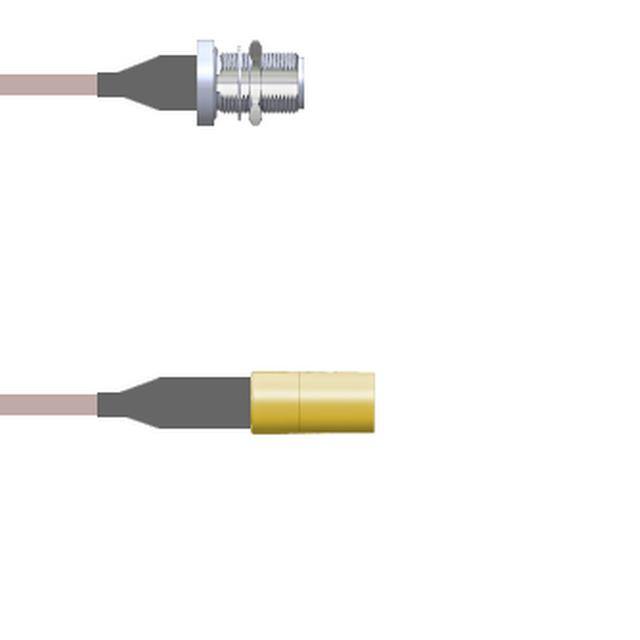

Q-2203Z000R108iCOAX CBL SMB TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | SMB to N-Type | SMB Plug | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 108.0" (2.7m) 9.0' | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
|
PE3M0229-18COAX CBL SMA TO N-TYPE |
219 |
|
Datasheet |
- | Retail Package | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE3M0225-18COAX CBL SMA TO SMA |
216 |
|
Datasheet |
- | Retail Package | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE36657LF/HS-60COAX CBL N-TYPE TO TNC |
150 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to 7/16 DIN | 7/16 Plug | Male | Free Hanging (In-Line) | - | 7/16 Plug, Right Angle | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-393 | 50 Ohms | 50 Ohms | 50 Ohms | - | Tan | - | - | - | - |
|
|
PE3C3251-36COAX CBL SMA TO N-TYPE |
136 |
|
Datasheet |
- | Retail Package | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE33539LF-96LC Male to LC Male Cable 96 Inch |
116 |
|
Datasheet |
- | Retail Package | Active | LC to LC | LC Plug | Male | Free Hanging (In-Line) | - | LC Plug | Male | Free Hanging (In-Line) | - | 96.0" (2.4m) 8.0' | RG-393 | 50 Ohms | 50 Ohms | 50 Ohms | - | Brown | - | - | - | - |
|
|
PE3C5262-36COAX CBL SMA TO TNC |
4,962 |
|
Datasheet |
- | Retail Package | Active | SMA to TNC | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | - | - | - |
|
|
PE37600LF-24COAX CBL BNC TO SMA |
4,683 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to 7/16 DIN | 7/16 Plug | Male | Free Hanging (In-Line) | - | 7/16 Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-217 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE3C5248-48COAX CBL SMA TO SMA |
1,856 |
|
Datasheet |
- | Retail Package | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | - | - | - |
|
|
PE3C3245-24COAX CBL SMA TO N-TYPE |
2,175 |
|
Datasheet |
- | Retail Package | Active | SMA to N-Type | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE3C1271-24N Male Right Angle to TNC Male R |
4,522 |
|
Datasheet |
- | Retail Package | Active | N-Type to TNC | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE3C5655-72HN Male to LC Male Right Angle C |
1,362 |
|
Datasheet |
- | Retail Package | Active | HN to LC | HN Plug | Male | Free Hanging (In-Line) | - | LC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | -20°C ~ 80°C | - | - |
|
|
PE3C5255-200CMCOAX CBL N-TYPE TO N-TYPE |
4,330 |
|
Datasheet |
- | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | - | - | - |
|
|
LMR-240-UF-SM-SM(QTY:240ft)COAX CBL SMA TO SMA |
10,000 |
|
Datasheet |
LMR®-240 | Tape & Box (TB) | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 2880.0" (73.1m) 240.0' | LMR 240 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
RG213-UM-NMRA(QTY:100M)COAX CBL N-TYPE TO UHF |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to UHF | UHF Plug | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 3937.0" (100.0m) 328.1' | RG-213 | - | - | - | - | - | - | - | - | - |
|
|
RG213-BM-NM(QTY:100M)COAX CBL BNC TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to N-Type | BNC Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 3937.0" (100.0m) 328.1' | RG-213 | 50 Ohms | - | 50 Ohms | 3.3 GHz | Black | - | -20°C ~ 80°C | - | - |
