Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RG214-LSZH-SF-TM(QTY:150ft)COAX CBL SMA TO TNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | SMA to TNC | SMA Jack | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 1800.0" (45.7m) 150.0' | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
RG214-LSZH-NF-SMRA(QTY:150ft)COAX CBL N-TYPE TO SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to SMA | N-Type Jack | Female | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 1800.0" (45.7m) 150.0' | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
RG214-LSZH-NMRA-BF(QTY:150ft)COAX CBL N-TYPE TO BNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to BNC | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | BNC Jack | Female | Free Hanging (In-Line) | - | 1800.0" (45.7m) 150.0' | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
RG214-LSZH-NMRA-BMRA(QTY:150ft)COAX CBL N-TYPE TO BNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to BNC | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 1800.0" (45.7m) 150.0' | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
RG214-LSZH-UM-SM(QTY:150ft)COAX CBL UHF TO SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | UHF to SMA | UHF Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 1800.0" (45.7m) 150.0' | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
RG214-LSZH-UM-SF(QTY:150ft)COAX CBL UHF TO SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | UHF to SMA | UHF Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 1800.0" (45.7m) 150.0' | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
RG214-LSZH-TMRA-SMRA(QTY:150ft)COAX CBL TNC TO SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | TNC to SMA | TNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 1800.0" (45.7m) 150.0' | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
RG214-LSZH-SFRP-NFBH(QTY:150ft)COAX CBL RP-SMA TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to N-Type | RP-SMA Jack | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 1800.0" (45.7m) 150.0' | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
RG214-LSZH-SFRP-TM(QTY:150ft)COAX CBL RP-SMA TO TNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to TNC | RP-SMA Jack | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 1800.0" (45.7m) 150.0' | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
RG214-LSZH-UMRA-NMRA(QTY:150ft)COAX CBL UHF TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | UHF to N-Type | UHF Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 1800.0" (45.7m) 150.0' | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
RG214-LSZH-NFBH-NF(QTY:150ft)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Free Hanging (In-Line) | - | 1800.0" (45.7m) 150.0' | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
RG214-LSZH-UMRA-SF(QTY:150ft)COAX CBL UHF TO SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | UHF to SMA | UHF Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | SMA Jack | Female | Free Hanging (In-Line) | - | 1800.0" (45.7m) 150.0' | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
SP-35-MM-12-LPCOAX CBL 3.5MM TO 3.5MM |
1,791 |
|
Datasheet |
StabilityPlus | Retail Package | Active | 3.5mm to 3.5mm | 3.5mm Plug | Male | Free Hanging (In-Line) | - | 3.5mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 26.5 GHz | - | Color Coded, Flexible, Phase Stable, Shielded | - | - | - |
|

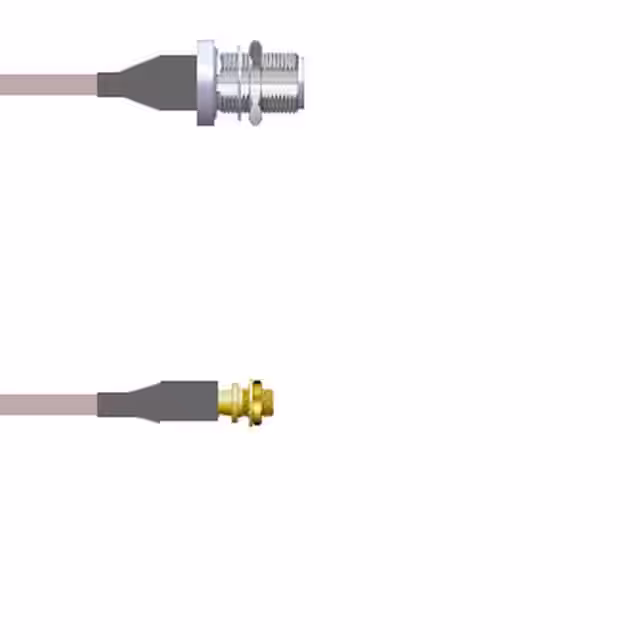

Q-2201K000R003MCOAX CBL MMCX TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | MMCX to N-Type | MMCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 118.1" (3.0m) 9.8' | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - | - | - |
|
|
LMR-600-75-FR-NM-NM(QTY:60ft)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-600 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 720.0" (18.3m) 60.0' | LMR 600 | 75 Ohms | - | 75 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
PE3C1173-150CMCOAX CBL SMA TO TNC |
1,714 |
|
Datasheet |
- | Retail Package | Active | SMA to TNC | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 59.1" (1.5m) 4.9' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE3C5262-24COAX CBL SMA TO TNC |
2,518 |
|
Datasheet |
- | Retail Package | Active | SMA to TNC | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | - | - | - |
|
|
PE3C3233-48COAX CBL N-TYPE TO N-TYPE |
3,192 |
|
Datasheet |
- | Retail Package | Active | N-Type to N-Type | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE3C5244-48COAX CBL SMA TO SMA |
2,614 |
|
Datasheet |
- | Retail Package | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | - | - | - |
|
|
PE3C1144-200CMCOAX CBL TNC TO TNC |
4,658 |
|
Datasheet |
- | Retail Package | Active | TNC to TNC | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
