Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RG55-TM-TM(QTY:70M)COAX CBL TNC TO TNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 2755.9" (70.0m) 229.7' | RG-55 | 53 Ohms | - | 53 Ohms | 3 GHz | Black | - | -20°C ~ 85°C | - | - |
|
|
RG55-NM-NM(QTY:70M)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 2755.9" (70.0m) 229.7' | RG-55 | 53 Ohms | - | 53 Ohms | 3 GHz | Black | - | -20°C ~ 85°C | - | - |
|
|
RG55-NM-SM(QTY:70M)COAX CBL SMA TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 2755.9" (70.0m) 229.7' | RG-55 | 53 Ohms | - | 53 Ohms | 3 GHz | Black | - | -20°C ~ 85°C | - | - |
|
|
LMR-900-DB-NM-NM(QTY:19ft)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-900 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 228.0" (5.8m) 19.0' | LMR 900 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-900-DB-NM-NF(QTY:19ft)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-900 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 228.0" (5.8m) 19.0' | LMR 900 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
TEA80-N1N1-F30COAX CBL N-TYPE TO N-TYPE |
250 |
|
Datasheet |
TEA | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 360.0" (9.1m) 30.0' | 4.95mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Blue | Shielded | -55°C ~ 125°C | - | - |
|
|
LMR-400-75-FR-NM-NM(QTY:30M)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 1181.1" (30.0m) 98.4' | LMR 400 | 75 Ohms | - | 75 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-400-75-FR-FM-FM(QTY:30M)COAX CBL F-TYPE TO F-TYPE |
10,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 1181.1" (30.0m) 98.4' | LMR 400 | 75 Ohms | - | 75 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|

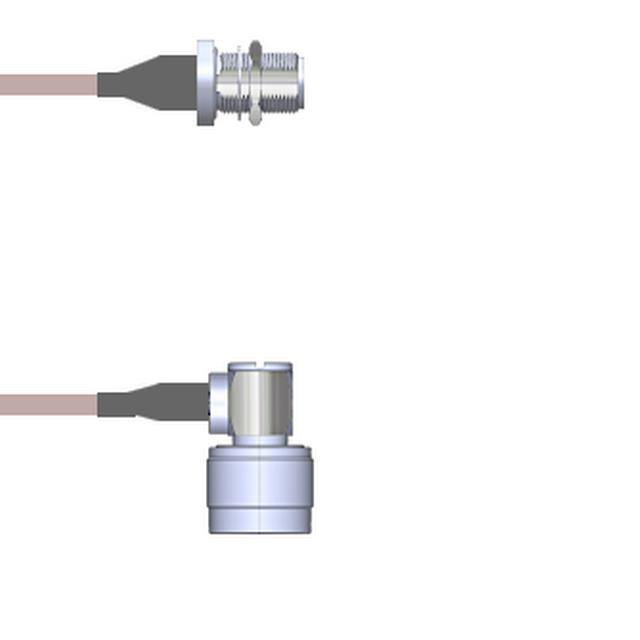

Q-2202D000R108iCOAX CBL N-TYPE TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 108.0" (2.7m) 9.0' | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - | - | - |
|
|
PE333LF-60COAX CBL SMA TO SMA |
117 |
|
Datasheet |
- | Retail Package | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | - | - | - |
|
|
PE3C5262-12COAX CBL SMA TO TNC |
4,209 |
|
Datasheet |
- | Retail Package | Active | SMA to TNC | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | - | - | - |
|
|
PE3W00589-24LC Male Right Angle to HN Male C |
4,475 |
|
Datasheet |
- | Retail Package | Active | HN to LC | LC Plug, Right Angle | Male | Free Hanging (In-Line) | - | HN Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-393 | 50 Ohms | 50 Ohms | 50 Ohms | - | Tan | - | - | - | - |
|
|
LMR-900-FR-NM-NF(QTY:14ft)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-900 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 168.0" (4.3m) 14.0' | LMR 900 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-900-FR-NM-NM(QTY:14ft)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-900 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 168.0" (4.3m) 14.0' | LMR 900 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
PE37371-727/16 DIN Male Right Angle to HN |
150 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to HN | 7/16 Plug, Right Angle | Male | Free Hanging (In-Line) | - | HN Plug, Right Angle | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-393 | 50 Ohms | 50 Ohms | 50 Ohms | - | Tan | - | - | - | - |
|
|
PE333-100CMCOAX CBL SMA TO SMA |
117 |
|
Datasheet |
- | Retail Package | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE345/HS2-48N Male to N Male Right Angle Low |
1,964 |
|
Datasheet |
- | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | PE-P142LL | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 165°C | - | - |
|
|
PE36257-200CMCOAX CBL 7/16 DIN TO HN |
3,204 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to HN | 7/16 Plug | Male | Free Hanging (In-Line) | - | HN Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-218 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | - | - | - |
|
|
PE36172LF-72N Male to 7/16 DIN Male Cable 72 |
3,388 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to N-Type | 7/16 Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-218 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
LMR-600-SM-SM(QTY:90ft)COAX CBL SMA TO SMA |
10,000 |
|
Datasheet |
LMR®-600 | Tape & Box (TB) | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 1080.0" (27.4m) 90.0' | LMR 600 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
