Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMR-400-FR-TMRA-NFBH(QTY:35M)COAX CBL TNC TO N-TYPE |
1,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | TNC to N-Type | TNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 1378.0" (35.0m) 114.8' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-FR-SFRP-NFBH(QTY:35M)COAX CBL RP-SMA TO N-TYPE |
1,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | RP-SMA to N-Type | RP-SMA Jack | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 1378.0" (35.0m) 114.8' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-FR-TMRA-716FC(QTY:35M)COAX CBL TNC TO 7/16 DIN |
1,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | TNC to 7/16 DIN | TNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 7/16 Jack | Female | Free Hanging (In-Line) | - | 1378.0" (35.0m) 114.8' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|

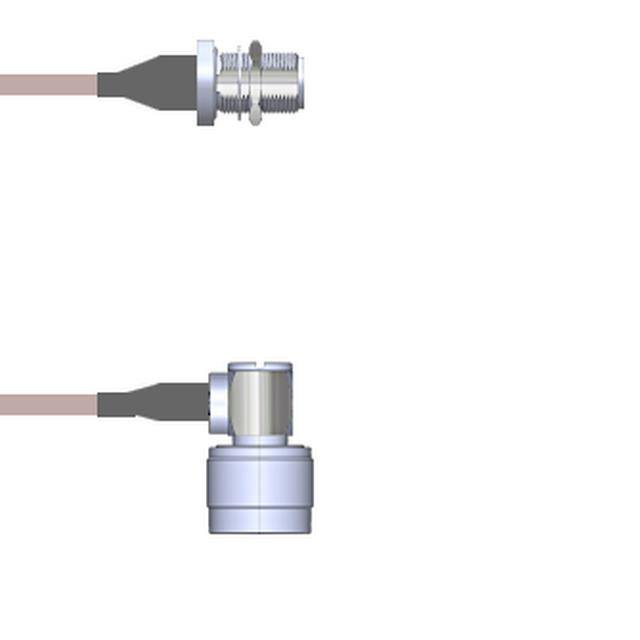

Q-2202D000R003MCOAX CBL N-TYPE TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - | - | - |
|

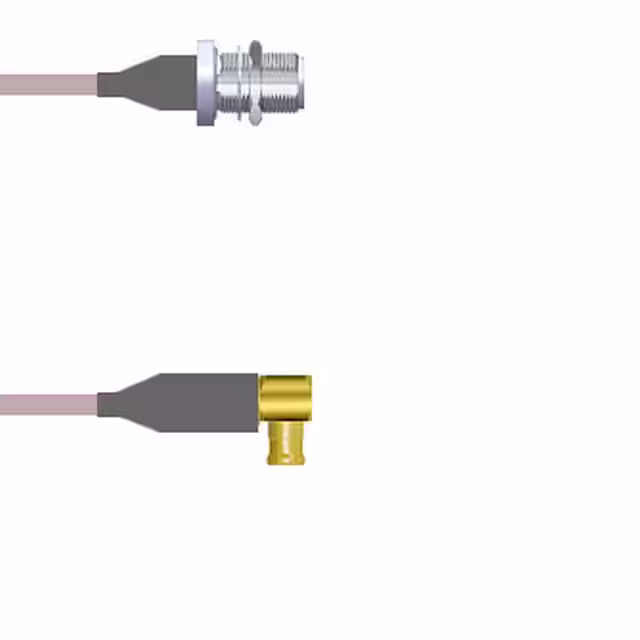

Q-22017000R108iCOAX CBL MCX TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | MCX to N-Type | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 108.0" (2.7m) 9.0' | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - | - | - |
|
|
LMR-900-FR-NM-NM(QTY:4M)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-900 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 157.5" (4.0m) 13.1' | LMR 900 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-900-FR-NM-NF(QTY:4M)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-900 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 157.5" (4.0m) 13.1' | LMR 900 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
PE3W05857-60HN Male to SC Male Cable 60 Inch |
1,528 |
|
Datasheet |
- | Retail Package | Active | HN to SC | HN Plug | Male | Free Hanging (In-Line) | - | SC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-225 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | -55°C ~ 165°C | - | - |
|
|
PE36265-247/16 DIN Male Right Angle to 7/1 |
2,560 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to 7/16 DIN | 7/16 Plug, Right Angle | Male | Free Hanging (In-Line) | - | 7/16 Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-393 | 50 Ohms | 50 Ohms | 50 Ohms | - | Tan | - | - | - | - |
|
|
PE3C5655-12HN Male to LC Male Right Angle C |
2,375 |
|
Datasheet |
- | Retail Package | Active | HN to LC | HN Plug | Male | Free Hanging (In-Line) | - | LC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | -20°C ~ 80°C | - | - |
|
|
PE3C5280-24COAX CBL SMA TO N-TYPE |
2,947 |
|
Datasheet |
- | Retail Package | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | - | - | - |
|
|
LMR-600-75-FR-NM-NM(QTY:17m)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-600 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 669.3" (17.0m) 55.8' | LMR 600 | 75 Ohms | - | 75 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
RG400-NM-SM(QTY:50M)COAX CBL SMA TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 1968.5" (50.0m) 164.0' | RG-400 | 50 Ohms | - | 50 Ohms | 3 GHz | Orange | - | -40°C ~ 200°C | - | - |
|
|
RG400-TM-NM(QTY:50M)COAX CBL N-TYPE TO TNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 1968.5" (50.0m) 164.0' | RG-400 | 50 Ohms | - | 50 Ohms | 3 GHz | Orange | - | -40°C ~ 200°C | - | - |
|
|
RG400-SM-SM(QTY:50M)COAX CBL SMA TO SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 1968.5" (50.0m) 164.0' | RG-400 | 50 Ohms | - | 50 Ohms | 3 GHz | Orange | - | -40°C ~ 200°C | - | - |
|
|
RG400-BM-NM(QTY:50M)COAX CBL BNC TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to N-Type | BNC Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 1968.5" (50.0m) 164.0' | RG-400 | 50 Ohms | - | 50 Ohms | 3 GHz | Orange | - | -40°C ~ 200°C | - | - |
|
|
RG400-BM-BM(QTY:50M)COAX CBL BNC TO BNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 1968.5" (50.0m) 164.0' | RG-400 | 50 Ohms | - | 50 Ohms | 3 GHz | Orange | - | -40°C ~ 200°C | - | - |
|
|
RG400-TM-TM(QTY:50M)COAX CBL TNC TO TNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 1968.5" (50.0m) 164.0' | RG-400 | 50 Ohms | - | 50 Ohms | 3 GHz | Orange | - | -40°C ~ 200°C | - | - |
|
|
RG400-UM-UM(QTY:50M)COAX CBL UHF TO UHF |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | UHF to UHF | UHF Plug | Male | - | - | UHF Plug | Male | - | - | 1968.5" (50.0m) 164.0' | RG-400 | - | - | - | - | - | - | - | - | - |
|
|
RG400-NM-NM(QTY:50M)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 1968.5" (50.0m) 164.0' | RG-400 | 50 Ohms | - | 50 Ohms | 3 GHz | Orange | - | -40°C ~ 200°C | - | - |
