Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMR-240-SF-SMRA(QTY:80M)COAX CBL SMA TO SMA |
10,000 |
|
Datasheet |
LMR®-240 | Bulk | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 3149.6" (80.0m) 262.5' | LMR 240 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-240-SMRA-SM(QTY:80M)COAX CBL SMA TO SMA |
10,000 |
|
Datasheet |
LMR®-240 | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 3149.6" (80.0m) 262.5' | LMR 240 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
|

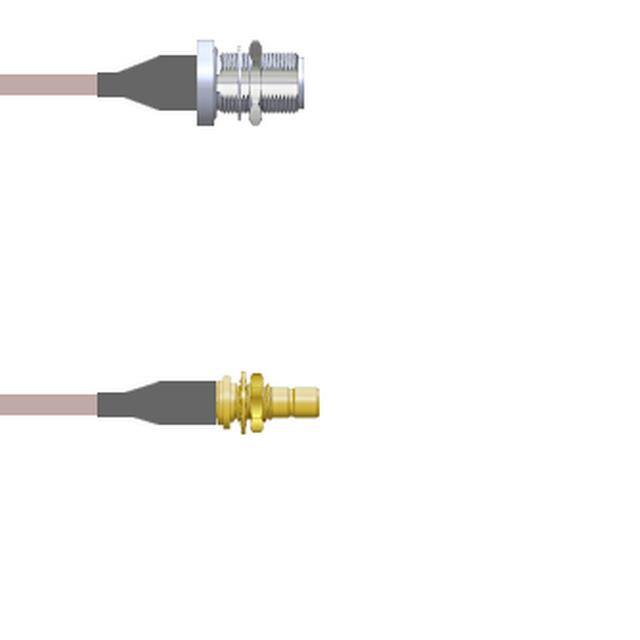

Q-2203O000R108iCOAX CBL SMB TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | SMB to N-Type | SMB Jack | Male | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 108.0" (2.7m) 9.0' | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
|
PE35613/HS-60COAX CBL N-TYPE TO HN |
337 |
|
Datasheet |
- | Retail Package | Active | N-Type to HN | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | HN Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-225 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | -55°C ~ 165°C | - | - |
|
|
PE337-150CMCOAX CBL SMA TO N-TYPE |
182 |
|
Datasheet |
- | Retail Package | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE337-60COAX CBL SMA TO N-TYPE |
182 |
|
Datasheet |
- | Retail Package | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE36257-60COAX CBL 7/16 DIN TO HN |
157 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to HN | 7/16 Plug | Male | Free Hanging (In-Line) | - | HN Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-218 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | - | - | - |
|
|
PE3C3252-200CMCOAX CBL SMA TO N-TYPE |
4,976 |
|
Datasheet |
- | Retail Package | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE331-150CMCOAX CBL N-TYPE TO N-TYPE |
2,836 |
|
Datasheet |
- | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE345/HS2-36N Male to N Male Right Angle Low |
1,600 |
|
Datasheet |
- | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | PE-P142LL | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 165°C | - | - |
|
|
LMR-600-UF-NF-SMRP(QTY:20m)COAX CBL RP-SMA TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-600 | Tape & Box (TB) | Active | RP-SMA to N-Type | RP-SMA Plug | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 787.4" (20.0m) 65.6' | LMR 600 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-600-UF-NM-SMRP(QTY:20m)COAX CBL N-TYPE TO RP-SMA |
10,000 |
|
Datasheet |
LMR®-600 | Tape & Box (TB) | Active | N-Type to RP-SMA | N-Type Plug | Male | Free Hanging (In-Line) | - | RP-SMA Jack | Male | Free Hanging (In-Line) | - | 787.4" (20.0m) 65.6' | LMR 600 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|

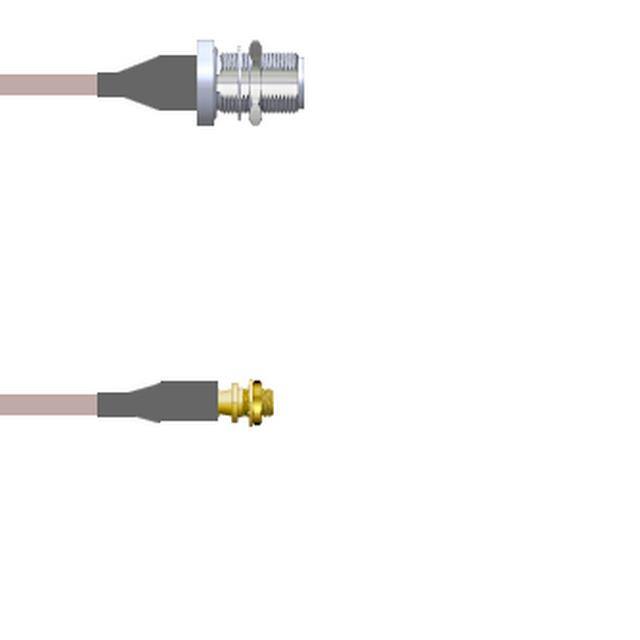

Q-2201K000R084iCOAX CBL MMCX TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | MMCX to N-Type | MMCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 84.0" (2.1m) 7.0' | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - | - | - |
|
|
LMR-600-75-FR-NM-NM(QTY:55ft)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-600 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 660.0" (16.8m) 55.0' | LMR 600 | 75 Ohms | - | 75 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|

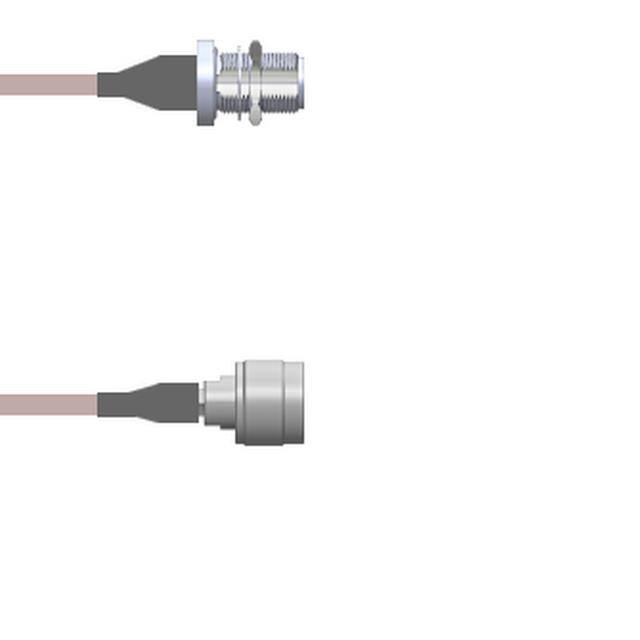

Q-2202M000R108iCOAX CBL N-TYPE TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 108.0" (2.7m) 9.0' | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - | - | - |
|
|
TSA74-N1N1-F20COAX CBL N-TYPE TO N-TYPE |
250 |
|
Datasheet |
TSA | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 240.0" (6.1m) 20.0' | 4.95mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Blue | Shielded | -55°C ~ 125°C | - | - |
|
|
TSA74-N1S1-F20COAX CBL SMA TO N-TYPE |
250 |
|
Datasheet |
TSA | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 240.0" (6.1m) 20.0' | 4.95mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Blue | Shielded | -55°C ~ 125°C | - | - |
|
|
Q-2202X000R108iCOAX CBL SMA TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 108.0" (2.7m) 9.0' | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - | - | - |
|

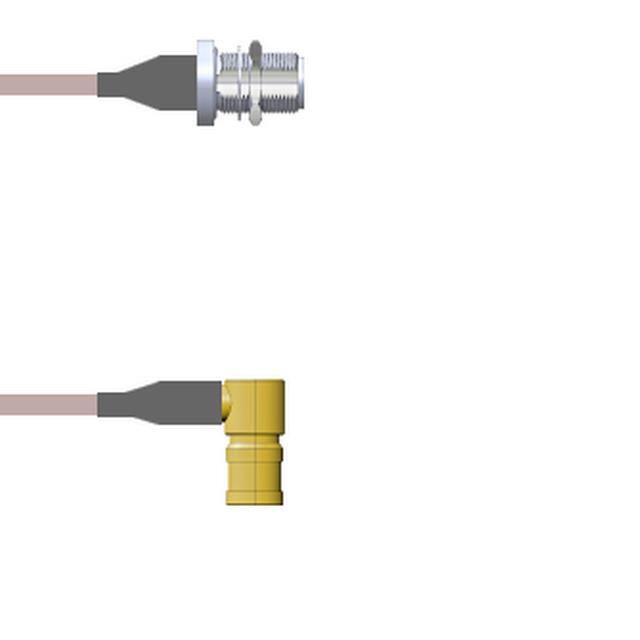

Q-2203T000R003MCOAX CBL SMB TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | SMB to N-Type | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 118.1" (3.0m) 9.8' | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
V3A33-TNSTNS-S16COAX CBL NANO TO NANO |
100 |
|
Datasheet |
VITA | Bulk | Active | NANO to NANO | NANO Plug | Male | Free Hanging (In-Line) | - | NANO Plug | Male | Free Hanging (In-Line) | - | 16.00" (406.40mm) | 0.047" Flexible Cable | - | - | - | 18 GHz | Black | Shielded | - | - | - |
