Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RG393-SMRP-SMRP(QTY:11m)COAX CBL RP-SMA TO RP-SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Free Hanging (In-Line) | - | RP-SMA Jack | Male | Free Hanging (In-Line) | - | 433.1" (11.0m) 36.1' | RG-393 | 50 Ohms | - | - | 3 GHz | - | - | -55°C ~ 200°C | - | - |
|
|
RG393-TNC-TNC(QTY:11m)COAX CBL TNC TO TNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 433.1" (11.0m) 36.1' | RG-393 | 50 Ohms | - | - | 3 GHz | - | - | -55°C ~ 200°C | - | - |
|
|
RG393-NF-NM(QTY:11m)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 433.1" (11.0m) 36.1' | RG-393 | 50 Ohms | - | - | 3 GHz | - | - | -55°C ~ 200°C | - | - |
|
|
RG393-NM-SMRP(QTY:11m)COAX CBL RP-SMA TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to N-Type | RP-SMA Jack | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 433.1" (11.0m) 36.1' | RG-393 | 50 Ohms | - | - | 3 GHz | - | - | -55°C ~ 200°C | - | - |
|
|
Q-22012000R108iCOAX CBL MCX TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | MCX to N-Type | MCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 108.0" (2.7m) 9.0' | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - | - | - |
|
|
TEA80-T1T1-5M0COAX CBL TNC TO TNC |
250 |
|
Datasheet |
TEA | Bulk | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | 4.95mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Blue | Shielded | -55°C ~ 125°C | - | - |
|

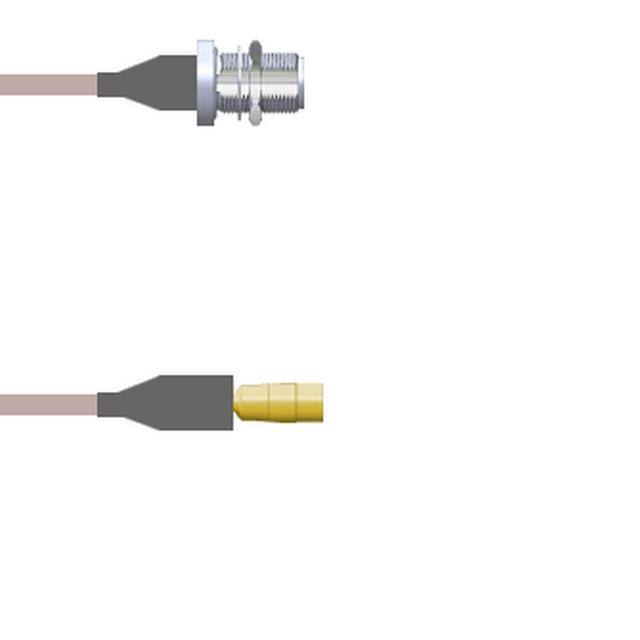

Q-2201L000R003MCOAX CBL MMCX TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | MMCX to N-Type | MMCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 118.1" (3.0m) 9.8' | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - | - | - |
|
|
PE36136-48COAX CBL 7/16 DIN TO 7/16 DIN |
558 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to 7/16 DIN | 7/16 Plug | Male | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-225 | 50 Ohms | 50 Ohms | 50 Ohms | 400 MHz | Brown | - | - | - | - |
|
|
PE35900-24COAX CBL 7/16 DIN TO 7/16 DIN |
393 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to 7/16 DIN | 7/16 Plug | Male | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-218 | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE3C3242-48COAX CBL SMA TO TNC |
298 |
|
Datasheet |
- | Retail Package | Active | SMA to TNC | SMA Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE334-24COAX CBL TNC TO TNC |
149 |
|
Datasheet |
- | Retail Package | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE3C3236-36COAX CBL SMA TO N-TYPE |
136 |
|
Datasheet |
- | Retail Package | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE3C3238-24COAX CBL SMA TO N-TYPE |
3,469 |
|
Datasheet |
- | Retail Package | Active | SMA to N-Type | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE3C3252-100CMCOAX CBL SMA TO N-TYPE |
4,312 |
|
Datasheet |
- | Retail Package | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE37815-60C Male to C Male Right Angle Cab |
4,254 |
|
Datasheet |
- | Retail Package | Active | C-Type to C-Type | C-Type Plug | Male | Free Hanging (In-Line) | - | C-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-225 | 50 Ohms | 50 Ohms | 50 Ohms | - | Tan | - | - | - | - |
|
|
PE3C3234-24COAX CBL N-TYPE TO N-TYPE |
1,716 |
|
Datasheet |
- | Retail Package | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE3C5280-50CMCOAX CBL SMA TO N-TYPE |
1,806 |
|
Datasheet |
- | Retail Package | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | - | - | - |
|
|
LMR-240-DB-BMRA-SMRA(QTY:200Ft)LMR 240 DB CABLE ASSY 200Ft BMRA |
1,000 |
|
Datasheet |
LMR® | Tape & Box (TB) | Active | BNC to SMA | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 2400.0" (61.0m) 200.0' | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-240-DB-716M-UF(QTY:200Ft)LMR 240 DB CABLE ASSY 200Ft 716M |
1,000 |
|
Datasheet |
LMR® | Tape & Box (TB) | Active | 7/16 DIN to UHF | 7/16 Plug | Male | Free Hanging (In-Line) | - | UHF Jack | Female | Free Hanging (In-Line) | - | 2400.0" (61.0m) 200.0' | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-240-DB-BMRA-BF(QTY:200Ft)LMR 240 DB CABLE ASSY 200Ft BMRA |
1,000 |
|
Datasheet |
LMR® | Tape & Box (TB) | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Jack | Female | Free Hanging (In-Line) | - | 2400.0" (61.0m) 200.0' | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
