Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RG393-TM-TM(QTY:40FT)COAX CBL TNC TO TNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 480.0" (12.2m) 40.0' | RG-393 | 50 Ohms | - | 50 Ohms | 1 GHz | Tan | - | -55°C ~ 200°C | - | - |
|
|
RG393-4310M-NM(QTY:40FT)COAX CBL 4.3/10 TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | 4.3/10 to N-Type | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 480.0" (12.2m) 40.0' | RG-393 | 50 Ohms | - | 50 Ohms | 1 GHz | Tan | - | -55°C ~ 200°C | - | - |
|

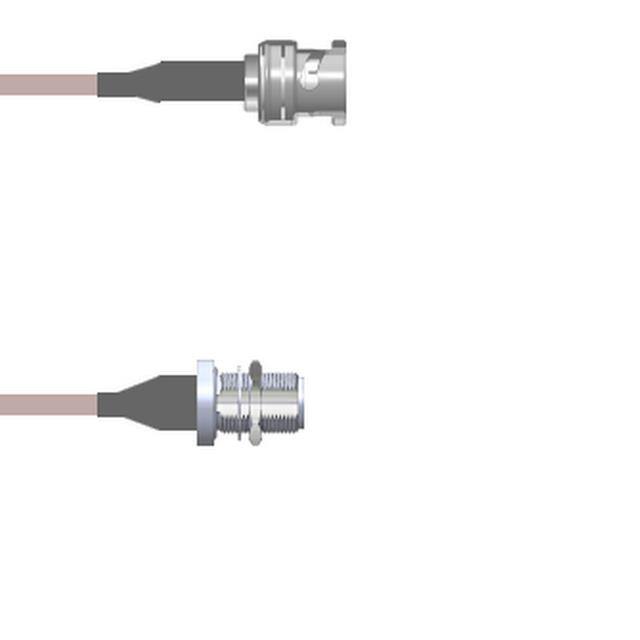

Q-0K022000R108iCOAX CBL BNC TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | BNC to N-Type | BNC Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 108.0" (2.7m) 9.0' | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
|
LMR-600-75-NM-NM(QTY:90ft)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-600 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 1080.0" (27.4m) 90.0' | LMR 600 | 75 Ohms | - | 75 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|

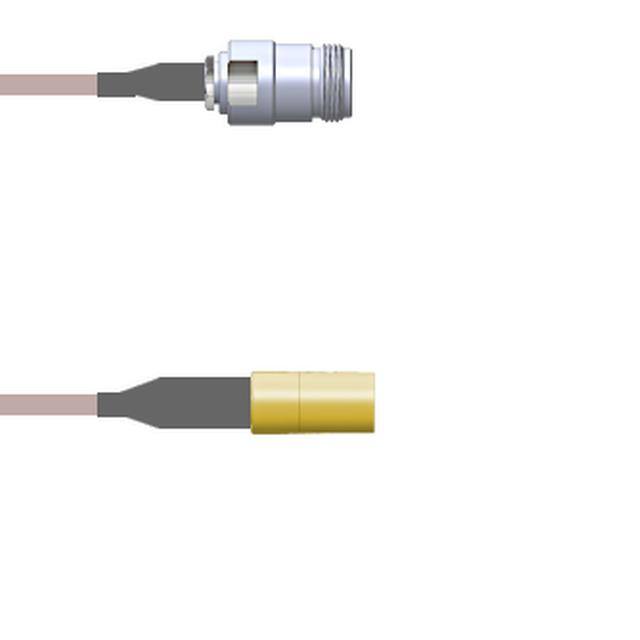

Q-1V03Z000R084iCOAX CBL SMB TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | SMB to N-Type | SMB Plug | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 84.0" (2.1m) 7.0' | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
|
Q-2203N000R003MCOAX CBL SMB TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | SMB to N-Type | SMB Jack | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 118.1" (3.0m) 9.8' | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

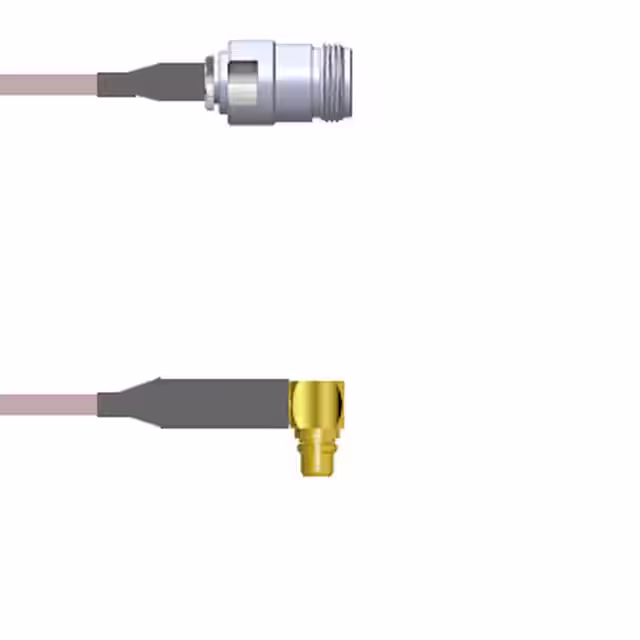

Q-1V01O000R108iCOAX CBL MMCX TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | MMCX to N-Type | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 108.0" (2.7m) 9.0' | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - | - | - |
|

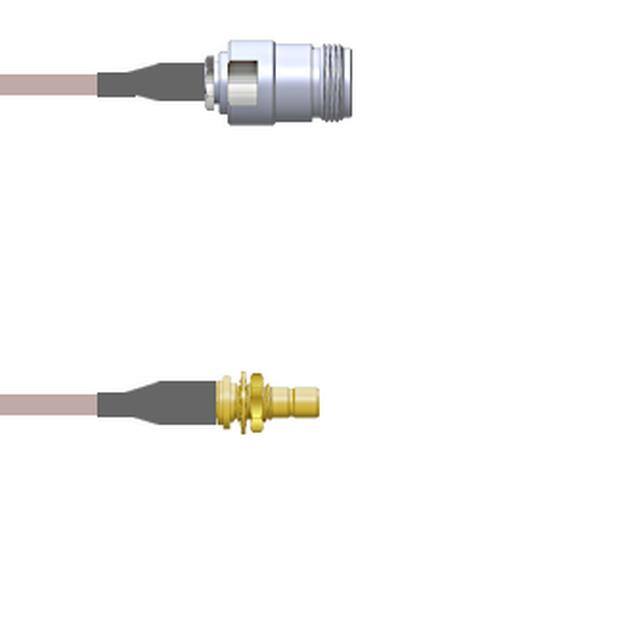

Q-1V03O000R108iCOAX CBL SMB TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | SMB to N-Type | SMB Jack | Male | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Free Hanging (In-Line) | - | 108.0" (2.7m) 9.0' | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

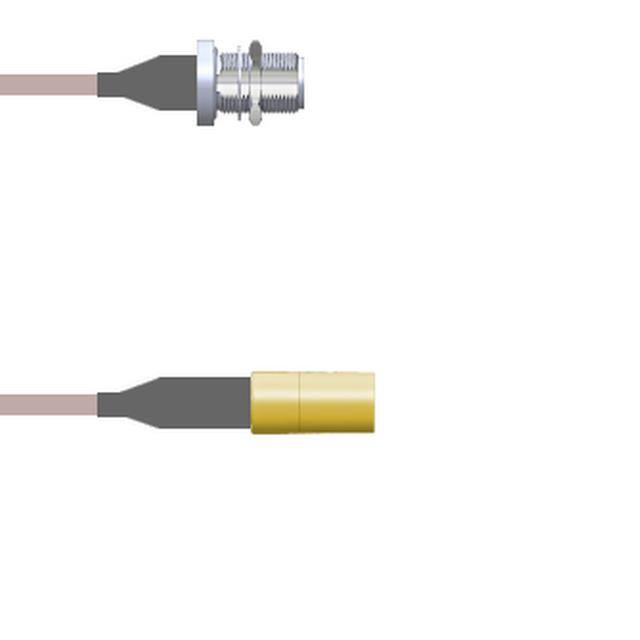

Q-2203Z000R003MCOAX CBL SMB TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | SMB to N-Type | SMB Plug | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 118.1" (3.0m) 9.8' | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
|
RG213-NM-SMRP(QTY:80m)COAX CBL RP-SMA TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to N-Type | RP-SMA Jack | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 3149.6" (80.0m) 262.5' | RG-213 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG213-BM-SM(QTY:80m)COAX CBL BNC TO SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 3149.6" (80.0m) 262.5' | RG-213 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG213-NF-NF(QTY:80m)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 3149.6" (80.0m) 262.5' | RG-213 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG213-NF-NM(QTY:80m)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 3149.6" (80.0m) 262.5' | RG-213 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG213-SMRP-SMRP(QTY:80m)COAX CBL RP-SMA TO RP-SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Free Hanging (In-Line) | - | RP-SMA Jack | Male | Free Hanging (In-Line) | - | 3149.6" (80.0m) 262.5' | RG-213 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG213-TNC-TNC(QTY:80m)COAX CBL TNC TO TNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 3149.6" (80.0m) 262.5' | RG-213 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG213-716FC-NF(QTY:80M)COAX CBL 7/16 DIN TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | 7/16 DIN to N-Type | 7/16 Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 3149.6" (80.0m) 262.5' | RG-213 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | Shielded | -20°C ~ 80°C | - | - |
|
|
RG213-716FC-BM(QTY:80M)COAX CBL 7/16 DIN TO BNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | 7/16 DIN to BNC | 7/16 Jack | Female | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 3149.6" (80.0m) 262.5' | RG-213 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | Shielded | -20°C ~ 80°C | - | - |
|
|
RG213-BF-UMRA(QTY:80M)COAX CBL BNC TO UHF |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to UHF | BNC Jack | Female | Free Hanging (In-Line) | - | UHF Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 3149.6" (80.0m) 262.5' | RG-213 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | Shielded | -20°C ~ 80°C | - | - |
|
|
RG213-716M-SF(QTY:80M)COAX CBL 7/16 DIN TO SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | 7/16 DIN to SMA | 7/16 Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 3149.6" (80.0m) 262.5' | RG-213 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | Shielded | -20°C ~ 80°C | - | - |
|
|
RG213-BF-SMRA(QTY:80M)COAX CBL BNC TO SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to SMA | BNC Jack | Female | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 3149.6" (80.0m) 262.5' | RG-213 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | Shielded | -20°C ~ 80°C | - | - |
