Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMR-600-75-FR-NM-NM(QTY:16m)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-600 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 629.9" (16.0m) 52.5' | LMR 600 | 75 Ohms | - | 75 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|

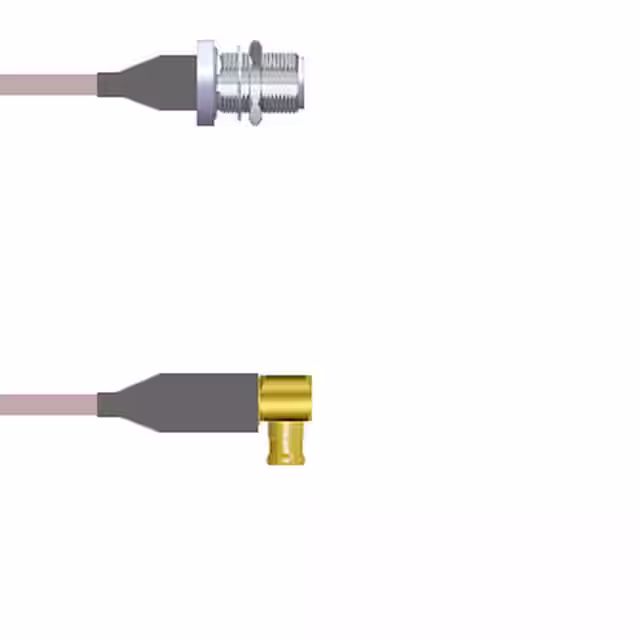

Q-22017000R003MCOAX CBL MCX TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | MCX to N-Type | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 118.1" (3.0m) 9.8' | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - | - | - |
|
|
Q-1V013000R108iCOAX CBL MCX TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | MCX to N-Type | MCX Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 108.0" (2.7m) 9.0' | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - | - | - |
|
|
RG393-NF-NF(QTY:35ft)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 420.0" (10.7m) 35.0' | RG-393 | 50 Ohms | - | - | 3 GHz | - | - | -55°C ~ 200°C | - | - |
|
|
RG393-NM-SMRP(QTY:35ft)COAX CBL RP-SMA TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to N-Type | RP-SMA Jack | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 420.0" (10.7m) 35.0' | RG-393 | 50 Ohms | - | - | 3 GHz | - | - | -55°C ~ 200°C | - | - |
|
|
RG393-TNC-TNC(QTY:35ft)COAX CBL TNC TO TNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 420.0" (10.7m) 35.0' | RG-393 | 50 Ohms | - | - | 3 GHz | - | - | -55°C ~ 200°C | - | - |
|
|
RG393-SMRP-SMRP(QTY:35ft)COAX CBL RP-SMA TO RP-SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Free Hanging (In-Line) | - | RP-SMA Jack | Male | Free Hanging (In-Line) | - | 420.0" (10.7m) 35.0' | RG-393 | 50 Ohms | - | - | 3 GHz | - | - | -55°C ~ 200°C | - | - |
|
|
RG393-BM-SM(QTY:35ft)COAX CBL BNC TO SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 420.0" (10.7m) 35.0' | RG-393 | 50 Ohms | - | - | 3 GHz | - | - | -55°C ~ 200°C | - | - |
|
|
RG393-NF-NM(QTY:35ft)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 420.0" (10.7m) 35.0' | RG-393 | 50 Ohms | - | - | 3 GHz | - | - | -55°C ~ 200°C | - | - |
|
|
RG55-BM-SM(QTY:65m)COAX CBL BNC TO SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 2559.0" (65.0m) 213.2' | RG-55 | 53 Ohms | - | - | 3 GHz | Black | - | -20°C ~ 85°C | - | - |
|
|
RG55-TNC-TNC(QTY:65m)COAX CBL TNC TO TNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 2559.0" (65.0m) 213.2' | RG-55 | 53 Ohms | - | - | 3 GHz | Black | - | -20°C ~ 85°C | - | - |
|
|
RG55-SMRP-SMRP(QTY:65m)COAX CBL RP-SMA TO RP-SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Free Hanging (In-Line) | - | RP-SMA Jack | Male | Free Hanging (In-Line) | - | 2559.0" (65.0m) 213.2' | RG-55 | 53 Ohms | - | - | 3 GHz | Black | - | -20°C ~ 85°C | - | - |
|
|
RG55-NM-SMRP(QTY:65m)COAX CBL RP-SMA TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to N-Type | RP-SMA Jack | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 2559.0" (65.0m) 213.2' | RG-55 | 53 Ohms | - | - | 3 GHz | Black | - | -20°C ~ 85°C | - | - |
|
|
RG55-NF-NF(QTY:65m)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 2559.0" (65.0m) 213.2' | RG-55 | 53 Ohms | - | - | 3 GHz | Black | - | -20°C ~ 85°C | - | - |
|
|
RG55-NF-NM(QTY:65m)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 2559.0" (65.0m) 213.2' | RG-55 | 53 Ohms | - | - | 3 GHz | Black | - | -20°C ~ 85°C | - | - |
|
|
PE34447LF-60COAX CBL SC TO SC |
1,533 |
|
Datasheet |
- | Retail Package | Active | SC to SC | SC Plug | Male | Free Hanging (In-Line) | - | SC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-225 | 50 Ohms | 50 Ohms | 50 Ohms | 400 MHz | Brown | - | - | - | - |
|
|
PE35900LF-48COAX CBL 7/16 DIN TO 7/16 DIN |
196 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to 7/16 DIN | 7/16 Plug | Male | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-218 | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE36657LF-367/16 DIN Male to 7/16 DIN Male R |
150 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to 7/16 DIN | 7/16 Plug | Male | Free Hanging (In-Line) | - | 7/16 Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-393 | 50 Ohms | 50 Ohms | 50 Ohms | - | Tan | - | - | - | - |
|
|
PE334-150CMCOAX CBL TNC TO TNC |
149 |
|
Datasheet |
- | Retail Package | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE3C1179-150CMCOAX CBL SMA TO TNC |
148 |
|
Datasheet |
- | Retail Package | Active | SMA to TNC | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
