Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RG214-LSZH-NFBH-NM(QTY:40M)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 1574.8" (40.0m) 131.2' | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
RG214-LSZH-SFRP-SMRP(QTY:40M)COAX CBL RP-SMA TO RP-SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Free Hanging (In-Line) | - | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 1574.8" (40.0m) 131.2' | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
RG214-LSZH-TMRA-4310M(QTY:40M)COAX CBL TNC TO 4.3/10 |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | TNC to 4.3/10 | TNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 1574.8" (40.0m) 131.2' | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
RG214-LSZH-SMRP-UMRA(QTY:40M)COAX CBL RP-SMA TO UHF |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to UHF | RP-SMA Plug | Female | Free Hanging (In-Line) | - | UHF Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 1574.8" (40.0m) 131.2' | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
RG214-LSZH-NFBH-UF(QTY:40M)COAX CBL N-TYPE TO UHF |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to UHF | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | UHF Jack | Female | Free Hanging (In-Line) | - | 1574.8" (40.0m) 131.2' | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
RG214-LSZH-TMRA-BMRA(QTY:40M)COAX CBL TNC TO BNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | TNC to BNC | TNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 1574.8" (40.0m) 131.2' | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
RG214-LSZH-TMRA-716M(QTY:40M)COAX CBL TNC TO 7/16 DIN |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | TNC to 7/16 DIN | TNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 1574.8" (40.0m) 131.2' | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|

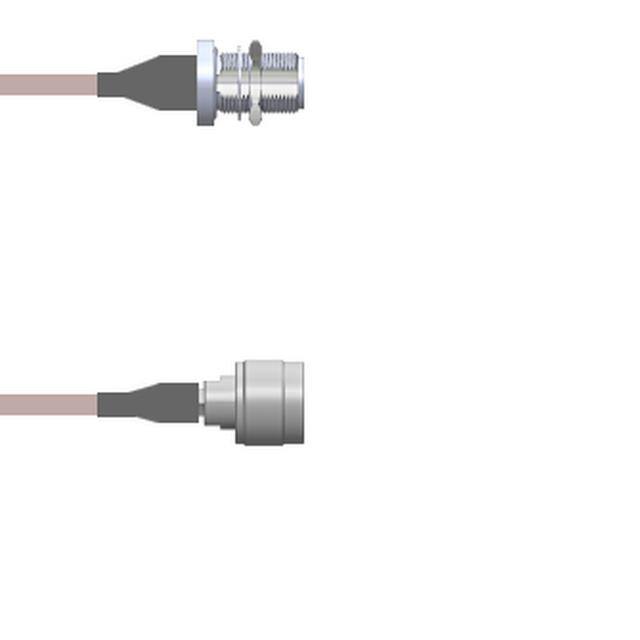

Q-2202M000R003MCOAX CBL N-TYPE TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - | - | - |
|
|
Q-2201O000R003MCOAX CBL MMCX TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | MMCX to N-Type | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 118.1" (3.0m) 9.8' | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - | - | - |
|
|
LMR-600-NM-NF(QTY:80ft)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-600 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 960.0" (24.4m) 80.0' | LMR 600 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-600-NM-SMRP(QTY:80ft)COAX CBL N-TYPE TO RP-SMA |
10,000 |
|
Datasheet |
LMR®-600 | Tape & Box (TB) | Active | N-Type to RP-SMA | N-Type Plug | Male | Free Hanging (In-Line) | - | RP-SMA Jack | Male | Free Hanging (In-Line) | - | 960.0" (24.4m) 80.0' | LMR 600 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-600-SM-SM(QTY:80ft)COAX CBL SMA TO SMA |
10,000 |
|
Datasheet |
LMR®-600 | Tape & Box (TB) | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 960.0" (24.4m) 80.0' | LMR 600 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-600-NF-SMRP(QTY:80ft)COAX CBL RP-SMA TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-600 | Tape & Box (TB) | Active | RP-SMA to N-Type | RP-SMA Plug | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 960.0" (24.4m) 80.0' | LMR 600 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-600-NM-NM(QTY:80ft)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-600 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 960.0" (24.4m) 80.0' | LMR 600 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-600-NF-NM(QTY:80ft)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-600 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 960.0" (24.4m) 80.0' | LMR 600 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-600-NM-NMRA(QTY:80ft)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-600 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 960.0" (24.4m) 80.0' | LMR 600 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-600-NF-SM(QTY:80ft)COAX CBL SMA TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-600 | Tape & Box (TB) | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 960.0" (24.4m) 80.0' | LMR 600 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
RG400-BM-SM(QTY:150ft)COAX CBL BNC TO SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 1800.0" (45.7m) 150.0' | RG-400 | 50 Ohms | - | - | 3 GHz | - | - | -40°C ~ 200°C | - | - |
|
|
RG400-TNC-TNC(QTY:150ft)COAX CBL TNC TO TNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 1800.0" (45.7m) 150.0' | RG-400 | 50 Ohms | - | - | 3 GHz | - | - | -40°C ~ 200°C | - | - |
|
|
RG400-SMRP-SMRP(QTY:150ft)COAX CBL RP-SMA TO RP-SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Free Hanging (In-Line) | - | RP-SMA Jack | Male | Free Hanging (In-Line) | - | 1800.0" (45.7m) 150.0' | RG-400 | 50 Ohms | - | - | 3 GHz | - | - | -40°C ~ 200°C | - | - |
