Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RG223-NM-SM(QTY:80M)COAX CBL SMA TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 3149.6" (80.0m) 262.5' | RG-223 | 50 Ohms | - | 50 Ohms | 12.4 GHz | Black | - | -20°C ~ 85°C | - | - |
|
|
RG223-UM-NMRA(QTY:80M)COAX CBL N-TYPE TO UHF |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to UHF | UHF Plug | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 3149.6" (80.0m) 262.5' | RG-223 | - | - | - | - | - | - | - | - | - |
|
|
RG223-NM-NMRA(QTY:80M)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 3149.6" (80.0m) 262.5' | RG-223 | 50 Ohms | - | 50 Ohms | 12.4 GHz | Black | - | -20°C ~ 85°C | - | - |
|
|
RG223-SM-SM(QTY:80M)COAX CBL SMA TO SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 3149.6" (80.0m) 262.5' | RG-223 | 50 Ohms | - | 50 Ohms | 12.4 GHz | Black | - | -20°C ~ 85°C | - | - |
|
|
RG223-TM-TM(QTY:80M)COAX CBL TNC TO TNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 3149.6" (80.0m) 262.5' | RG-223 | 50 Ohms | - | 50 Ohms | 12.4 GHz | Black | - | -20°C ~ 85°C | - | - |
|
|
RG223-TM-NM(QTY:80M)COAX CBL N-TYPE TO TNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 3149.6" (80.0m) 262.5' | RG-223 | 50 Ohms | - | 50 Ohms | 12.4 GHz | Black | - | -20°C ~ 85°C | - | - |
|
|
RG223-UM-UM(QTY:80M)COAX CBL UHF TO UHF |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | UHF to UHF | UHF Plug | Male | - | - | UHF Plug | Male | - | - | 3149.6" (80.0m) 262.5' | RG-223 | - | - | - | - | - | - | - | - | - |
|

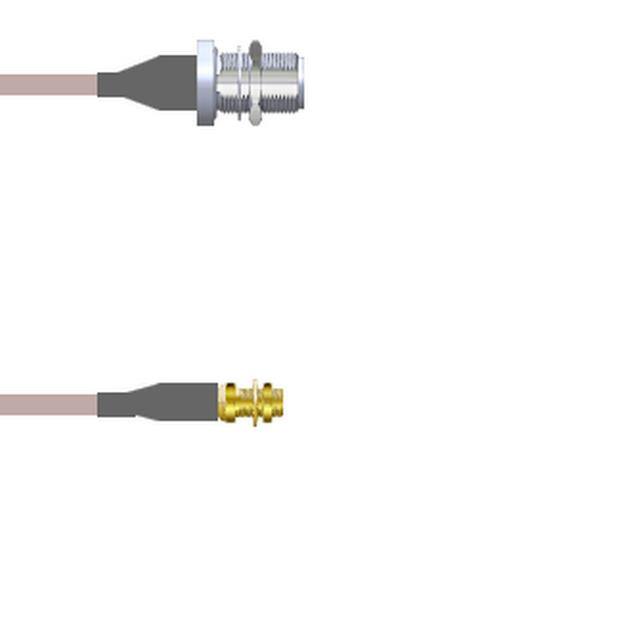

Q-22012000R003MCOAX CBL MCX TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | MCX to N-Type | MCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 118.1" (3.0m) 9.8' | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - | - | - |
|
|
Q-22022000R072iCOAX CBL N-TYPE TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 72.0" (1.8m) 6.0' | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - | - | - |
|

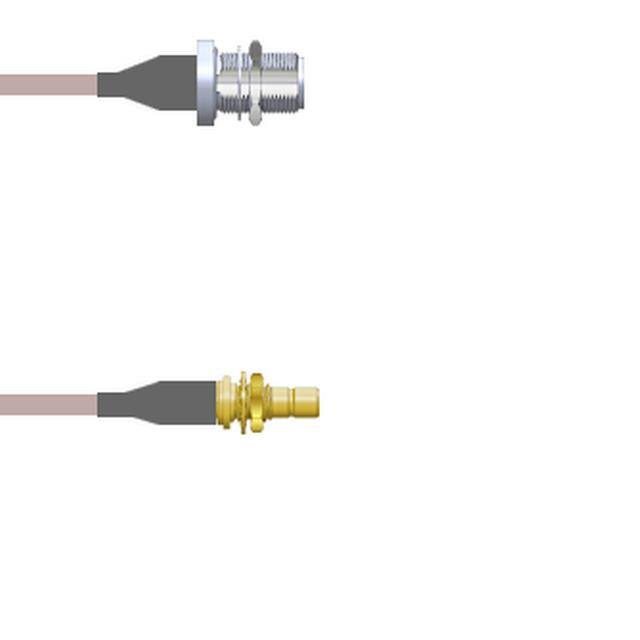

Q-2203O000R003MCOAX CBL SMB TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | SMB to N-Type | SMB Jack | Male | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 118.1" (3.0m) 9.8' | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
Q-07022000R084iCOAX CBL BNC TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | BNC to N-Type | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 84.0" (2.1m) 7.0' | RG-316 DB | - | - | 50 Ohms | 2 GHz | Copper | Shielded | - | - | - |
|

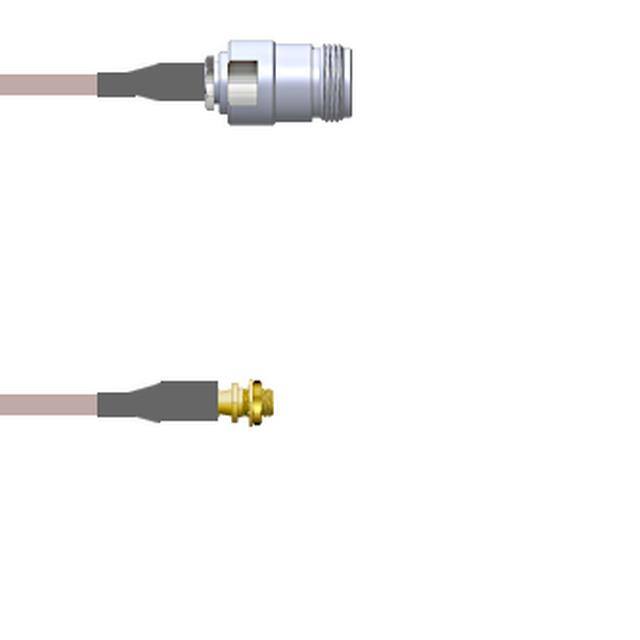

Q-1V01K000R003MCOAX CBL MMCX TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | MMCX to N-Type | MMCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - | - | - |
|
|
Q-1V012000R108iCOAX CBL MCX TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | MCX to N-Type | MCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Free Hanging (In-Line) | - | 108.0" (2.7m) 9.0' | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - | - | - |
|
|
Q-22053000R108iCOAX CBL N-TYPE TO TNC |
100 |
|
Datasheet |
- | Bag | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 108.0" (2.7m) 9.0' | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - | - | - |
|
Q-0701L000R108iCOAX CBL BNC TO MMCX |
100 |
|
Datasheet |
- | Bag | Active | BNC to MMCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Jack | Female | Free Hanging (In-Line) | - | 108.0" (2.7m) 9.0' | RG-316 DB | - | - | 50 Ohms | 2 GHz | Copper | Shielded | - | - | - |
|
|
PE3C1425-24COAX CBL SMA TO SMA |
4,357 |
|
Datasheet |
- | Retail Package | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE3C5261-36COAX CBL SMA TO TNC |
1,109 |
|
Datasheet |
- | Retail Package | Active | SMA to TNC | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | - | - | - |
|
|
PE3C5252-24COAX CBL TNC TO TNC |
2,237 |
|
Datasheet |
- | Retail Package | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | - | - | - |
|
|
PE3W06696-144HN Male Right Angle to 7/16 DIN |
2,011 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to HN | HN Plug, Right Angle | Male | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 144.0" (3.7m) 12.0' | RG-217 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE3C5268-24COAX CBL N-TYPE TO TNC |
3,690 |
|
Datasheet |
- | Retail Package | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | - | - | - |
