Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

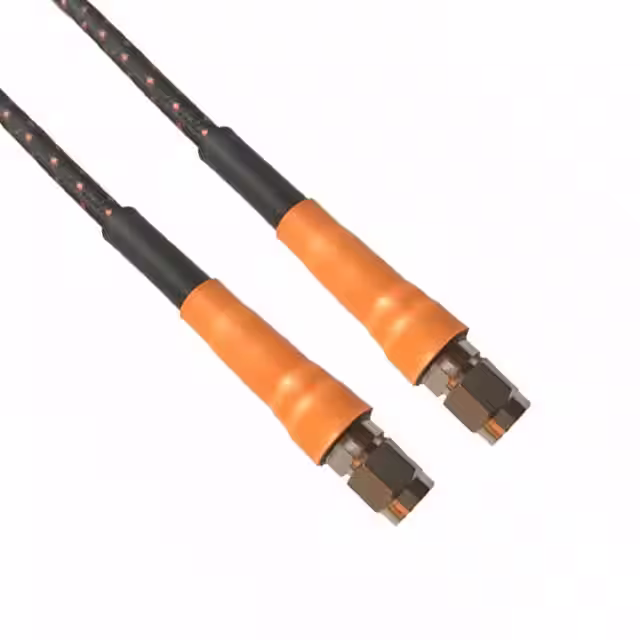

TSA89-D1D1-S60COAX CBL 2.92MM TO 2.92MM |
250 |
|
Datasheet |
TSA | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | 4.95mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 40 GHz | Black | Shielded | -55°C ~ 125°C | - | - |
|
PE333-60COAX CBL SMA TO SMA |
117 |
|
Datasheet |
- | Retail Package | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
LMR-240-SM-SM(QTY:100m)COAX CBL SMA TO SMA |
9,996 |
|
Datasheet |
LMR®-240 | Tape & Box (TB) | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 3937.0" (100.0m) 328.1' | LMR 240 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
TSA89-E1E1-1M0COAX CBL 3.5MM TO 3.5MM |
250 |
|
Datasheet |
TSA | Bulk | Active | 3.5mm to 3.5mm | 3.5mm Plug | Male | Free Hanging (In-Line) | - | 3.5mm Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | 4.95mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 32 GHz | Black | Shielded | -55°C ~ 125°C | - | - |
|
TSA89-D1D1-S48COAX CBL 2.92MM TO 2.92MM |
250 |
|
Datasheet |
TSA | Bulk | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | 4.95mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 40 GHz | Black | Shielded | -55°C ~ 125°C | - | - |
|
|
LMR-400-TNC-TNC(QTY:75m)COAX CBL TNC TO TNC |
9,999 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 2952.7" (75.0m) 246.0' | LMR 400 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-400-NM-SM(QTY:100m)COAX CBL SMA TO N-TYPE |
9,999 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 3937.0" (100.0m) 328.1' | LMR 400 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-400-SM-NMRA(QTY:250ft)COAX CBL SMA TO N-TYPE |
9,998 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 3000.0" (76.2m) 250.0' | LMR 400 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
TSA74-N1N1-F25COAX CBL N-TYPE TO N-TYPE |
250 |
|
Datasheet |
TSA | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | 4.95mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Blue | Shielded | -55°C ~ 125°C | - | - |
|
|
TSA74-N1S1-F25COAX CBL SMA TO N-TYPE |
250 |
|
Datasheet |
TSA | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | 4.95mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Blue | Shielded | -55°C ~ 125°C | - | - |
|

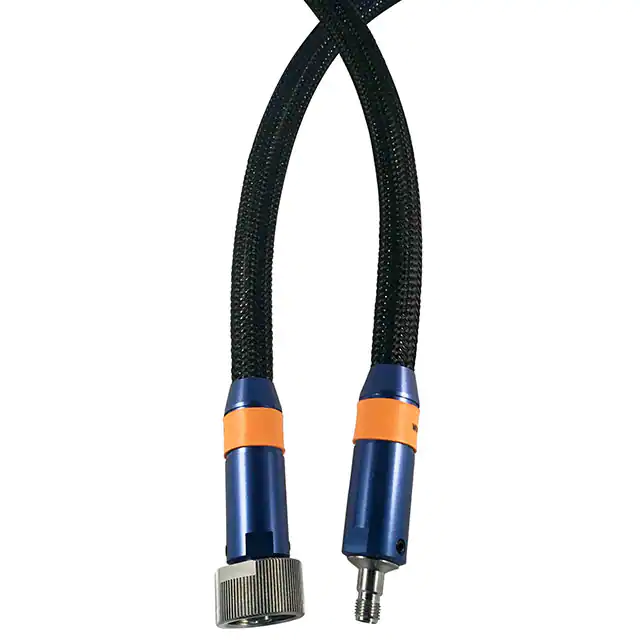

VNA18-ENFN1-S24COAX CBL 3.5MM TO N-TYPE |
100 |
|
Datasheet |
VNA | Bag | Active | 3.5mm to N-Type | 3.5mm Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | VNA | - | - | 50 Ohms | 18 GHz | Black | Armored Cable, Shielded | -55°C ~ 125°C | - | - |
|
|
VNA18-ENFNF-S24COAX CBL 3.5MM TO N-TYPE |
100 |
|
Datasheet |
VNA | Bag | Active | 3.5mm to N-Type | 3.5mm Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | VNA | - | - | 50 Ohms | 18 GHz | Black | Armored Cable, Shielded | -55°C ~ 125°C | - | - |
|

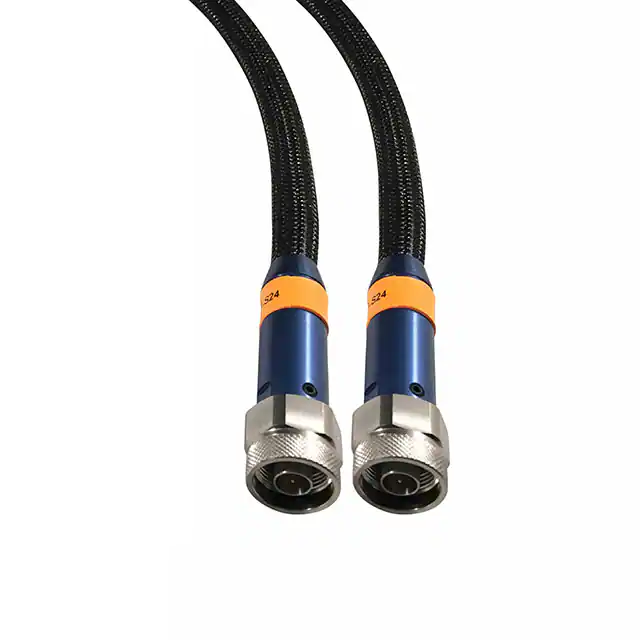

VNA18-N1N1-S24COAX CBL N-TYPE TO N-TYPE |
100 |
|
Datasheet |
VNA | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | VNA | - | - | 50 Ohms | 18 GHz | Black | Armored Cable, Shielded | -55°C ~ 125°C | - | - |
|
VNA18-N1NF-S24COAX CBL N-TYPE TO N-TYPE |
100 |
|
Datasheet |
VNA | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | VNA | - | - | 50 Ohms | 18 GHz | Black | Armored Cable, Shielded | -55°C ~ 125°C | - | - |
|
|
LMR-400-NM-NM(QTY:80m)COAX CBL N-TYPE TO N-TYPE |
9,999 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 3149.6" (80.0m) 262.5' | LMR 400 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-600-NM-NM(QTY:100ft)COAX CBL N-TYPE TO N-TYPE |
9,997 |
|
Datasheet |
LMR®-600 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 1200.0" (30.5m) 100.0' | LMR 600 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
TSA89-E1E1-S72COAX CBL 3.5MM TO 3.5MM |
250 |
|
Datasheet |
TSA | Bulk | Active | 3.5mm to 3.5mm | 3.5mm Plug | Male | Free Hanging (In-Line) | - | 3.5mm Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | 4.95mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 32 GHz | Black | Shielded | -55°C ~ 125°C | - | - |
|
|
RG214-LSZH-NM-NM(QTY:50M)COAX CBL N-TYPE TO N-TYPE |
9,999 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 1968.5" (50.0m) 164.0' | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
1-2016663-0COAX CBL 3.5MM TO 3.5MM |
4,458 |
|
Datasheet |
- | Bag | Active | 3.5mm to 3.5mm | 3.5mm Plug | Male | Free Hanging (In-Line) | - | 3.5mm Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | 6.00mm OD Coaxial Cable | - | - | 50 Ohms | 26.5 GHz | Black | Armored Cable, Shielded | -40°C ~ 85°C | - | - |
|
|
SP-292-MM-36-LPCOAX CBL 2.92MM TO 2.92MM |
1,294 |
|
Datasheet |
StabilityPlus | Retail Package | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 40 GHz | - | Color Coded, Flexible, Phase Stable, Shielded | - | - | - |
