Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
20963.6CABLE GLND RA 6.6-9.4MM PG9 ZINC |
1,621 |
|
- |
Cable Gland - 90° | 0.260" (6.60mm) | 0.370" (9.40mm) | PG9 | 0.330" (8.38mm) | - | 0.600" (15.2mm) | Zinc, Galvanized | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -20°C ~ 105°C | |
|
|
22008.2CABLE GLAND 29.97-38.1MM PG42 |
1,703 |
|
- |
Cable Gland | 1.180" (29.97mm) | 1.500" (38.10mm) | PG42 | 0.510" (12.95mm) | - | 2.150" (54.6mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | - | |
|
|
98600.6.1CABLE GLAND 2.03-6.1MM M16 BRASS |
2,650 |
|
- |
Cable Gland | 0.080" (2.03mm) | 0.240" (6.10mm) | M16x1.5 | 0.630" (16.00mm) | - | 0.630" (16.0mm) | Brass | - | Copper | IP68 - Dust Tight, Waterproof | - | |
|
|
96816.5CABLE GLAND 5-16.99MM M32 PVDF |
3,143 |
|
- |
Cable Gland - Flat Cables | 0.197" (5.00mm) | 0.669" (16.99mm) | M32x1.5 | 0.310" (7.87mm) | - | 1.260" (32.0mm) | Polyvinylidene Fluoride (PVDF) | - | Black | IP65 - Dust Tight, Water Resistant; NEMA 3 | -40°C ~ 150°C | |
|
|
96817.5CABLE GLAND 6.8-10.3MM M32 PVDF |
2,766 |
|
- |
Cable Gland - Flat Cables | 0.268" (6.80mm) | 0.406" (10.30mm) | M32x1.5 | 0.310" (7.87mm) | - | 1.260" (32.0mm) | Polyvinylidene Fluoride (PVDF) | - | Black | IP65 - Dust Tight, Water Resistant; NEMA 3 | -40°C ~ 150°C | |
|
|
96818.5CABLE GLAND 7-18.01MM M32 PVDF |
3,399 |
|
- |
Cable Gland - Flat Cables | 0.276" (7.00mm) | 0.709" (18.01mm) | M32x1.5 | 0.310" (7.87mm) | - | 1.260" (32.0mm) | Polyvinylidene Fluoride (PVDF) | - | Black | IP65 - Dust Tight, Water Resistant; NEMA 3 | -40°C ~ 150°C | |
|
|
96869.5CABLE GLAND 5-16MM M32 PVDF |
3,700 |
|
- |
Cable Gland - Flat Cables | 0.197" (5.00mm) | 0.630" (16.00mm) | M32x1.5 | 0.310" (7.87mm) | - | 1.260" (32.0mm) | Polyvinylidene Fluoride (PVDF) | - | Black | IP65 - Dust Tight, Water Resistant; NEMA 3 | -40°C ~ 150°C | |
|
|
96870.5CABLE GLAND 7-16.5MM M32 PVDF |
3,301 |
|
- |
Cable Gland - Flat Cables | 0.276" (7.00mm) | 0.650" (16.50mm) | M32x1.5 | 0.310" (7.87mm) | - | 1.260" (32.0mm) | Polyvinylidene Fluoride (PVDF) | - | Black | IP65 - Dust Tight, Water Resistant; NEMA 3 | -40°C ~ 150°C | |
|
|
96871.5CABLE GLAND 7-20MM M32 PVDF |
4,405 |
|
- |
Cable Gland - Flat Cables | 0.276" (7.00mm) | 0.787" (20.00mm) | M32x1.5 | 0.310" (7.87mm) | - | 1.260" (32.0mm) | Polyvinylidene Fluoride (PVDF) | - | Black | IP65 - Dust Tight, Water Resistant; NEMA 3 | -40°C ~ 150°C | |
|
|
97612.6CABLE GLAND 6.1-9.91MM M25 BRASS |
3,125 |
|
- |
Cable Gland | 0.240" (6.10mm) | 0.390" (9.91mm) | M25x1.5 | 0.300" (7.62mm) | - | 0.980" (24.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP54 - Dust Protected, Water Resistant; NEMA 13 | -40°C ~ 300°C | |
|
|
97613.6CABLE GLAND 7.87-11.94MM M25 |
1,408 |
|
- |
Cable Gland | 0.310" (7.87mm) | 0.470" (11.94mm) | M25x1.5 | 0.300" (7.62mm) | - | 0.980" (24.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP54 - Dust Protected, Water Resistant; NEMA 13 | -40°C ~ 300°C | |
|
|
97614.6CABLE GLAND 11.94-14.99MM M25 |
4,665 |
|
- |
Cable Gland | 0.470" (11.94mm) | 0.590" (14.99mm) | M25x1.5 | 0.300" (7.62mm) | - | 0.980" (24.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP54 - Dust Protected, Water Resistant; NEMA 13 | -40°C ~ 300°C | |
|
|
18601.6CABLE GLAND 7.87-10.92MM PG9 |
2,102 |
|
- |
Cable Gland | 0.310" (7.87mm) | 0.430" (10.92mm) | PG9 | 0.390" (9.91mm) | - | 0.600" (15.2mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
26166.6M32X1.5 PULL BEND |
3,517 |
|
- |
- | - | - | M32x1.5 | - | - | - | - | - | - | - | - | |
|
|
90427CABLE GLAND 10-14MM PG16 BRASS |
2,279 |
|
Datasheet |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | PG16 | 0.256" (6.50mm) | - | - | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
53112125CABLE GLAND 5-10MM M20 BRASS |
3,846 |
|
Datasheet |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | M20x1.5 | 0.472" (12.00mm) | - | - | Brass, Nickel Plated | - | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 4X, 6, 12 | -40°C ~ 100°C | |
|
|
98602.6.2CABLE GLND 4.06-7.87MM M18 BRASS |
3,392 |
|
- |
Cable Gland | 0.160" (4.06mm) | 0.310" (7.87mm) | M18x1.5 | 0.710" (18.03mm) | - | 0.710" (18.0mm) | Brass, Chrome Plated | - | Silver | IP68 - Dust Tight, Waterproof | - | |
|
|
1083320000CABLE GLAND 12-17.6MM M20 BRASS |
4,424 |
|
Datasheet |
Cable Gland | 0.472" (12.00mm) | 0.693" (17.60mm) | M20 | 0.630" (16.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -35°C ~ 90°C | |
|

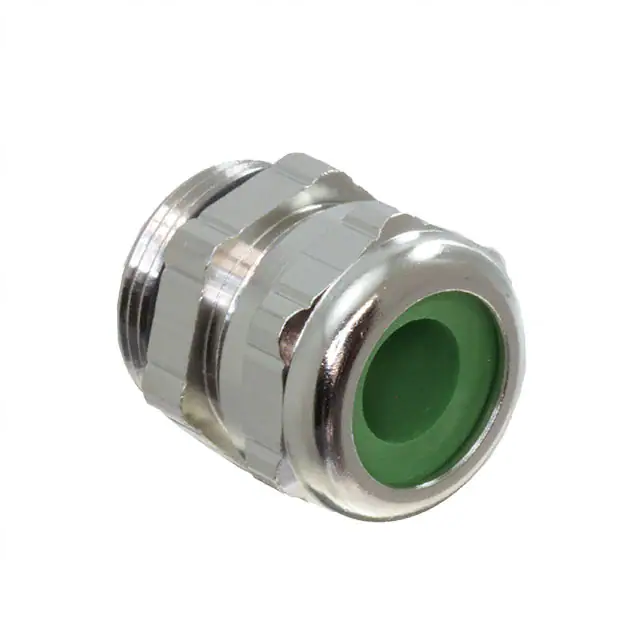

18628.6CABLE GLAND 6.86-10.41MM PG16 |
1,762 |
|
- |
Cable Gland | 0.270" (6.86mm) | 0.410" (10.41mm) | PG16 | 0.260" (6.60mm) | - | 0.890" (22.6mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
22306.6CABLE GLAND 18.03-24.89MM PG29 |
2,946 |
|
- |
Cable Gland | 0.710" (18.03mm) | 0.980" (24.89mm) | PG29 | 0.310" (7.87mm) | - | 1.457" (37.0mm) | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | - |
