Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1300980025CABLE GRIP 3.43-5.08MM 1/4" NPT |
1,101 |
|
Datasheet |
Cable Grip | 0.135" (3.43mm) | 0.200" (5.08mm) | 1/4" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
|
1300980120CABLE GRP 14.28-20.63MM 3/4" NPT |
3,984 |
|
Datasheet |
Cable Grip | 0.562" (14.28mm) | 0.812" (20.63mm) | 3/4" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | - | - | - | |
|
|
22654.6CABLE GLAND BRASS |
3,620 |
|
- |
Cable Gland - Flat Cables | - | - | - | 0.350" (8.89mm) | - | 1.850" (47.0mm) | Brass, Nickel Plated | - | Silver | IP55 - Dust Protected, Water Resistant | - | |
|
|
22656.6CABLE GLAND BRASS |
1,145 |
|
- |
Cable Gland - Flat Cables | - | - | - | 0.350" (8.89mm) | - | 1.850" (47.0mm) | Brass, Nickel Plated | - | Silver | IP55 - Dust Protected, Water Resistant | - | |
|
|
22650.6CABLE GLAND BRASS |
1,866 |
|
- |
Cable Gland - Flat Cables | - | - | - | 0.350" (8.89mm) | - | 1.850" (47.0mm) | Brass, Nickel Plated | - | Silver | IP55 - Dust Protected, Water Resistant | - | |
|
|
22652.6CABLE GLAND BRASS |
4,898 |
|
- |
Cable Gland - Flat Cables | - | - | - | 0.350" (8.89mm) | - | 1.850" (47.0mm) | Brass, Nickel Plated | - | Silver | IP55 - Dust Protected, Water Resistant | - | |
|

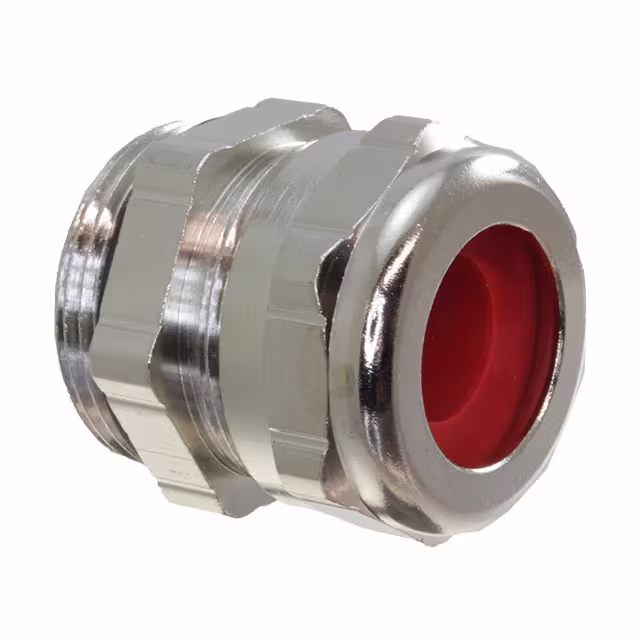

21662.6CABLE GLAND 8.89-12.95MM PG21 |
1,890 |
|
Datasheet |
Cable Gland | 0.350" (8.89mm) | 0.510" (12.95mm) | PG21 | 0.280" (7.11mm) | - | 1.120" (28.4mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
21664.6CABLE GLAND 11.43-15.5MM PG21 |
1,758 |
|
- |
Cable Gland | 0.450" (11.43mm) | 0.610" (15.50mm) | PG21 | 0.280" (7.11mm) | - | 1.120" (28.4mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
M5240CABLE GRP RA 11.13-12.7MM 1/2NPT |
2,500 |
|
Datasheet |
Cable Grip - 90° | 0.438" (11.13mm) | 0.500" (12.70mm) | 1/2" NPT | 0.560" (14.22mm) | - | 0.880" (22.4mm) | Aluminum | - | Silver | IP67 - Dust Tight, Waterproof | -40°C ~ 121°C | |
|
|
1461190000CABLE GLAND 30-38MM M50 POLYAMID |
2,122 |
|
- |
Cable Gland | 1.181" (30.00mm) | 1.496" (38.00mm) | M50 | 0.709" (18.01mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Black | IP54/IP66/IP67/IP68 - Dust Protected, Dust Tight, Water Resistant, Waterproof | -40°C ~ 80°C | |
|
|
18002.4CABLE GLAND MULT 3/8" NPT PVDF |
4,333 |
|
- |
Cable Gland - Multiple Openings | - | - | 3/8" NPT | - | - | - | Polyvinylidene Fluoride (PVDF) | - | Opaque | - | - | |
|
|
21590.6CABLE GLAND 4.06-6.6MM PG9 BRASS |
2,301 |
|
- |
Cable Gland | 0.160" (4.06mm) | 0.260" (6.60mm) | PG9 | 0.390" (9.91mm) | - | 0.600" (15.2mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
98172.1CABLE GLAND 16-24.89MM M50 |
1,508 |
|
- |
Cable Gland | 0.630" (16.00mm) | 0.980" (24.89mm) | M50x1.5 | 0.710" (18.03mm) | - | 1.969" (50.0mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | - | |
|
|
98152.2CABLE GLAND 16-24.89MM M50 |
3,635 |
|
- |
Cable Gland | 0.630" (16.00mm) | 0.980" (24.89mm) | M50x1.5 | 0.710" (18.03mm) | - | 1.969" (50.0mm) | Polyamide (PA), Nylon | - | Light Gray | IP68 - Dust Tight, Waterproof | - | |
|
|
96504.4CABLE GLAND M32 PVDF |
4,652 |
|
- |
Cable Gland - No Openings | - | - | M32x1.5 | - | - | - | Polyvinylidene Fluoride (PVDF) | - | Opaque | - | - | |
|
|
19290.6CABLE GLAND MULT PG16 BRASS |
3,358 |
|
- |
Cable Gland - Multiple Openings | - | - | PG16 | - | - | - | Brass, Nickel Plated | Sealing Ring | Silver | - | - | |
|
|
19291.6CABLE GLAND MULT PG16 BRASS |
1,831 |
|
- |
Cable Gland - Multiple Openings | - | - | PG16 | - | - | - | Brass, Nickel Plated | - | Silver | - | - | |
|
|
19292.6CABLE GLAND MULT PG16 BRASS |
2,083 |
|
- |
Cable Gland - Multiple Openings | - | - | PG16 | - | - | - | Brass, Nickel Plated | - | Silver | - | - | |
|
|
19293.6CABLE GLAND MULT PG16 BRASS |
3,922 |
|
- |
Cable Gland - Multiple Openings | - | - | PG16 | - | - | - | Brass, Nickel Plated | Sealing Ring | Silver | - | - | |
|
|
19294.6CABLE GLAND MULT PG16 BRASS |
4,362 |
|
- |
Cable Gland - Multiple Openings | - | - | PG16 | - | - | - | Brass, Nickel Plated | Sealing Ring | Silver | - | - |
