Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
20807.4CABLE GLAND 8.38-10.41MM PG16 |
4,157 |
|
- |
Cable Gland | 0.330" (8.38mm) | 0.410" (10.41mm) | PG16 | 0.260" (6.60mm) | - | 0.890" (22.6mm) | Polyvinylidene Fluoride (PVDF) | Strain Relief | Opaque | IP65 - Dust Tight, Water Resistant; NEMA 4X | -40°C ~ 150°C | |
|
|
20808.4CABLE GLND 9.4-12.95MM PG16 PVDF |
2,558 |
|
- |
Cable Gland | 0.370" (9.40mm) | 0.510" (12.95mm) | PG16 | 0.260" (6.60mm) | - | 0.890" (22.6mm) | Polyvinylidene Fluoride (PVDF) | Strain Relief | Opaque | IP65 - Dust Tight, Water Resistant; NEMA 4X | -40°C ~ 150°C | |
|
|
95653.4CABLE GLAND RA M20 POLYAMIDE |
3,321 |
|
- |
Cable Gland - 90° | - | - | M20x1.5 | - | - | - | Polyamide (PA), Nylon | - | - | - | - | |
|
|
95653.5CABLE GLAND RA M20 POLYAMIDE |
3,930 |
|
- |
Cable Gland - 90° | - | - | M20x1.5 | - | - | - | Polyamide (PA), Nylon | - | - | - | - | |
|
|
95654.4CABLE GLAND RA M20 POLYAMIDE |
4,687 |
|
- |
Cable Gland - 90° | - | - | M20x1.5 | - | - | - | Polyamide (PA), Nylon | - | - | - | - | |
|
|
95654.5CABLE GLAND RA M20 POLYAMIDE |
2,646 |
|
- |
Cable Gland - 90° | - | - | M20x1.5 | - | - | - | Polyamide (PA), Nylon | - | - | - | - | |
|
|
95655.4CABLE GLAND RA M20 POLYAMIDE |
2,170 |
|
- |
Cable Gland - 90° | - | - | M20x1.5 | - | - | - | Polyamide (PA), Nylon | - | - | - | - | |
|
|
95655.5CABLE GLAND RA M20 POLYAMIDE |
1,912 |
|
- |
Cable Gland - 90° | - | - | M20x1.5 | - | - | - | Polyamide (PA), Nylon | - | - | - | - | |
|
|
95656.4CABLE GLAND RA M20 POLYAMIDE |
2,051 |
|
- |
Cable Gland - 90° | - | - | M20x1.5 | - | - | - | Polyamide (PA), Nylon | - | - | - | - | |
|
|
95656.5CABLE GLAND RA M20 POLYAMIDE |
3,520 |
|
- |
Cable Gland - 90° | - | - | M20x1.5 | - | - | - | Polyamide (PA), Nylon | - | - | - | - | |
|
|
95657.4CABLE GLAND RA M20 POLYAMIDE |
2,448 |
|
- |
Cable Gland - 90° | - | - | M20x1.5 | - | - | - | Polyamide (PA), Nylon | - | - | - | - | |
|
|
95657.5CABLE GLAND RA M20 POLYAMIDE |
4,679 |
|
- |
Cable Gland - 90° | - | - | M20x1.5 | - | - | - | Polyamide (PA), Nylon | - | - | - | - | |
|
|
19565.5CABLE GLAND 1/2" NPT PVDF |
3,051 |
|
- |
Cable Gland - No Openings | - | - | 1/2" NPT | - | - | - | Polyvinylidene Fluoride (PVDF) | - | Black | - | - | |
|
|
905182CABLE GLAND 5-10MM M16 BRASS |
4,218 |
|
Datasheet |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | M16x1.5 | 0.236" (6.00mm) | - | - | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
50.021/EMVCABLE GLND 13-18.01MM PG21 BRASS |
2,938 |
|
Datasheet |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | PG21 | 0.276" (7.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
53017440CABLE GLAND 9-14MM M25 POLYAMIDE |
1,035 |
|
Datasheet |
Cable Gland | 0.354" (9.00mm) | 0.551" (14.00mm) | M25x1.5 | 0.512" (13.00mm) | - | - | Polyamide (PA), Nylon | - | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|

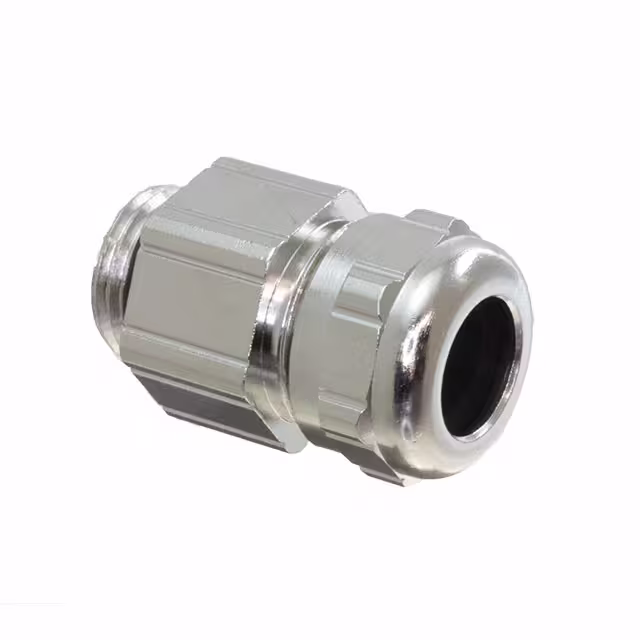

21502.6CABLE GLAND 6.6-9.4MM PG9 BRASS |
3,364 |
|
- |
Cable Gland | 0.260" (6.60mm) | 0.370" (9.40mm) | PG9 | 0.240" (6.10mm) | - | 0.600" (15.2mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
26661.2CABLE GLAND M50 |
4,713 |
|
- |
Cable Gland | - | - | M50x1.5 | - | - | - | - | - | - | - | - | |
|
|
26662.2CABLE GLAND M50 |
4,473 |
|
- |
Cable Gland | - | - | M50x1.5 | - | - | - | - | - | - | - | - | |
|
|
22703.6CABLE GLAND RA PG16 |
3,228 |
|
- |
Cable Gland - 90° | - | - | PG16 | - | - | - | - | - | - | - | - |
