Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19207.5CABLE GLAND MULT PG9 PVDF |
1,440 |
|
- |
Cable Gland - Multiple Openings | - | - | PG9 | - | - | - | Polyvinylidene Fluoride (PVDF) | - | Black | - | - | |
|
|
98515.6CABLE GLAND 8.89-20.07MM PG21 |
4,959 |
|
- |
Cable Gland | 0.350" (8.89mm) | 0.790" (20.07mm) | PG21 | 0.280" (7.11mm) | - | 1.140" (28.9mm) | Brass, Nickel Plated | - | Silver | IP65 - Dust Tight, Water Resistant | - | |
|
|
K100-1025-00-EXPERFECT PLUS EX-CABLE GLAND M25 |
3,479 |
|
Datasheet |
Cable Gland | 0.394" (10.00mm) | 0.669" (16.99mm) | M25x1.5 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | - | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 85°C | |
|
|
22632.6CABLE GLAND 5.08-8.89MM PG11 |
1,515 |
|
- |
Cable Gland | 0.200" (5.08mm) | 0.350" (8.89mm) | PG11 | 0.240" (6.10mm) | - | 0.732" (18.6mm) | Brass, Nickel Plated | Strain Relief | Silver | IP68 - Dust Tight, Waterproof | - | |
|

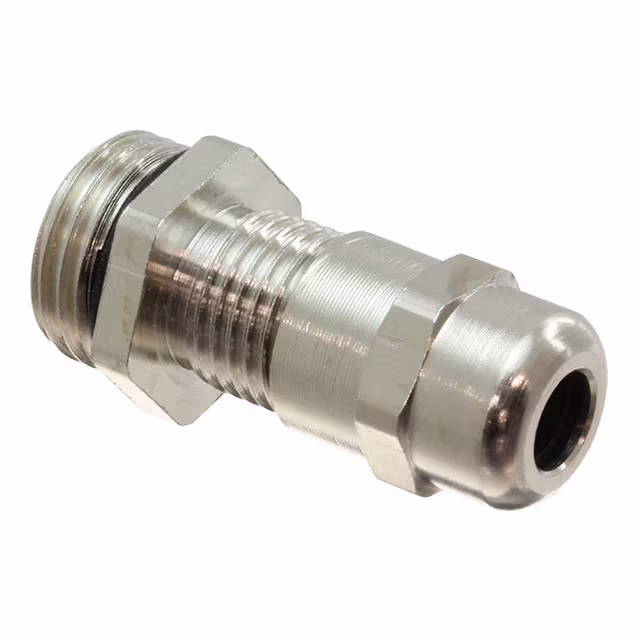

4264116CABLE GLAND 4-6.5MM M16 BRASS |
4,142 |
|
Datasheet |
Cable Gland | 0.157" (4.00mm) | 0.256" (6.50mm) | M16x1.5 | 0.276" (7.00mm) | - | 0.630" (16.0mm) | Brass, Nickel Plated | Clamping Ring, Sealing Ring | Silver | IP68 - Dust Tight, Waterproof | -25°C ~ 120°C | |
|
|
22265.8CABLE GLND 13.97-18.03MM PG21 PC |
3,162 |
|
- |
Cable Gland | 0.550" (13.97mm) | 0.710" (18.03mm) | PG21 | 0.430" (10.92mm) | - | 1.114" (28.3mm) | Polycarbonate (PC) | - | Light Gray | IP68 - Dust Tight, Waterproof | - | |
|
|
96016.4CABLE GLAND MULT M16 PVDF |
2,388 |
|
- |
Cable Gland - Multiple Openings | - | - | M16x1.5 | - | - | - | Polyvinylidene Fluoride (PVDF) | - | Opaque | - | - | |
|
|
96017.4CABLE GLAND MULT M16 PVDF |
1,453 |
|
- |
Cable Gland - Multiple Openings | - | - | M16x1.5 | - | - | - | Polyvinylidene Fluoride (PVDF) | - | Opaque | - | - | |
|
|
96018.4CABLE GLAND M16 PVDF |
3,100 |
|
- |
Cable Gland | - | - | M16x1.5 | - | - | - | Polyvinylidene Fluoride (PVDF) | - | Opaque | - | - | |
|
|
96019.4CABLE GLAND M16 PVDF |
2,143 |
|
- |
Cable Gland | - | - | M16x1.5 | - | - | - | Polyvinylidene Fluoride (PVDF) | - | Opaque | - | - | |
|
|
96020.4CABLE GLAND MULT M16 PVDF |
4,417 |
|
- |
Cable Gland - Multiple Openings | - | - | M16x1.5 | - | - | - | Polyvinylidene Fluoride (PVDF) | - | Opaque | - | - | |
|
|
96021.4CABLE GLAND MULT M16 PVDF |
2,656 |
|
- |
Cable Gland - Multiple Openings | - | - | M16x1.5 | - | - | - | Polyvinylidene Fluoride (PVDF) | - | Opaque | - | - | |
|
|
25410.6/15CABLE GLAND 4.06-6.6MM M25 BRASS |
3,028 |
|
- |
Cable Gland | 0.160" (4.06mm) | 0.260" (6.60mm) | M25x1.5 | 0.590" (14.99mm) | - | 0.980" (24.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
25413.6/15CABLE GLAND 7.11-10.41MM M25 |
2,175 |
|
- |
Cable Gland | 0.280" (7.11mm) | 0.410" (10.41mm) | M25x1.5 | 0.590" (14.99mm) | - | 0.980" (24.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
25414.6/15CABLE GLAND 8.89-12.95MM M25 |
4,789 |
|
- |
Cable Gland | 0.350" (8.89mm) | 0.510" (12.95mm) | M25x1.5 | 0.590" (14.99mm) | - | 0.980" (24.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
25415.6/15CABLE GLAND 11.43-15.5MM M25 |
4,423 |
|
- |
Cable Gland | 0.450" (11.43mm) | 0.610" (15.50mm) | M25x1.5 | 0.590" (14.99mm) | - | 0.980" (24.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
98807.9PG36 THREADED THREADED PLUG |
2,748 |
|
- |
- | - | - | PG36 | - | - | - | - | - | - | - | - | |
|
|
21552.4CABLE GLAND 3/4" NPT PVDF |
3,470 |
|
- |
Cable Gland - No Openings | - | - | 3/4" NPT | - | - | - | Polyvinylidene Fluoride (PVDF) | - | Opaque | - | - | |
|
RTS0L-18CGCABLE GRIP 10-18.01MM 1 1/16-18 |
4,107 |
|
Datasheet |
Cable Grip | 0.394" (10.00mm) | 0.709" (18.01mm) | 1 1/16-18 | - | - | - | Thermoplastic | - | Black | - | - | |
|
|
26210.6CABLE GLAND M40 |
1,124 |
|
- |
Cable Gland - Flat Cables | - | - | M40x1.5 | - | - | - | - | - | - | - | - |
