Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4221721CABLE GLAND 8-12MM M20 BRASS |
1,226 |
|
- |
Cable Gland | 0.315" (8.00mm) | 0.472" (12.00mm) | M20x1.5 | 0.276" (7.00mm) | - | 0.787" (20.0mm) | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | -25°C ~ 120°C | |
|
|
21156.6CABLE GLAND 5-12MM PG16 BRASS |
2,507 |
|
- |
Cable Gland - Flat Cables | 0.197" (5.00mm) | 0.472" (12.00mm) | PG16 | 0.260" (6.60mm) | - | 0.890" (22.6mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP65 - Dust Tight, Water Resistant; NEMA 3 | -40°C ~ 300°C | |
|
|
21186.6CABLE GLAND 6-15MM PG16 BRASS |
3,858 |
|
- |
Cable Gland - Flat Cables | 0.236" (6.00mm) | 0.591" (15.00mm) | PG16 | 0.260" (6.60mm) | - | 0.890" (22.6mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP65 - Dust Tight, Water Resistant; NEMA 3 | -40°C ~ 300°C | |
|
|
18436.6CABLE GLAND 5-7MM PG16 BRASS |
2,767 |
|
- |
Cable Gland - Flat Cables | 0.197" (5.00mm) | 0.276" (7.00mm) | PG16 | 0.260" (6.60mm) | - | 0.890" (22.6mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP65 - Dust Tight, Water Resistant; NEMA 3 | -40°C ~ 300°C | |
|
|
18437.6CABLE GLAND 5-10MM PG16 BRASS |
1,263 |
|
- |
Cable Gland - Flat Cables | 0.197" (5.00mm) | 0.394" (10.00mm) | PG16 | 0.260" (6.60mm) | - | 0.890" (22.6mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP65 - Dust Tight, Water Resistant; NEMA 3 | -40°C ~ 300°C | |
|
|
18438.6CABLE GLND 6.5-16.5MM PG16 BRASS |
1,015 |
|
- |
Cable Gland - Flat Cables | 0.256" (6.50mm) | 0.650" (16.50mm) | PG16 | 0.260" (6.60mm) | - | 0.890" (22.6mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP65 - Dust Tight, Water Resistant; NEMA 3 | -40°C ~ 300°C | |
|
|
18439.6CABLE GLAND 8-10.5MM PG16 BRASS |
4,287 |
|
- |
Cable Gland - Flat Cables | 0.315" (8.00mm) | 0.413" (10.50mm) | PG16 | 0.260" (6.60mm) | - | 0.890" (22.6mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP65 - Dust Tight, Water Resistant; NEMA 3 | -40°C ~ 300°C | |
|
|
53111230CABLE GLAND 8-16.99MM M25 |
1,390 |
|
Datasheet |
Cable Gland | 0.315" (8.00mm) | 0.669" (16.99mm) | M25x1.5 | 0.394" (10.00mm) | - | - | Polyamide | - | Black | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
|
95742.4CABLE GLND 8.89-12.95MM M16 PVDF |
1,090 |
|
- |
Cable Gland | 0.350" (8.89mm) | 0.510" (12.95mm) | M16x1.5 | 0.350" (8.89mm) | - | 0.630" (16.0mm) | Polyvinylidene Fluoride (PVDF) | - | Opaque | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
90755CABLE GLAND 11-16MM M25 BRASS |
4,278 |
|
Datasheet |
Cable Gland | 0.433" (11.00mm) | 0.630" (16.00mm) | M25 | - | - | - | Brass, Nickel Plated | - | - | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
|
96785.4CABLE GLAND 6.6-8.89MM 3/8"NPT |
1,124 |
|
- |
Cable Gland | 0.260" (6.60mm) | 0.350" (8.89mm) | 3/8" NPT | 0.510" (12.95mm) | - | 0.681" (17.3mm) | Polyvinylidene Fluoride (PVDF) | Strain Relief | Opaque | IP65 - Dust Tight, Water Resistant; NEMA 4X | -40°C ~ 150°C | |
|
|
95305.6CABLE GLAND 6.6-9.4MM M20 BRASS |
3,784 |
|
- |
Cable Gland | 0.260" (6.60mm) | 0.370" (9.40mm) | M20x1.5 | - | - | 0.790" (20.1mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP54 - Dust Protected, Water Resistant; NEMA 13 | -40°C ~ 300°C | |
|
|
95306.6CABLE GLAND 6.1-9.91MM M20 BRASS |
2,550 |
|
- |
Cable Gland | 0.240" (6.10mm) | 0.390" (9.91mm) | M20x1.5 | - | - | 0.790" (20.1mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP54 - Dust Protected, Water Resistant; NEMA 13 | -40°C ~ 300°C | |
|
|
95307.6CABLE GLAND 7.87-11.94MM M20 |
4,397 |
|
- |
Cable Gland | 0.310" (7.87mm) | 0.470" (11.94mm) | M20x1.5 | - | - | 0.790" (20.1mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP54 - Dust Protected, Water Resistant; NEMA 13 | -40°C ~ 300°C | |
|

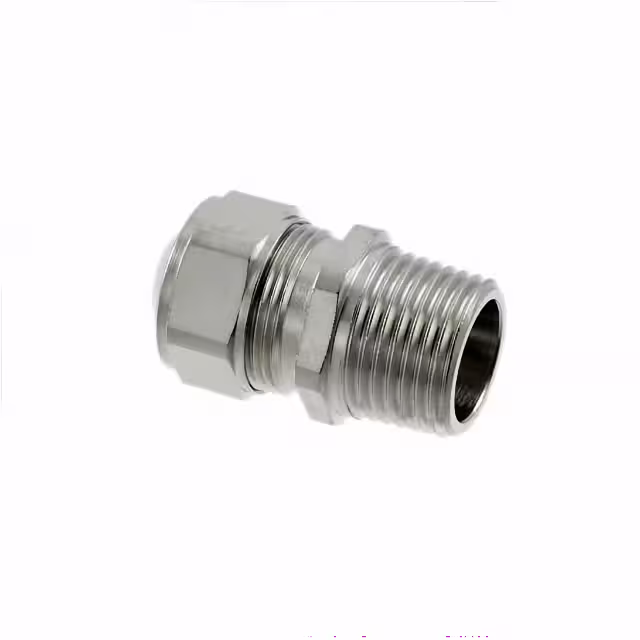

A1000.3/8NPT.045CABLE GLAND 3.5-4.5MM 3/8" NPT |
1,337 |
|
Datasheet |
Cable Gland | 0.138" (3.50mm) | 0.177" (4.50mm) | 3/8" NPT | 0.472" (12.00mm) | - | - | Brass, Nickel Plated | Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|

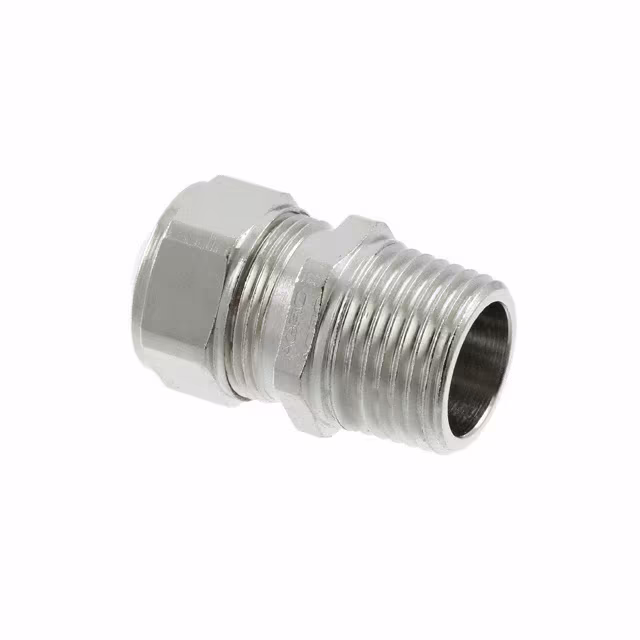

A1000.3/8NPT.060CABLE GLAND 4.5-6MM 3/8" NPT |
4,496 |
|
Datasheet |
Cable Gland | 0.177" (4.50mm) | 0.236" (6.00mm) | 3/8" NPT | 0.472" (12.00mm) | - | - | Brass, Nickel Plated | Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|

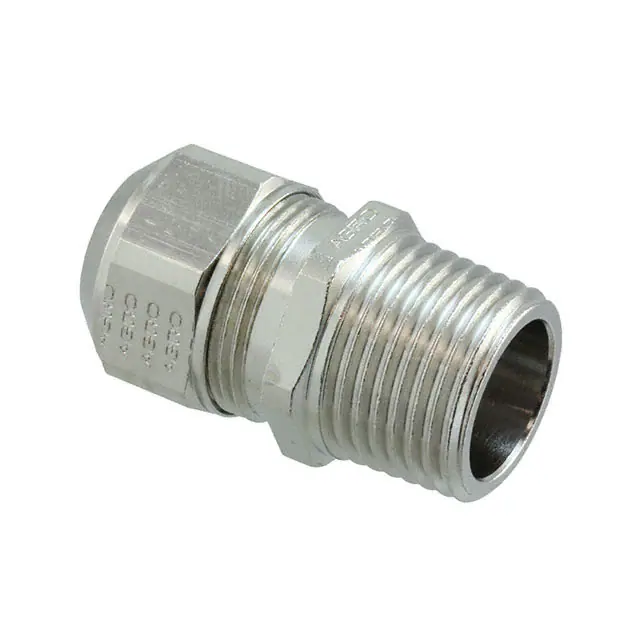

A1000.3/8NPT.105CABLE GLAND 8-10.5MM 3/8" NPT |
1,467 |
|
Datasheet |
Cable Gland | 0.315" (8.00mm) | 0.413" (10.50mm) | 3/8" NPT | 0.472" (12.00mm) | - | - | Brass, Nickel Plated | Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
NETC-P-M20CABLE FITTING |
4,849 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | |
|
|
904828CABLE GLAND M32 POLYAMIDE |
2,844 |
|
Datasheet |
Cable Gland | - | - | M32x1.5 | 0.591" (15.00mm) | - | - | Polyamide (PA6), Nylon 6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
|
97601.6CABLE GLAND 4.06-6.6MM M12 BRASS |
2,673 |
|
- |
Cable Gland | 0.160" (4.06mm) | 0.260" (6.60mm) | M12x1.5 | 0.200" (5.08mm) | - | 0.470" (11.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP54 - Dust Protected, Water Resistant; NEMA 13 | -40°C ~ 300°C |
