Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
96766.5CABLE GLAND 6.1-8.38MM 3/8"NPT |
2,859 |
|
- |
Cable Gland | 0.240" (6.10mm) | 0.330" (8.38mm) | 3/8" NPT | 0.510" (12.95mm) | - | 0.675" (17.2mm) | Polyvinylidene Fluoride (PVDF) | Strain Relief | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
96767.5CABLE GLAND 6.6-9.4MM 3/8"NPT |
2,751 |
|
- |
Cable Gland | 0.260" (6.60mm) | 0.370" (9.40mm) | 3/8" NPT | 0.510" (12.95mm) | - | 0.675" (17.2mm) | Polyvinylidene Fluoride (PVDF) | Strain Relief | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
A1100.16.150CABLE GLAND 11-15MM PG16 BRASS |
4,181 |
|
Datasheet |
Cable Gland | 0.433" (11.00mm) | 0.591" (15.00mm) | PG16 | 0.394" (10.00mm) | - | 0.886" (22.5mm) | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
1424532CABLE GLAND 4-7MM M12 POLYAMIDE |
3,651 |
|
Datasheet |
Cable Gland | 0.157" (4.00mm) | 0.276" (7.00mm) | M12x1.5 | 0.315" (8.00mm) | - | - | Polyamide (PA), Nylon | Gasket, Seal | Gray | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
|
1424536CABLE GLAND 4-7MM M16 POLYAMIDE |
4,712 |
|
Datasheet |
Cable Gland | 0.157" (4.00mm) | 0.276" (7.00mm) | M16x1.5 | 0.394" (10.00mm) | - | - | Polyamide (PA), Nylon | Gasket, Seal | Black | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
|
1424533CABLE GLAND 4-7MM M16 POLYAMIDE |
3,607 |
|
Datasheet |
Cable Gland | 0.157" (4.00mm) | 0.276" (7.00mm) | M16x1.5 | 0.394" (10.00mm) | - | - | Polyamide (PA), Nylon | Gasket, Seal | Gray | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
|
97300.6CABLE GLAND M10 BRASS |
2,898 |
|
- |
Cable Gland | - | - | M10x1 | - | - | - | Brass, Nickel Plated | - | Silver | - | - | |
|
|
97301.6CABLE GLAND M12 BRASS |
2,671 |
|
- |
Cable Gland | - | - | M12x1.5 | - | - | - | Brass, Nickel Plated | - | Silver | - | - | |
|
|
98131.1CABLE GLAND 16-27.94MM M40 |
3,662 |
|
- |
Cable Gland | 0.630" (16.00mm) | 1.100" (27.94mm) | M40x1.5 | 0.470" (11.94mm) | - | 1.570" (39.9mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | - | |
|
50.114/EMV/RCABLE GLAND 3-9MM 1/4" NPT BRASS |
1,296 |
|
Datasheet |
Cable Gland | 0.118" (3.00mm) | 0.354" (9.00mm) | 1/4" NPT | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
25407.6.1/15CABLE GLAND M20 |
2,494 |
|
- |
Cable Gland | - | - | M20x1.5 | - | - | - | - | - | - | - | - | |
|
|
25402.6/15CABLE GLAND 4.06-6.6MM M16 BRASS |
3,583 |
|
- |
Cable Gland | 0.160" (4.06mm) | 0.260" (6.60mm) | M16x1.5 | 0.590" (14.99mm) | - | 0.630" (16.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
25403.6/15CABLE GLND 5.08-7.87MM M16 BRASS |
1,436 |
|
- |
Cable Gland | 0.200" (5.08mm) | 0.310" (7.87mm) | M16x1.5 | 0.590" (14.99mm) | - | 0.630" (16.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
25404.6/15CABLE GLAND 6.6-9.4MM M16 BRASS |
3,429 |
|
- |
Cable Gland | 0.260" (6.60mm) | 0.370" (9.40mm) | M16x1.5 | 0.590" (14.99mm) | - | 0.630" (16.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
50.640PA/SW/VPERFECT CABLE GLAND POLYAMIDE WI |
3,836 |
|
Datasheet |
Cable Gland | - | - | M40x1.5 | 0.394" (10.00mm) | - | - | Polyamide (PA6), Nylon 6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

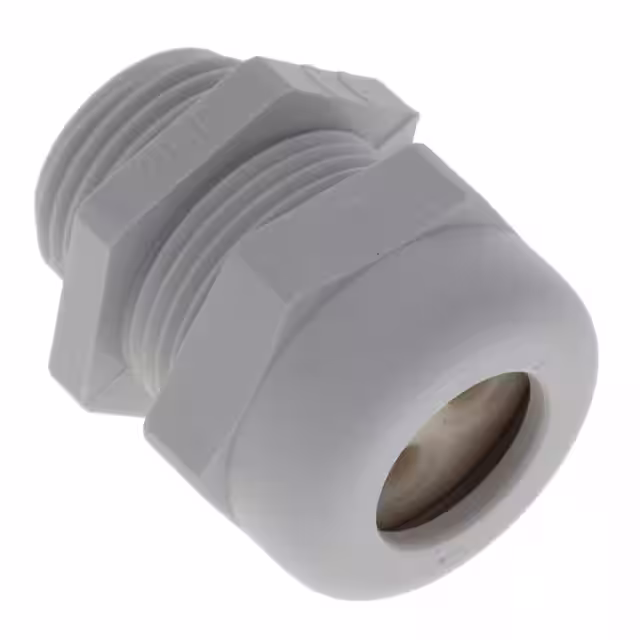

5316207CABLE GLAND MULT M20 POLYAMIDE |
1,555 |
|
- |
Cable Gland - Multiple Openings | - | - | M20x1.5 | 0.354" (9.00mm) | - | 0.157" (4.0mm) | Polyamide (PA6), Nylon 6 | - | Gray | IP68 - Dust Tight, Waterproof | -30°C ~ 120°C | |
|
|
90771CABLE GLAND 4-8MM PG9 BRASS |
3,896 |
|
Datasheet |
Cable Gland | 0.157" (4.00mm) | 0.315" (8.00mm) | PG9 | 0.236" (6.00mm) | - | - | Brass | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
S2413CABLE GLAND 4-8.99MM PG13 |
2,970 |
|
Datasheet |
Cable Gland | 0.157" (4.00mm) | 0.354" (8.99mm) | PG13 | 0.354" (9.00mm) | - | - | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -20°C ~ 80°C | |
|
|
S1413CABLE GLAND 4-8.99MM PG13 |
2,165 |
|
Datasheet |
Cable Gland | 0.157" (4.00mm) | 0.354" (8.99mm) | PG13 | 0.354" (9.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -20°C ~ 80°C | |
|
|
153D8EXCABLE GLAND PG16 BRASS |
4,916 |
|
- |
Cable Gland | - | - | PG16 | - | - | - | Brass, Nickel Plated | - | Silver | - | - |
