Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
ULCH-09-525-S(M)BUZZER PNL MNT |
1,000 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | - |
|
XC-09-301-QBUZZER PIEZO 35.81MM PNL MNT |
999 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | AC | - | 130 ~ 220V | 2.9kHz | Piezo | Single Tone | - | 103dB @ 220V, 61cm | 30 ~ 50mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
|
XC-09-201-QBUZZER PIEZO 35.8MM PNL MNT |
985 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | AC | - | 30 ~ 120V | 2.9kHz | Piezo | Single Tone | - | 103dB @ 120V, 61cm | 10 ~ 45mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.409" Dia (35.80mm) |
|
XC-09-201-WBUZZER PIEZO 35.8MM PNL MNT |
1,000 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | AC | - | 30 ~ 120V | 2.9kHz | Piezo | Single Tone | - | 103dB @ 120V, 61cm | 10 ~ 45mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.409" Dia (35.80mm) |
|

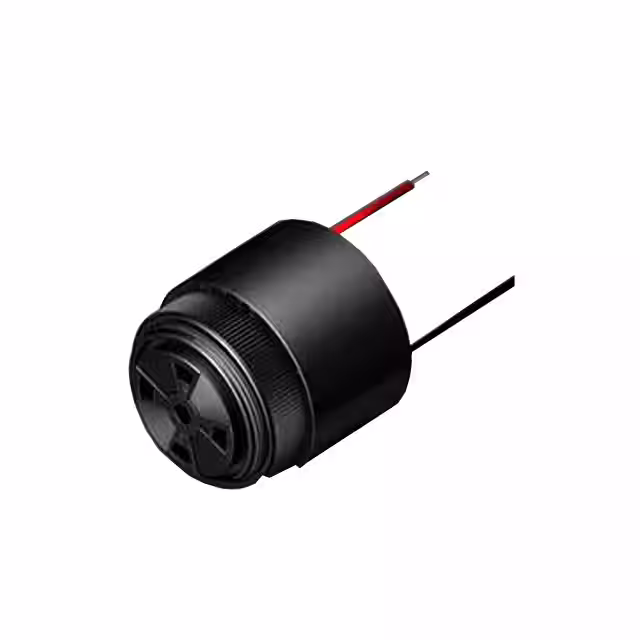

XC-09-301-WBUZZER PIEZO 35.81MM PNL MNT |
1,000 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | AC | - | 130 ~ 220V | 2.9kHz | Piezo | Single Tone | - | 103dB @ 220V, 61cm | 30 ~ 50mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410" Dia (35.81mm) |
|
XC-09-301-SBUZZER PIEZO 35.81MM PNL MNT |
1,000 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | AC | - | 130 ~ 220V | 2.9kHz | Piezo | Single Tone | - | 103dB @ 220V, 61cm | 30 ~ 50mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
|

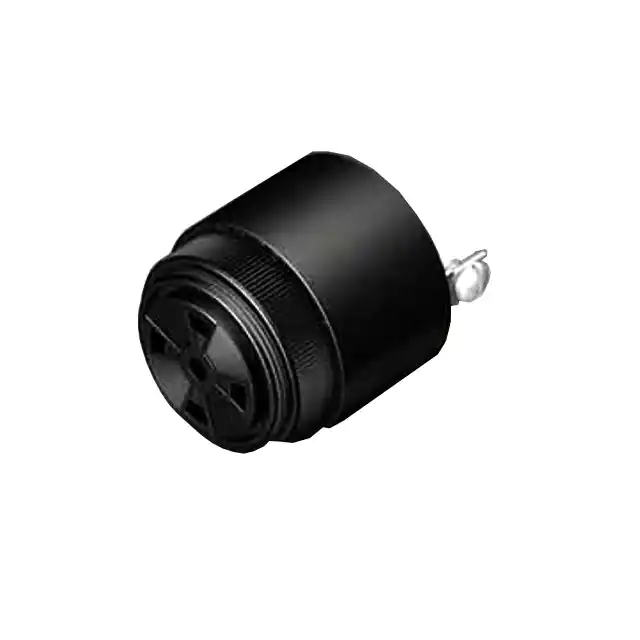

XC-09-201-SBUZZER PIEZO 35.81MM PNL MNT |
997 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | AC | - | 30 ~ 120V | 2.9kHz | Piezo | Single Tone | - | 103dB @ 120V, 61cm | 10 ~ 45mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
.jpg)
|
CH-09-525-Q(F)BUZZER PIEZO 35.81MM PNL MNT |
1,000 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 25V | 2.9kHz | Piezo | Chime | - | 93dB @ 25V, 61cm | 5 ~ 25mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
.jpg)
|
CH-09-525-Q(S)BUZZER PIEZO 35.8MM PNL MNT |
999 |
|
Datasheet |
Chime | Bulk | Active | - | DC | - | 5 ~ 25V | 2.1kHz | Piezo | Chime, Single Shot | - | 93dB @ 25V, 61cm | 10 ~ 45mA | Top | -20°C ~ 65°C | - | - | - | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.409" Dia (35.80mm) |
.jpg)
|

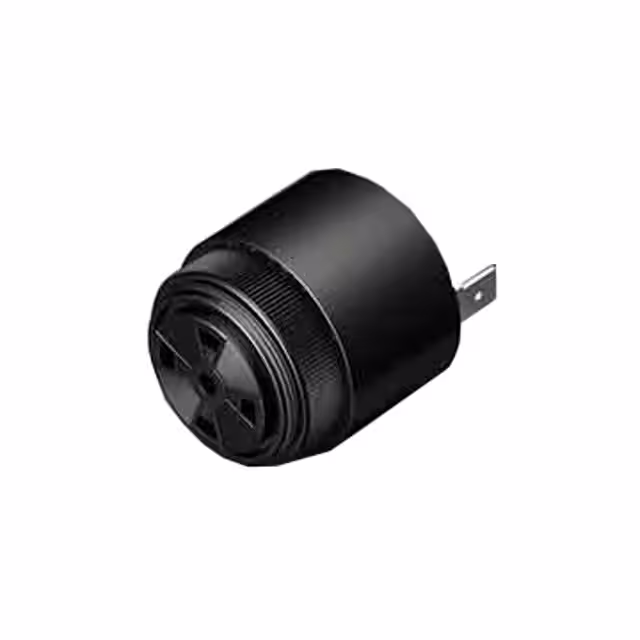

CH-09-525-Q(HS)BUZZER PIEZO 35.8MM PNL MNT |
999 |
|
- |
Chime | Bulk | Active | - | DC | - | 5 ~ 25V | 2.1kHz | Piezo | Chime, Single Shot | - | 93dB @ 25V, 61cm | 5 ~ 25mA | Top | -20°C ~ 65°C | - | - | - | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.409" Dia (35.80mm) |
.jpg)
|
CH-09-525-Q(M)BUZZER PIEZO 35.81MM PNL MNT |
998 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 25V | 2.9kHz | Piezo | Chime | - | 93dB @ 25V, 61cm | 5 ~ 25mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
.jpg)
|
CH-09-525-W(F)BUZZER PIEZO 35.8MM PNL MNT |
1,000 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 25V | 2.9kHz | Piezo | Chime | - | 93dB @ 25V, 61cm | 5 ~ 25mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.409" Dia (35.80mm) |
.jpg)
|
CH-09-525-S(F)BUZZER PIEZO 35.8MM PNL MNT |
1,000 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 25V | 2.9kHz | Piezo | Chime | - | 93dB @ 25V, 61cm | 5 ~ 25mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.409" Dia (35.80mm) |
.jpg)
|
CH-09-525-W(M)BUZZER PIEZO 35.8MM PNL MNT |
1,000 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 25V | 2.9kHz | Piezo | Chime | - | 93dB @ 25V, 61cm | 5 ~ 25mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.409" Dia (35.80mm) |
.jpg)
|
CH-09-525-S(S)BUZZER PIEZO 35.81MM PNL MNT |
1,000 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 25V | 2.1kHz | Piezo | Chime, Single Shot | - | 93dB @ 25V, 61cm | 10 ~ 45mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
.jpg)
|
CH-09-525-S(M)BUZZER PIEZO 35.81MM PNL MNT |
1,000 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 25V | 2.9kHz | Piezo | Chime | - | 93dB @ 25V, 61cm | 5 ~ 25mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
.jpg)
|
CH-09-525-W(S)BUZZER PIEZO 35.81MM PNL MNT |
999 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 25V | 2.1kHz | Piezo | Chime, Single Shot | - | 93dB @ 25V, 61cm | 10 ~ 45mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410" Dia (35.81mm) |
|
XC-V09-201-QBUZZER PIEZO 35.8MM PNL MNT |
1,000 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | AC | - | 30 ~ 120V | 2.9kHz | Piezo | Single Tone | - | 103dB @ 12V, 61cm | 10 ~ 45mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.409" Dia (35.80mm) |
|

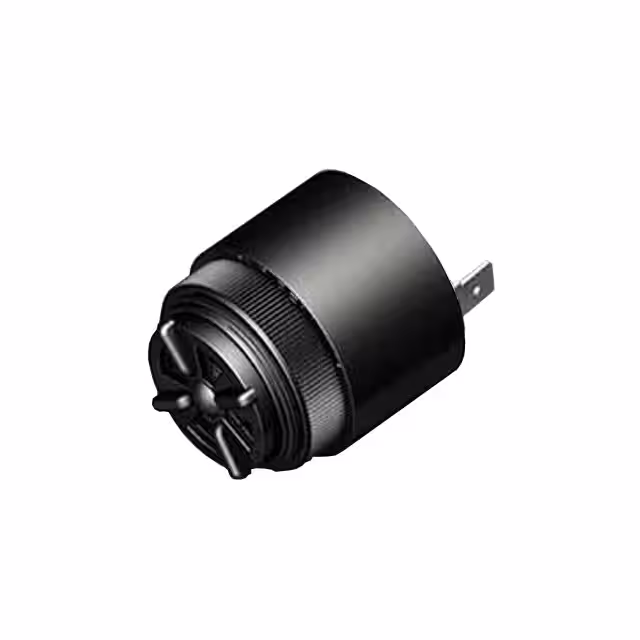

XC-V09-301-QBUZZER PIEZO 35.81MM PNL MNT |
1,000 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | AC | - | 130 ~ 220V | 2.9kHz | Piezo | Single Tone | - | 103dB @ 220V, 61cm | 30 ~ 50mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
|

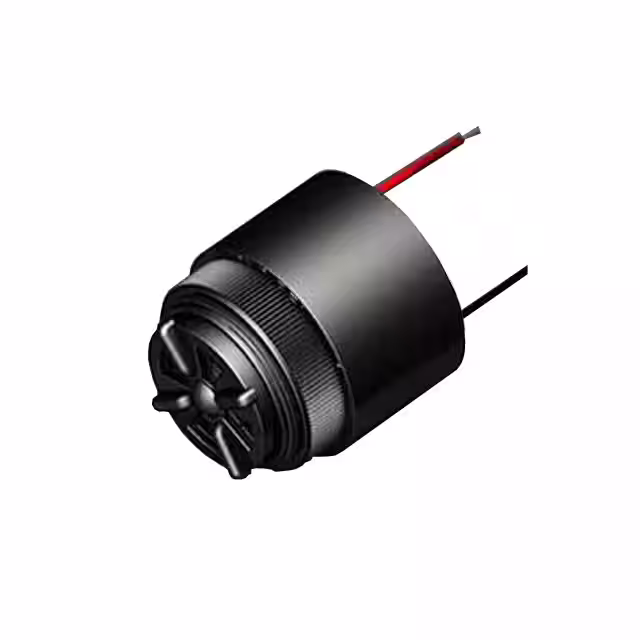

XC-V09-301-WBUZZER PIEZO 35.81MM PNL MNT |
1,000 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | AC | - | 130 ~ 220V | 2.9kHz | Piezo | Single Tone | - | 103dB @ 220V, 61cm | 30 ~ 50mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410" Dia (35.81mm) |
