Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AI-2604-TF-LW115-12V-RBUZZER MAGNETIC 12V 26MM FLANGE |
2,634 |
|
Datasheet |
AI | Tray | Obsolete | Indicator, Internally Driven | DC | 12 V | 8 ~ 16V | 400Hz | Electromechanical/Magnetic | Single Tone | - | 89dB @ 12V, 10cm | 50mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.024" Dia (26.00mm) |
|
|
AI-2828-TT-6V-RBUZZER MAGNETIC 6V 28MM TH |
4,824 |
|
- |
AI | Bulk | Obsolete | Indicator, Internally Driven | DC | 6 V | 4 ~ 9V | 2.8kHz | Electromechanical/Magnetic | Single Tone | - | 100dB @ 6V, 10cm | 35mA | Top | -20°C ~ 60°C | - | - | - | Through Hole | PC Pins | 1.102" Dia (28.00mm) |
|
|
AI-3622-P-S-12V-RBUZZER PIEZO 12V 36MM PNL MNT |
3,222 |
|
- |
AI | Bulk | Obsolete | Indicator, Internally Driven | DC | 12 V | 5 ~ 15V | 2.2kHz | Piezo | Siren | - | 105dB @ 12V, 10cm | 85mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.248" (6.30mm) | 1.417" Dia (36.00mm) |
|
|
AI-3622-P-S-28V-RBUZZER MAGNETIC 28V 36MM PNL MNT |
4,635 |
|
- |
AI | Bulk | Obsolete | Indicator, Internally Driven | DC | 28 V | 6 ~ 28V | 2.2kHz | Electromechanical/Magnetic | Single Tone | - | 105dB @ 28V, 10cm | 50mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.248" (6.30mm) | 1.417" Dia (36.00mm) |
|
|
AI-3622-P-S15-RBUZZER MAGNETIC 9V 36MM PNL MNT |
4,512 |
|
- |
AI | Bulk | Obsolete | Indicator, Internally Driven | DC | 9 V | 5 ~ 15V | 2.2kHz | Electromechanical/Magnetic | Single Tone | - | 105dB @ 9V, 10cm | 50mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.248" (6.30mm) | 1.417" Dia (36.00mm) |
|
|
AI-3629-P-30V-RBUZZER MAGNETIC 30V 36MM PNL MNT |
3,654 |
|
- |
AI | Bulk | Obsolete | Indicator, Internally Driven | DC | 30 V | 5 ~ 32V | 2.9kHz | Electromechanical/Magnetic | Single Tone | - | 100dB @ 30V, 10cm | 60mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.248" (6.30mm) | 1.417" Dia (36.00mm) |
|
|
AI-3629-P-FP-100V-RBUZZER MAGN 110V 36MM PNL MT |
3,735 |
|
Datasheet |
AI | Bulk | Obsolete | Indicator, Internally Driven | DC | 110 V | 25 ~ 130V | 2.9kHz | Electromechanical/Magnetic | Pulse, Fast | 3 PPS | 105dB @ 110V, 10cm | 60mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.248" (6.30mm) | 1.417" Dia (36.00mm) |
|
|
AI-3629-SF-LW307-RBUZZER MAGNETIC 48V FLANGE RA |
2,713 |
|
- |
AI | Bulk | Obsolete | Indicator, Internally Driven | DC | 48 V | 9 ~ 48V | 2.9kHz | Electromechanical/Magnetic | Single Tone | - | 88dB @ 48V, 10cm | 15mA | Side | -20°C ~ 65°C | - | - | - | Panel Mount, Flange, Right Angle | Wire Leads | 1.772" L x 1.429" W (45.00mm x 36.30mm) |
|
|
AI-4228-P-FP28-RBUZZER PIEZO 12V 42.5MM PNL MNT |
1,361 |
|
- |
AI | Bulk | Obsolete | Indicator, Internally Driven | AC, DC | 12 V | 6 ~ 28V | 2.8kHz | Piezo | Pulse, Fast | 3 PPS | 90dB @ 12V, 10cm | 10mA | Top | -30°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.673" Dia (42.50mm) |
|

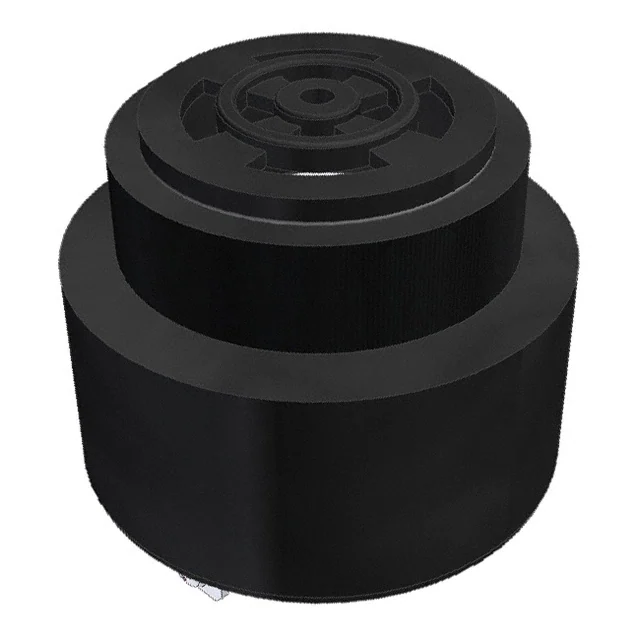

AI-4429-P-C12-RBUZZER PIEZO 12V 43.5MM PNL MNT |
1,665 |
|
- |
AI | Bulk | Discontinued at Digi-Key | Indicator, Internally Driven | DC | 12 V | 1 ~ 16V | 2.9kHz | Piezo | Single Tone | - | 105dB @ 12V, 10cm | 30mA | Top | -25°C ~ 75°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.713" Dia (43.50mm) |
|

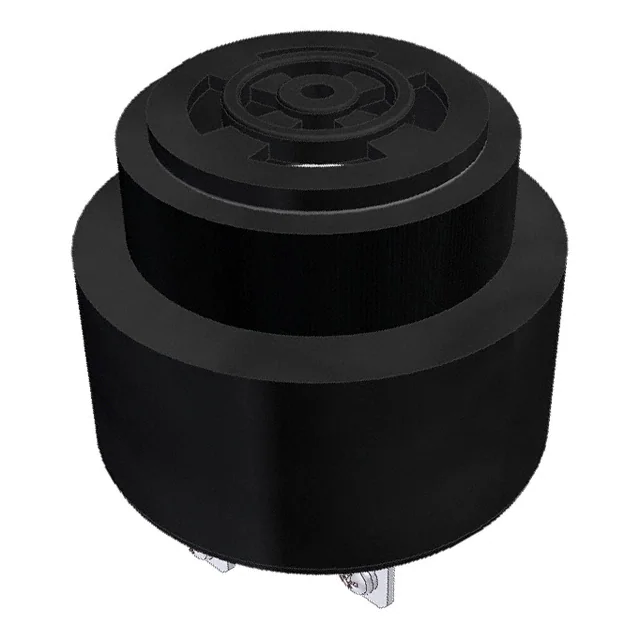

AI-4429-P-CP12-RBUZZER PIEZO 12V 43.5MM PNL MNT |
3,242 |
|
- |
AI | Bulk | Discontinued at Digi-Key | Indicator, Internally Driven | DC | 12 V | 4 ~ 16V | 2.9kHz | Piezo | Pin Selectable | Variable | 100dB @ 12V, 10cm | 20 ~ 25mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.713" Dia (43.50mm) |
|

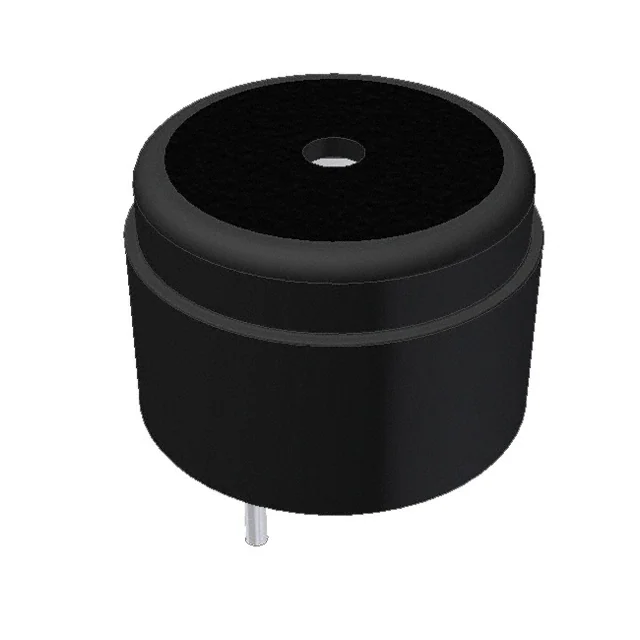

AT-1031-TT-RBUZZER MAGNETIC 1.5V 9.6MM TH |
2,216 |
|
Datasheet |
AT | Tray | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 1.5 V | 1 ~ 3V | 3.1kHz | Electromechanical/Magnetic | Single Tone | - | 85dB @ 1.5V, 10cm | 80mA | Top | -20°C ~ 85°C | - | - | - | Through Hole | PC Pins | 0.378" Dia (9.60mm) |
|
|
AT-1420-ST-2-RBUZZER MAGNETIC 1.5V 13.8X12 TH |
4,353 |
|
- |
AT | Tray | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 1.5 V | 1 ~ 3V | 2.048kHz | Electromechanical/Magnetic | Single Tone | - | 80dB @ 1.5V, 10cm | 30mA | Side | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.543" L x 0.472" W (13.80mm x 12.00mm) |
|

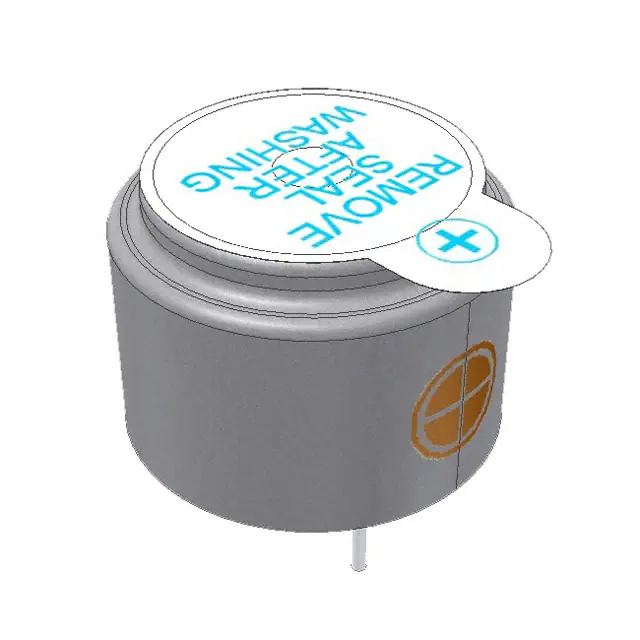

AT-1425-TWT-RBUZZER MAGNETIC 1.5V 14MM TH |
2,121 |
|
- |
AT | Tray | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 1.5 V | 1 ~ 3V | 2.5kHz | Electromechanical/Magnetic | Single Tone | - | 85dB @ 1.5V, 10cm | 30mA | Top | -20°C ~ 70°C | - | Washable | - | Through Hole | PC Pins | 0.551" Dia (14.00mm) |
|
|
AT-1438-TWT-2-RBUZZER PIEZO 5V 13.8MM TH |
4,544 |
|
- |
AT | Tray | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 1 ~ 20V | 3.8kHz | Piezo | Single Tone | - | 80dB @ 5V, 10cm | 1mA | Top | -30°C ~ 80°C | - | - | - | Through Hole | PC Pins | 0.543" Dia (13.80mm) |
|

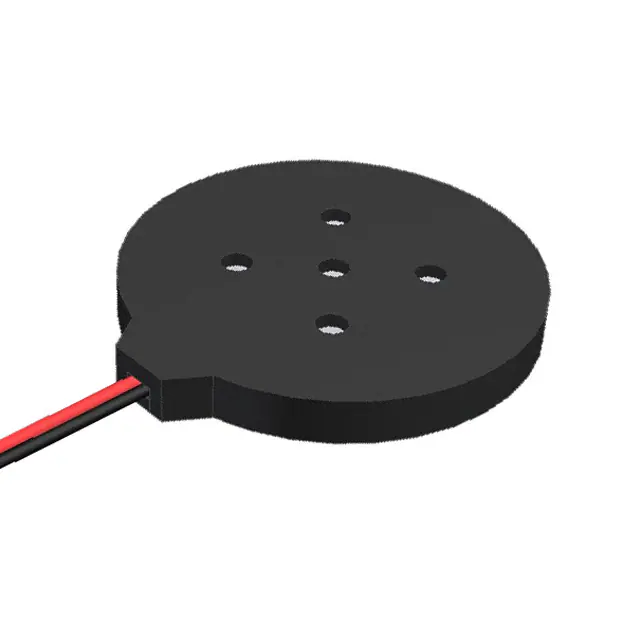

AT-1803-T-LW50-RBUZZER PIEZO 3V 17.7MM CUSTOM |
3,360 |
|
Datasheet |
AT | Bulk | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 1 ~ 10V | 2.5kHz | Piezo | Single Tone | - | 106dB @ 3V, 1cm | 3mA | Top | -20°C ~ 60°C | - | - | - | Custom | Wire Leads | 0.697" Dia (17.70mm) |
|
|
AT-2720-ST-RBUZZER PIEZO 3V 22X7MM W TH |
2,167 |
|
- |
AT | Tray | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 1 ~ 25V | 2kHz | Piezo | Single Tone | - | 70dB @ 3V, 10cm | 1mA | Side | -40°C ~ 125°C | - | - | - | Through Hole | PC Pins | 0.866" L x 0.276" W (22.00mm x 7.00mm) |
|

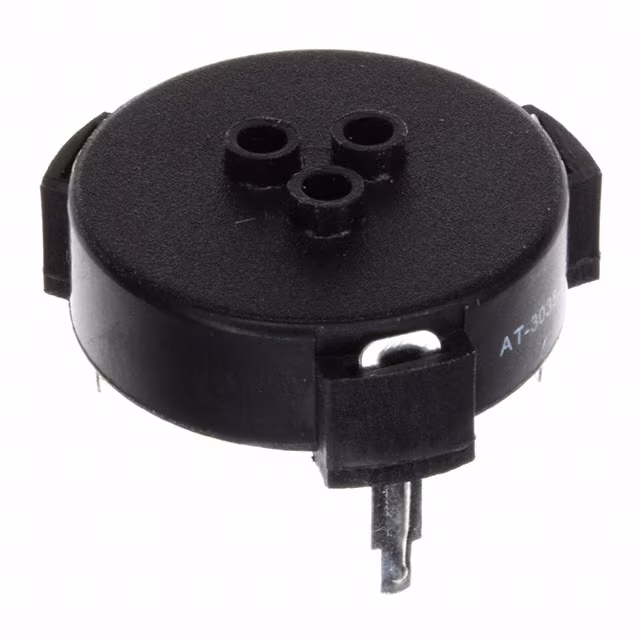

AT-3035-TT-RBUZZER PIEZO 12V 30MM TH |
3,755 |
|
- |
AT | Bulk | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 12 V | - | 3.5kHz | Piezo (with Feedback) | Single Tone | - | 75dB @ 12V, 10cm | 12mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 1.181" Dia (30.00mm) |
|

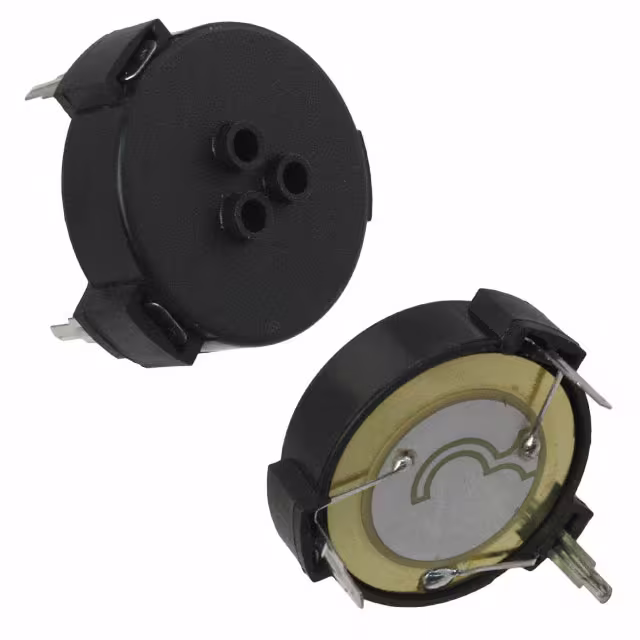

AT-3037-TT-RBUZZER PIEZO 12V 30MM TH |
3,277 |
|
- |
AT | Bulk | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 12 V | 3 ~ 18V | 3.7kHz | Piezo (with Feedback) | Single Tone | - | 90dB @ 12V, 10cm | 30mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 1.181" Dia (30.00mm) |
|
|
AT-4228-TF-LW145-RBUZZER PIEZO 5V 41.8MM FLANGE |
4,119 |
|
- |
AT | Tray | Obsolete | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 1 ~ 30V | 2.8kHz | Piezo | Single Tone | - | 95dB @ 5V, 10cm | 3mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.646" Dia (41.80mm) |
