Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

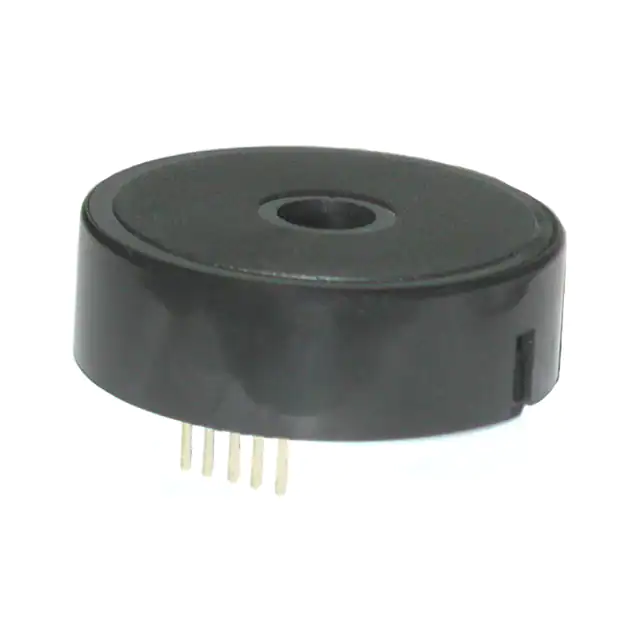

SBT5PHCMPPCBUZZER PIEZO 44.45MM TH |
1,149 |
|
Datasheet |
SBT | Bulk | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 3.3V, 10cm | 15 ~ 40mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) |
|
|
SBT5VHCFPPCBUZZER PIEZO 44.45MM TH |
4,023 |
|
Datasheet |
SBT | Bulk | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 3.3V, 10cm | 15 ~ 40mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) |
|
|
SBT5EMCSPPCBUZZER PIEZO 44.45MM TH |
3,665 |
|
Datasheet |
SBT | Bulk | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 3.3V, 10cm | 15 ~ 40mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) |
|
|
SBT5VHCMPPCBUZZER PIEZO 44.45MM TH |
1,260 |
|
Datasheet |
SBT | Bulk | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 3.3V, 10cm | 15 ~ 40mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) |
|
|
SBT5XHCMPPCBUZZER PIEZO 44.45MM TH |
2,304 |
|
Datasheet |
SBT | Bulk | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 3.3V, 10cm | 15 ~ 40mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) |
|
|
SBT5CHCFPPCBUZZER PIEZO 44.45MM TH |
2,739 |
|
Datasheet |
SBT | Bulk | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 3.3V, 10cm | 15 ~ 40mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) |
|
|
SBT5CMCSPPCBUZZER PIEZO 44.45MM TH |
1,786 |
|
Datasheet |
SBT | Bulk | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 3.3V, 10cm | 15 ~ 40mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) |
|
|
SBT5VMCSPPCBUZZER PIEZO 44.45MM TH |
3,713 |
|
Datasheet |
SBT | Bulk | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 3.3V, 10cm | 15 ~ 40mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) |
|
|
SBT5VHCSPPCBUZZER PIEZO 44.45MM TH |
4,207 |
|
Datasheet |
SBT | Bulk | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 3.3V, 10cm | 15 ~ 40mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) |
|
|
SBT5GLCSPPCBUZZER PIEZO 44.45MM TH |
4,898 |
|
Datasheet |
SBT | Bulk | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 3.3V, 10cm | 15 ~ 40mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) |
|
|
SBT5CHCMPPCBUZZER PIEZO 44.45MM TH |
2,871 |
|
Datasheet |
SBT | Bulk | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 3.3V, 10cm | 15 ~ 40mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) |
|
|
SBT5THCSPPCBUZZER PIEZO 44.45MM TH |
2,658 |
|
Datasheet |
SBT | Bulk | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 3.3V, 10cm | 15 ~ 40mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) |
|
|
SBT5GHCFPPCBUZZER PIEZO 44.45MM TH |
3,679 |
|
Datasheet |
SBT | Bulk | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 3.3V, 10cm | 15 ~ 40mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) |
|
SC110CPBUZZER PIEZO 42.85MM PNL MNT |
1,422 |
|
Datasheet |
SC | Bulk | Obsolete | Indicator, Internally Driven | AC | - | 30 ~ 120V | 2.9kHz | Piezo | Chime | 0.3 ~ 2 PPS | 68dB @ 30V, 61cm | 6 ~ 22mA | Top | -30°C ~ 65°C | cUL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
SC628JU-1RBUZZER PIEZO 42.98MM PNL MNT |
3,075 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pin Selectable | 0.5 ~ 2.5 PPS | 68dB @ 6V, 61cm | 3 ~ 27mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|

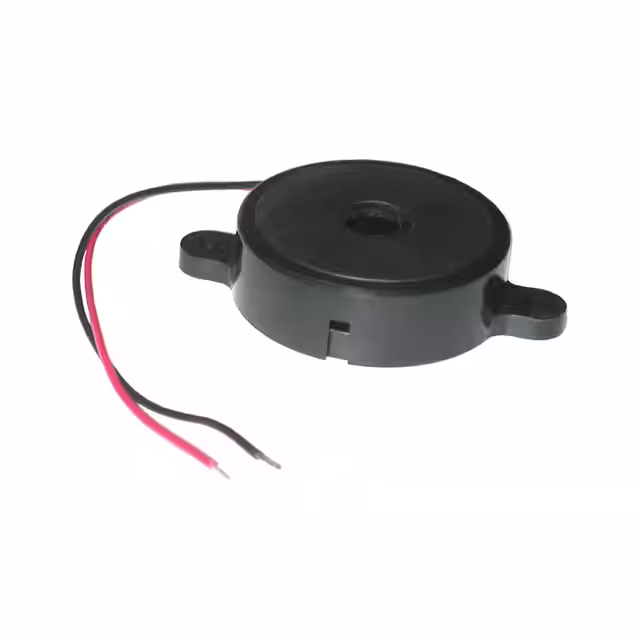

SBS12CMFLBUZZER MAGNETIC 44.45MM FLANGE |
2,109 |
|
Datasheet |
SBS | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Pulse, Medium | Repeating every 7.5 Sec | 95dB @ 9V, 10cm | 300mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Panel Mount, Flange | Wire Leads | 1.750" Dia (44.45mm) |
|
|
SBS12EHFLBUZZER MAGNETIC 44.45MM FLANGE |
4,319 |
|
Datasheet |
SBS | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Pulse, Fast | Repeating every 2.5 Sec | 95dB @ 9V, 10cm | 300mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Panel Mount, Flange | Wire Leads | 1.750" Dia (44.45mm) |
|
|
SBS12EMFLBUZZER MAGNETIC 44.45MM FLANGE |
2,267 |
|
Datasheet |
SBS | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Pulse, Medium | Repeating every 7.5 Sec | 95dB @ 9V, 10cm | 300mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Panel Mount, Flange | Wire Leads | 1.750" Dia (44.45mm) |
|
|
SBS12XMFLBUZZER MAGNETIC 44.45MM FLANGE |
1,380 |
|
Datasheet |
SBS | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Pulse, Medium | Repeating every 7.5 Sec | 95dB @ 9V, 10cm | 300mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Panel Mount, Flange | Wire Leads | 1.750" Dia (44.45mm) |
|
|
SBS12TMFLBUZZER MAGNETIC 44.45MM FLANGE |
3,100 |
|
Datasheet |
SBS | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Pulse, Medium | Repeating every 7.5 Sec | 95dB @ 9V, 10cm | 300mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Panel Mount, Flange | Wire Leads | 1.750" Dia (44.45mm) |
