Luminus Devices Inc. SBM-40-RGBW-SC41-QD100
- Part No.:
- SBM-40-RGBW-SC41-QD100
- Manufacturer:
- Luminus Devices Inc.
- Category:
- LED Color Lighting
- Package:
- 2318 (5847 Metric)
- Datasheet:
-
SBM-40-RGBW-SC41-QD100.pdf
- Description:
- LED SBM40 RGBW 623/525/454 8SMD
- Quantity:
- Payment:

- Shipping:

Inventory:805
Please send an inquiry. Send us your inquiry, and we will respond immediately.
- Specifications
- FAQ
- Product Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Luminus Devices Inc.
- Series:
- SBM-40-SC
- Package/Case:
- 2318 (5847 Metric)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Color:
- Red, Green, Blue, White (RGBW)
- Wavelength:
- 623nm Red, 525nm Green, 454nm Blue
- Current - Test:
- 1A
- Voltage - Forward (Vf) (Typ):
- 2.95V Red, 3.45V Green, 3.45V Blue, 3.45V White
- Lumens/Watt @ Current - Test:
- 39 lm/W Red, 72 lm/W Green, 80 lm/W White
- Current - Max:
- 2A Red, 2A Green, 2A Blue, 2A White
- Luminous Flux @ Current/Temperature:
- 115lm Red, 248lm Green, 1200mW Blue, 278lm White
- Temperature - Test:
- 25°C
- Viewing Angle:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 8-SMD
- Size / Dimension:
- 0.226" L x 0.184" W (5.75mm x 4.68mm)
- Height - Seated (Max):
- 0.051" (1.30mm)
1. How to order SBM-40-RGBW-SC41-QD100 on SANJIA TECHNOLOGY LTD.?
Currently, SANJIA TECHNOLOGY LTD. only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.
2. How does SANJIA TECHNOLOGY LTD. guarantee that SBM-40-RGBW-SC41-QD100 is from the original manufacturer or authorized agents?
We have a professional and experienced quality control team to strictly verify and test the SBM-40-RGBW-SC41-QD100. All suppliers must pass our qualification reviews before they can publish their products including SBM-40-RGBW-SC41-QD100 on SANJIA TECHNOLOGY LTD.; we pay more attention to the channels and quality of SBM-40-RGBW-SC41-QD100 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.
3. Are the SBM-40-RGBW-SC41-QD100 price and inventory displayed accurate?
The price and inventory of SBM-40-RGBW-SC41-QD100 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.
4. What forms of payment are accepted?
Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.
Warm Tips: Some orders in certain payment forms may require handling fee.
5. How is the shipping arranged?
Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.
Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.
Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.
6. What is the process for return or replacement of SBM-40-RGBW-SC41-QD100?
All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the SBM-40-RGBW-SC41-QD100 we delivered, we will accept the replacement or return of the SBM-40-RGBW-SC41-QD100 only when all of the below conditions are fulfilled:
(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.
(2)We are informed of the defect described above within 90 days after the delivery of SBM-40-RGBW-SC41-QD100.
(3)The PartNo is unused and only in the original unpacked packaging.
Two processes to return the products:
(1)Inform us within 90 days
(2)Obtain Requesting Return Authorizations
7.How to contact us to get technical supports, such as SBM-40-RGBW-SC41-QD100 pin diagram, SBM-40-RGBW-SC41-QD100 datasheet?
If you need any after-sales service, please do not hesitate to contact us.

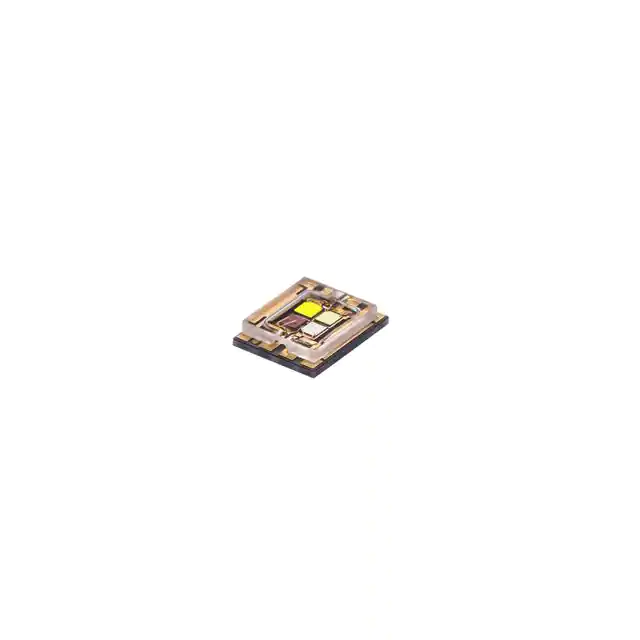

| Image | ![]() |
![]() |
![]() |
![]() |
![]() |
| Part Number | SBM-40-RGBW-SC41-QD100 | SBM-40-RGBW-LC41-QC100 | SBM-40-RGBL-HC41-QG100 | SBM-40-RGBW-P41-QC100 | SBM-40-RGBW-HC41-QE100 |
| Manufacturer | Luminus Devices Inc. | Luminus Devices Inc. | Luminus Devices Inc. | Luminus Devices Inc. | Luminus Devices Inc. |
| Series | SBM-40-SC | SBM-40-LC | - | SBM-40-LC | SBM-40-HC |
| Package/Case | 2318 (5847 Metric) | 2318 (5847 Metric) | 2318 (5847 Metric) | 2318 (5847 Metric) | 2318 (5847 Metric) |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Discontinued at Digi-Key | Active | Active |
| Color | Red, Green, Blue, White (RGBW) | Red, Green, Blue, White (RGBW) | Blue, Green, Lime, Red | Red, Green, Blue, White (RGBW) | Red, Green, Blue (RGB) |
| Wavelength | 623nm Red, 525nm Green, 454nm Blue | 622nm Red, 527nm Green, 455nm Blue | 454nm Blue, 525nm Green, 622nm Red | 622nm Red, 527nm Green, 455nm Blue | 624nm Red, 525nm Green, 454nm Blue |
| Current - Test | 1A | 700mA Red, 700mA Green, 700mA Blue, 700mA White | 1A | 700mA Red, 700mA Green, 700mA Blue | 1A Red, 1A Green, 1A Blue, 1A White |
| Voltage - Forward (Vf) (Typ) | 2.95V Red, 3.45V Green, 3.45V Blue, 3.45V White | 2.3V Red, 3.2V Green, 3.2V Blue, 3.2V White | 3V Blue, 3V Green, 3V Lime, 2.2V Red | 2.3V Red, 3.2V Green, 3.2V Blue, 3.2V White | 2.5V Red, 3.2V Green, 3.05V Blue, 3.05V White |
| Lumens/Watt @ Current - Test | 39 lm/W Red, 72 lm/W Green, 80 lm/W White | 42 lm/W Red, 75 lm/W Green, 182 lm/W White | 90 lm/W Green, 143 lm/W Lime, 59 lm/W Red | 109 lm/W Red, 53 lm/W Green, 81 lm/W White | 43 lm/W Red, 91 lm/W Green, 105 lm/W White |
| Current - Max | 2A Red, 2A Green, 2A Blue, 2A White | 1A Red, 1A Green, 1A Blue, 1A White | 3A Blue, 3A Green, 3A Lime, 3A Red | 1A Red, 1A Green, 1A Blue | 3A Red, 4A Green, 4A Blue, 4A White |
| Luminous Flux @ Current/Temperature | 115lm Red, 248lm Green, 1200mW Blue, 278lm White | 68lm Red, 168lm Green, 865mW Blue, 182lm White | 1350mW Blue, 270lm Green, 430lm Lime, 130lm Red | 68lm Red, 168lm Green, 765mW Blue, 182lm White | 138lm Red, 290lm Green, 1450lm Blue, 320lm White |
| Temperature - Test | 25°C | 25°C | 25°C | 25°C | - |
| Viewing Angle | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-SMD | 2318 | 2318 | SMD | 2318 |
| Size / Dimension | 0.226" L x 0.184" W (5.75mm x 4.68mm) | 0.226" L x 0.184" W (5.75mm x 4.68mm) | 0.226" L x 0.184" W (5.75mm x 4.68mm) | 0.226" L x 0.184" W (5.75mm x 4.68mm) | 0.226" L x 0.184" W (5.75mm x 4.68mm) |
| Height - Seated (Max) | 0.051" (1.30mm) | 0.052" (1.31mm) | 0.051" (1.30mm) | 0.050" (1.26mm) | 0.052" (1.31mm) |

-
