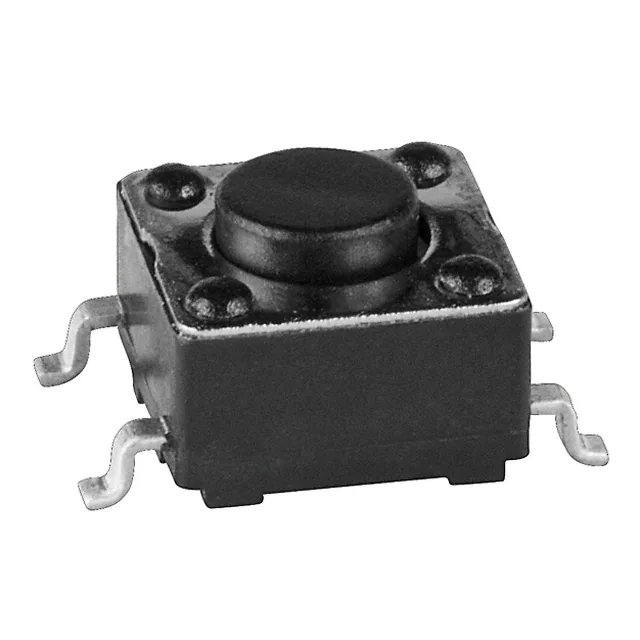

NKK Switches HP0315AFKP2-R
- Part No.:
- HP0315AFKP2-R
- Manufacturer:
- NKK Switches
- Category:
- Tactile Switches
- Package:
- Datasheet:
-
HP0315AFKP2-R.pdf
- Description:
- SWITCH TACTILE SPST-NO 3VA 28V
- Quantity:
- Payment:

- Shipping:

Inventory:12,453
Please send an inquiry. Send us your inquiry, and we will respond immediately.
- Specifications
- FAQ
- Product Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- NKK Switches
- Series:
- HP03
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Circuit:
- SPST-NO
- Switch Function:
- Off-Mom
- Contact Rating @ Voltage:
- 3VA @ 28VDC
- Actuator Type:
- Standard
- Mounting Type:
- Surface Mount
- Actuator Height off PCB, Vertical:
- 4.40mm
- Actuator Length, Right Angle:
- -
- Actuator Orientation:
- Top Actuated
- Termination Style:
- Gull Wing
- Outline:
- 6.20mm x 6.20mm
- Illumination:
- Non-Illuminated
- Illumination Type, Color:
- -
- Illumination Voltage (Nominal):
- -
- Operating Force:
- 160gf
- Ingress Protection:
- -
- Features:
- Sealed - Flux Protection
- Operating Temperature:
- -20°C ~ 70°C
