Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-06-D-09.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,347 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.750' (228.60mm, 9.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-06.00-01-N-SR2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,948 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-06.00-01-SR2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,702 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-11-D-09.33-01-F-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,665 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 22 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.778' (236.98mm, 9.33") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-08-S-40.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
3,220 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-13-T-04.00-01-N-SR2MM DOUBLE ROW MALE IDC ASSEMBLY |
3,105 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 26 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
IDMD-13-T-02.50-RSLIM BODY DOUBLE-ROW IDC MALE AS |
4,866 |
|
Datasheet |
IDMD | Bulk | Active | Socket to Plug, Reversed | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-13-T-04.00-01-SR2.00 MM IDC RIBBON CABLE ASSEMBL |
2,014 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 26 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
0369232603IGRID 26 CIRCUIT 300MM |
2,474 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
33152441500250HAR-FLEX 68POLE,DUL-END,W/O SR,L |
1,330 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A3DDG-2418GIDC CABLE-AKR24G/ AE24G / AKR24G |
2,226 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

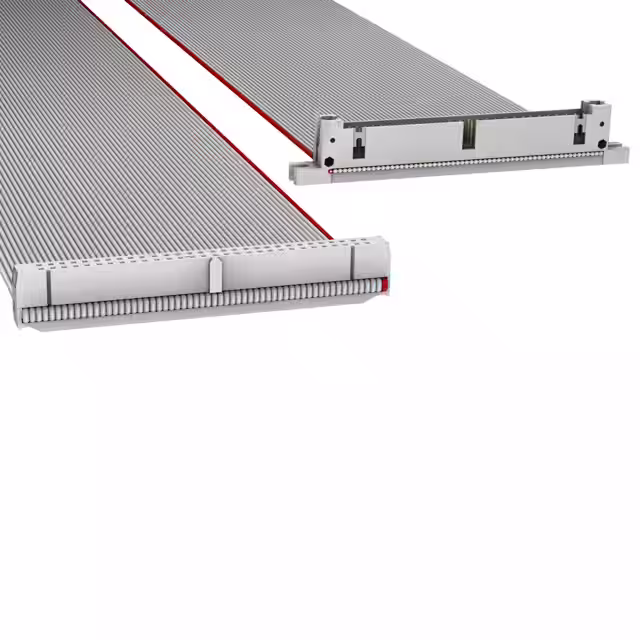

H3DWH-6036GIDC CBL - HHKR60H/AE60G/HHPL60H |
2,141 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 60 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief (Socket); Flange, Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-08-D-03.15-012MM DOUBLE ROW FEMALE IDC ASSEMB |
3,030 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.263' (80.01mm, 3.15") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-08-D-03.15-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,724 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.263' (80.01mm, 3.15") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-10-D-08.00-01-L-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,532 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.667' (203.20mm, 8.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCSD-13-S-20.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,490 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 26 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.67' (508.00mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-13-S-20.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,852 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 26 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.67' (508.00mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-13-S-20.00-01-F-N-RW2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,793 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 26 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.67' (508.00mm) | Polarizing Key, Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
SFSD-25-28-G-03.25-SR.050 SOCKET DISCRETE CABLE ASSEM |
1,410 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Individual Wire Leads | 50 | 2 | 0.050" (1.27mm) | - | 0.271' (82.55mm, 3.25") | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCMD-08-T-18.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
3,672 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
