Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
08-006-156CABLE 8POS .100 JUMPER 6 INCH |
2,714 |
|
Datasheet |
156 | Bulk | Active | Plug to Cable | 8 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | - | Solder | Gold | 10.0µin (0.25µm) |
|
M3CCA-4036JIDC CABLE - MKC40A/MC40G/MKC40A |
3,689 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3DDA-3036JIDC CABLE - MKR30A/MC34G/MKR30A |
1,303 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

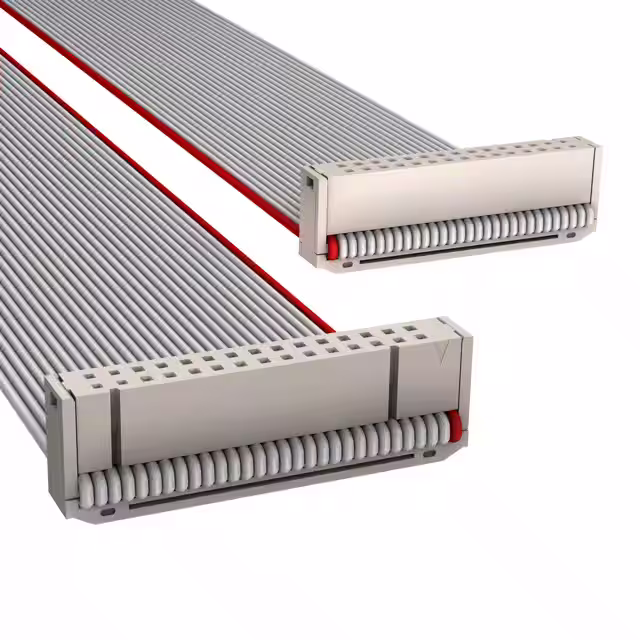

M3BBA-3036JIDC CABLE - MSR30A/MC34G/MSR30A |
2,449 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3BBK-1006JIDC CABLE - MSR10K/MC10G/MSR10K |
3,338 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3DDK-1006JIDC CABLE - MKR10K/MC10G/MKR10K |
4,343 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
H3DKH-6018MIDC CBL - HHKR60H/AE60M/HHPK60H |
2,700 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 60 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief (Socket); Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

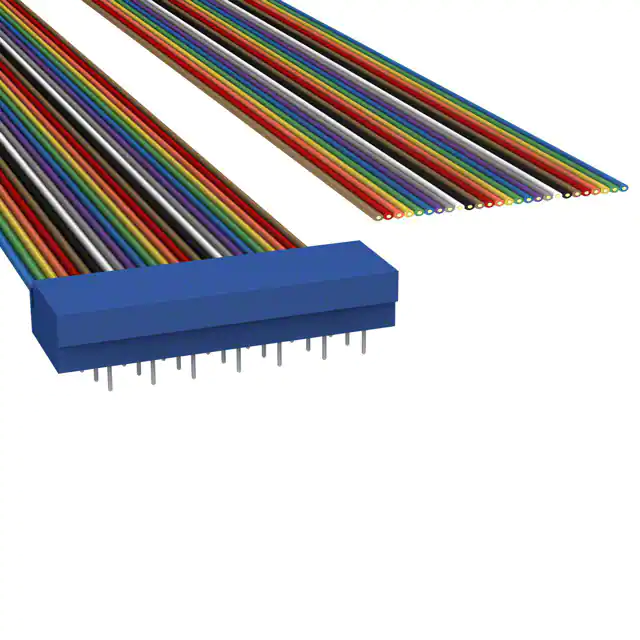

C1PXS-2636MIDC CABLE - CPC26S/AE26M/X |
3,474 |
|
Datasheet |
- | Bulk | Active | PCB to Cable | 26 | 4 | 0.050" (1.27mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Board In | IDC | Tin-Lead | 100.0µin (2.54µm) |
|
|
TCSD-05-D-10.50-012MM DOUBLE ROW FEMALE IDC ASSEMB |
4,270 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.875' (266.70mm, 10.50") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-10.50-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,929 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.875' (266.70mm, 10.50") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-24.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,837 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 2.00' (609.60mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-05-D-24.00-01-F-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,396 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 2.00' (609.60mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-20-S-15.00-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,472 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 40 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.25' (381.00mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-08-D-02.00-01-N-P162MM DOUBLE ROW FEMALE IDC ASSEMB |
1,170 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-17-D-02.30-01-F-NIDC SOCKET CABLE ASSEMBLIES, 2.0 |
4,435 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 34 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.192' (58.42mm, 2.30") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-17-D-04.75-012.00 MM IDC RIBBON CABLE ASSEMBL |
1,664 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 34 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCSD-04-D-10.00-01-N-SRIDC SOCKET CABLE ASSEMBLIES, 2.0 |
2,017 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.833' (254.00mm, 10.00") | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-04-D-10.00-01-SRIDC SOCKET CABLE ASSEMBLIES, 2.0 |
4,093 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.833' (254.00mm, 10.00") | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3AAA-1460KIDC CABLE - MSC14A/MC14F/MSC14A |
1,414 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 5.00' (1.52m) | - | Multiple, Twisted Pair (Flat) | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3CCA-1460KIDC CABLE - MKC14A/MC14F/MKC14A |
1,791 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 5.00' (1.52m) | Polarizing Key | Multiple, Twisted Pair (Flat) | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
