Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-18-S-06.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,606 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 36 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
0511100850-30-A-6-Z8 CIRC CABLE ASSY 30" Z |
1,966 |
|
Datasheet |
Milli-Grid 51110 | Bulk | Active | Socket to Socket | 8 | 2 | 0.079" (2.00mm) | - | 2.50' (762.00mm) | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 15.0µin (0.38µm) |
|
|
TFSD-05-28-F-13.50-D-NUX.050" TIGER EYE DOUBLE ROW DISCR |
4,010 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Plug | 10 | 2 | 0.050" (1.27mm) | - | 1.12' (342.90mm) | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
TCSD-07-D-01.00-01-NIDC SOCKET CABLE ASSEMBLIES, 2.0 |
1,152 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.083' (25.40mm, 1.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-07-D-01.00-01IDC SOCKET CABLE ASSEMBLIES, 2.0 |
4,731 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.083' (25.40mm, 1.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-04-D-09.00-01-N-RWIDC SOCKET CABLE ASSEMBLIES, 2.0 |
3,199 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.750' (228.60mm, 9.00") | Polarizing Key, Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-11-D-06.00-01-F-NIDC SOCKET CABLE ASSEMBLIES, 2.0 |
4,805 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 22 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
C1BXG-1636GIDC CABLE - CSR16G/AE16G/X |
1,427 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
A3CCG-2006MIDC CABLE- AKC20G/ AE20M / AKC20 |
3,723 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
M3BBA-2036RIDC CABLE - MSR20A/MC20M/MSR20A |
1,331 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

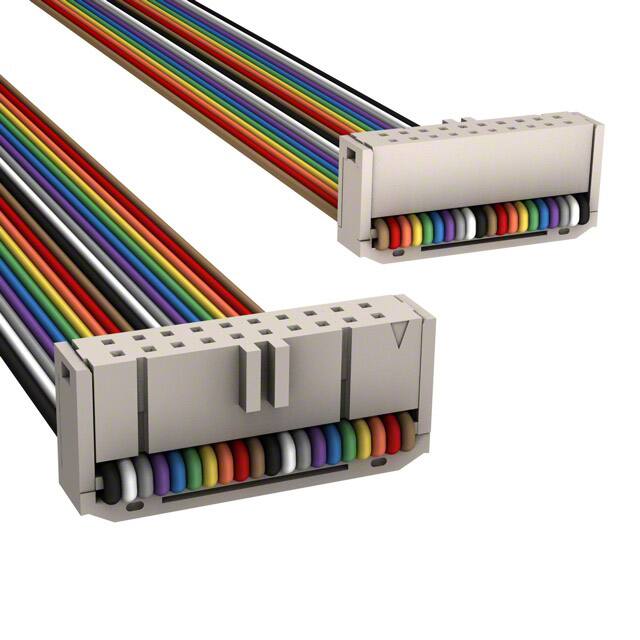

M3DDA-2036RIDC CABLE - MKR20A/MC20M/MKR20A |
2,489 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

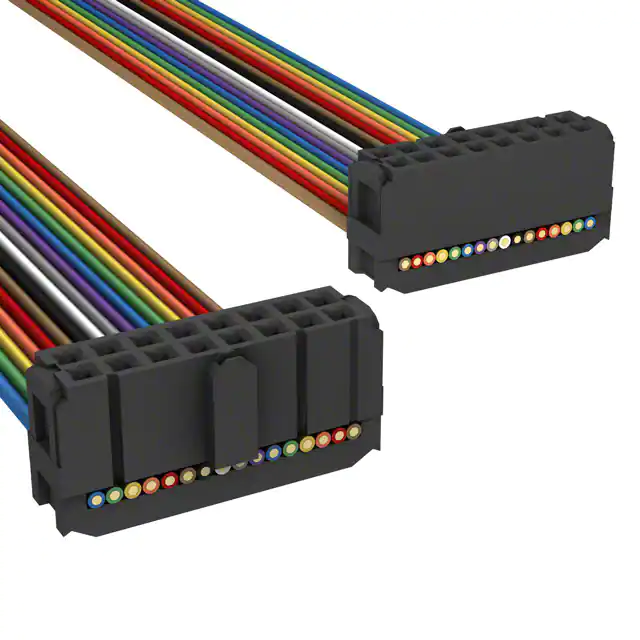

A3CCH-1636MIDC CABLE - AKC16H/AE16M/AKC16H |
3,453 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-05-D-04.84-01-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,798 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.403' (122.94mm, 4.84") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-12-D-05.50-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,633 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 24 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.458' (139.70mm, 5.50") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-12-D-05.50-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,769 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 24 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.458' (139.70mm, 5.50") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-12-D-05.50-01-F-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,946 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 24 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.458' (139.70mm, 5.50") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-12-D-05.50-01-F-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,426 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 24 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.458' (139.70mm, 5.50") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-20-S-11.81-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,293 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 40 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.984' (300.00mm, 11.81") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCMD-10-T-10.00-01-P01-R2MM DOUBLE ROW MALE IDC ASSEMBLY |
2,185 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug, Reversed | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-06-S-36.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
1,048 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
