Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-20-S-04.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
3,308 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 40 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.333' (101.60mm, 4.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-20-S-04.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,999 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 40 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.333' (101.60mm, 4.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCMD-08-D-17.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
4,074 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-13-T-03.20-01-N2MM DOUBLE ROW MALE IDC ASSEMBLY |
2,370 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 26 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-15-T-03.50-01-RF-N2MM DOUBLE ROW MALE IDC ASSEMBLY |
2,631 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TFSST-15-28-G-06.00-S.050" TIGER EYE SINGLE ROW DISCR |
1,047 |
|
Datasheet |
Tiger Eye™ TFSST | Bulk | Active | Plug to Individual Wire Leads | 15 | 1 | 0.050" (1.27mm) | - | 0.500' (152.40mm, 6.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
IDMD-13-S-06.50SLIM BODY DOUBLE-ROW IDC MALE AS |
4,340 |
|
Datasheet |
IDMD | Bulk | Active | Plug to Cable | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
FFSD-03-D-02.60-01-R.050" LOW PROFILE TIGER EYE IDC |
1,562 |
|
Datasheet |
Tiger Eye™ FFSD | Bulk | Active | Socket to Socket, Reversed | 6 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 0.217' (66.04mm, 2.60") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
SMSD-05-26-L-18.00-D-K-KDX.100" MINI MATE UNIVERSAL DOUBLE |
1,789 |
|
Datasheet |
Mini Mate® SMSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
FFMD-15-T-10.00-01-L-N.050 CABLE PLUG |
3,259 |
|
- |
Tiger Eye™ FFMD | Bulk | Active | Socket to Plug | 30 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 0.833' (254.00mm, 10.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
A3CCG-2018GIDC CABLE-AKC20G/ AE20G / AKC20G |
1,929 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
A1AXA-3036MIDC CABLE- ASN30A/ AE34M / X |
2,868 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Cable | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
A3BBG-3018GIDC CABLE-ASR30G/ AE34G / ASR30G |
3,553 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCMD-08-T-12.00-01-NCABLE ASSEM 2MM 16POS M-F 12" |
4,164 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.00' (304.80mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
C3AES-1036MIDC CABLE - CSC10S/AE10M/CCE10S |
1,160 |
|
Datasheet |
- | Bulk | Active | Socket to Card Edge | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | 100.0µin (2.54µm) |
|
C3CES-1036MIDC CABLE - CKC10S/AE10M/CCE10S |
4,310 |
|
Datasheet |
- | Bulk | Active | Socket to Card Edge | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | Board In | IDC | Tin | 100.0µin (2.54µm) |
|

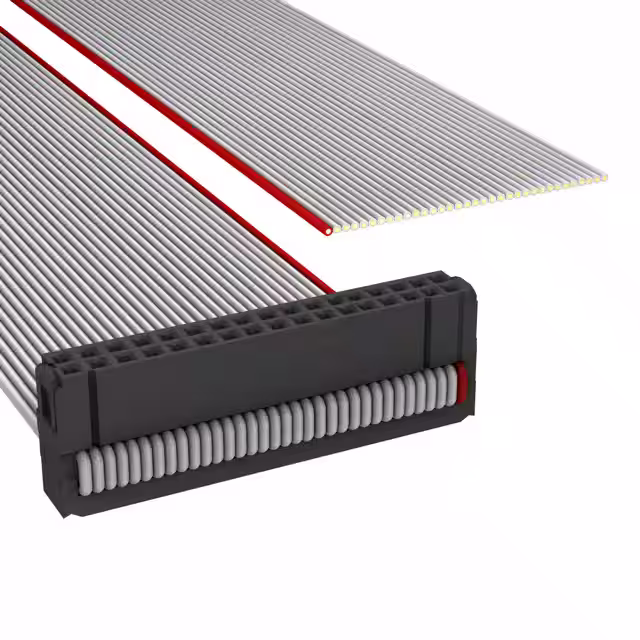

A1BXB-3436GIDC CABLE- ASR34B/AE34G/X |
1,067 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-04.70-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,409 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.392' (119.38mm, 4.70") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-04.72-012MM DOUBLE ROW FEMALE IDC ASSEMB |
4,845 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.393' (120.00mm, 4.72") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-04.72-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,995 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.393' (120.00mm, 4.72") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
