Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-05-D-02.60-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,639 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.217' (66.04mm, 2.60") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-05-D-16.50-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,952 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.38' (421.60mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-05-D-16.50-01-F-N-R2MM DOUBLE ROW FEMALE IDC ASSEMB |
1,844 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.38' (421.60mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-05-S-31.50-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,366 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 2.62' (800.10mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-20-S-10.00-01-F-N-P012MM DOUBLE ROW FEMALE IDC ASSEMB |
2,296 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 40 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.833' (254.00mm, 10.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-10-D-05.00-01-F-N-SR2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,383 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.417' (127.00mm, 5.00") | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-07-D-05.75-01-L-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,026 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.479' (146.05mm, 5.75") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-15-D-03.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
3,983 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TFSDT-04-28-H-13.00-S.050" TIGER EYE DOUBLE ROW DISCR |
4,839 |
|
Datasheet |
Tiger Eye™ TFSDT | Bulk | Active | Plug to Individual Wire Leads | 8 | 2 | 0.050" (1.27mm) | - | 1.08' (330.20mm) | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
SFSD-10-28-G-07.87-DR-NUXDOUBLE ROW DISCRETE WIRE ASSEMBL |
3,247 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.050" (1.27mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TFSD-10-28-G-03.01-S.050" TIGER EYE DOUBLE ROW DISCR |
4,718 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Individual Wire Leads | 20 | 2 | 0.050" (1.27mm) | - | 0.251' (76.45mm, 3.01") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
MMTD-05-24C-L-40.00-S.100" MINI MATE DOUBLE ROW DISCR |
4,848 |
|
Datasheet |
Mini Mate® MMTD | Bulk | Active | Plug to Plug | 10 | 2 | 0.100" (2.54mm) | - | - | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCSD-07-D-14.00-01-F-N-RIDC SOCKET CABLE ASSEMBLIES, 2.0 |
1,088 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket, Reversed | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.17' (355.62mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-11-D-02.00-01-F-SRIDC SOCKET CABLE ASSEMBLIES, 2.0 |
1,897 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 22 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TFSD-06-28-H-07.00-S.050" TIGER EYE DOUBLE ROW DISCR |
1,221 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Individual Wire Leads | 12 | 2 | 0.050" (1.27mm) | - | 0.583' (177.80mm, 7.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|

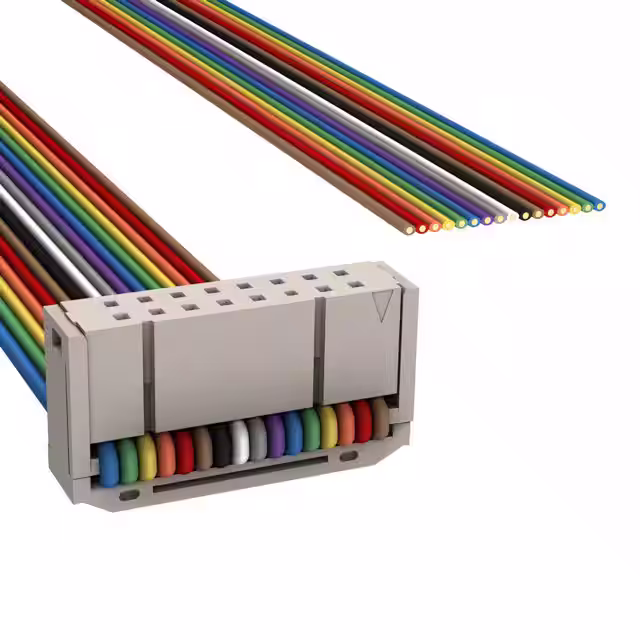

M1BXA-1636RIDC CABLE - MSR16A/MC16M/X |
3,414 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCMD-13-T-02.00-01-NCABLE ASSEM 2MM 26POS M-F 2" |
4,406 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Socket to Plug | 26 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
C2RXS-4006GDIP CABLE - CDR40S/AE40G/X |
2,790 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Gray, Ribbon | Unshielded | Socket (0.6"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|
|
C4RXS-4006GDIP CABLE - CDR40S/AE40G/X |
3,732 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Gray, Ribbon | Unshielded | Socket (0.6"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|
C3BBS-1606MIDC CABLE - CSR16S/AE16M/CSR16S |
1,292 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Tin | 100.0µin (2.54µm) |
